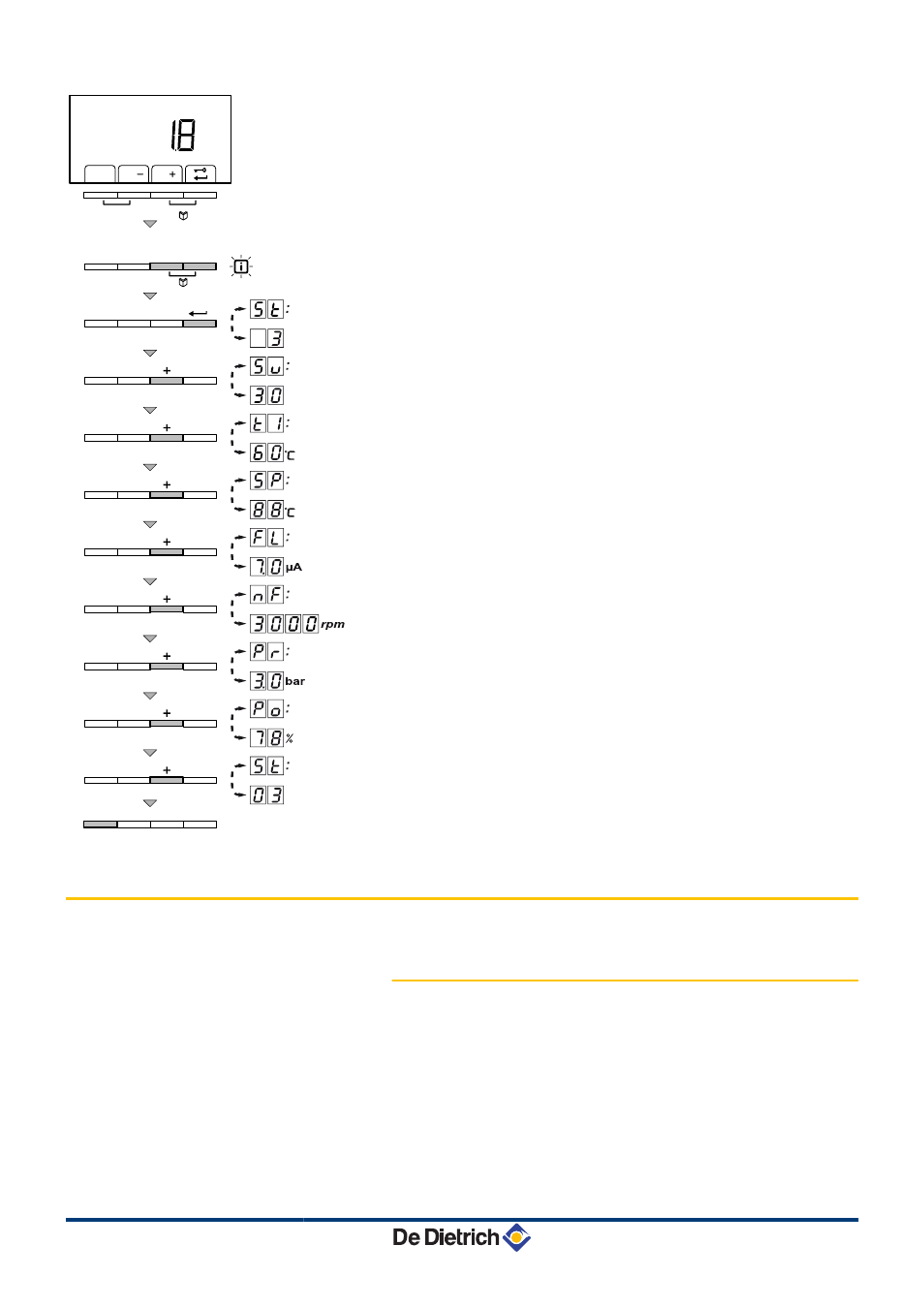

The current values can be read as follows:
1. Press the two f keys simultaneously. The symbol Q flashes.
2. Confirm using key S. 5t is displayed, alternating with the
current status 3 (for example).
3. Press the [+] key. 5v is displayed, alternating with the current
sub-status 30 (for example).
4. Press the [+] key. t1 is displayed, alternating with the current
flow temperature 60°C (for example).
5. Press the [+] key successively to scroll down the various
parameters. t", t3, t4, t5, t6.
6. Press the [+] key. 5p is displayed, alternating with the internal
set point 88°C (for example).
7. Press the [+] key. fl is displayed, alternating with the current
ionization current 70 µA (for example).
8. Press the [+] key. Mf is displayed, alternating with the current
fan rotation speed 3000 rpm (for example).
9. Press the [+] key. pr is displayed, alternating with the current
water pressure #0 bar (for example). If no water pressure sensor
is connected, [-.-] appears on the display.
10.Press the [+] key. p; is displayed, alternating with the current
modulation percentage 78 % (for example).
11.Press the [+] key. The readout cycle starts again with 5t.
12.Press the j key 2 times to return to the current operating mode.
4.3 Changing the settings
4.3.1. Parameter descriptions
M
"
bar
C0
030
49-
A
4x
2x
