5
02/10/07 - 300015183-001-A C 310 ECO - C 610 ECO

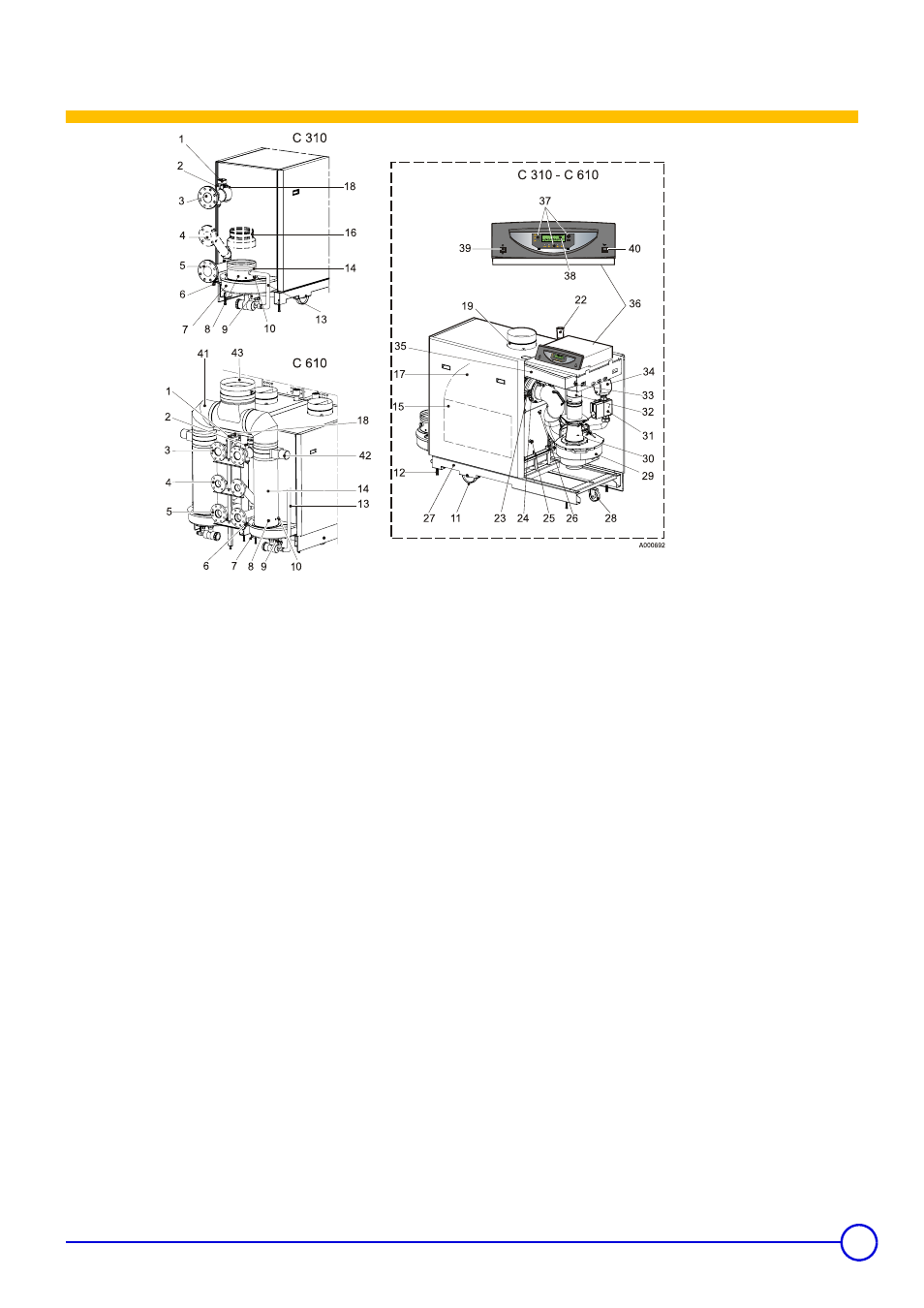

3 Description
The front of the boiler (with the inspection hatch for the heat
exchanger) is the side from which it is serviced.
1. Pressure gauge
2. Sensor tube for outlet temperature sensor
3. Flow connection
4. Connection for second return (optional)
5. Return connection
6. Filling and emptying tap
7. Condensates collector
8. Combusted gas temperature sensor
9. Condensates discharge
10. Measurement point O
2
/CO
2
11. Wheel
12. Setting bolt
13. Condensates evacuation pipe
14. Flue gas discharge duct
15. Inspection hatch
16. Reduction sleeve Ш250/Ш200 (Option)
17. Heat exchanger
18. Output sensor
19. Air intake
22. Gas connection
23. Flame inspection window
24. Ignition/ionisation electrode
25. Return sensor
26. Heating body sensor
27. Base frame
28. Pivoting castor
29. Fan
30. Venturi
31. Multivalve gas unit
32. Non-return valve
33. Differential air pressure switch
34. Gas filter
35. Air chamber
36. Control panel
37. Adjustment keys
38. Display screen
39. General ON 8 / OFF 7 switch
40. Button
41. Combusted gas flue
42. Combusted gas valve
43. Combusted gas discharge connection with an integrated
condensates collection device
