MX370103A CDMA2000 1xEV-DO IQproducer
■
Parameter save/recall:
The numeric values and settings for each item can be saved in
a parameter file. Type the desired name in the [file name] text
box and then click the [Save] button to save the parameter file.
A parameter file can be recalled. Click the desired parameter
file from the file list and then click the [Open] button.
■
Graph:
This function displays a generated waveform pattern in a
CCDF or FFT graph on the PC. It is useful to check/review the
waveform pattern in a graph before transferring it to the
MG3700A.
[CCDF (Complimentary Cumulative Distribution Function) graph]
Up to eight types of generated waveform patterns are read to be displayed in a CCDF graph.
[FFT (Fast Fourier Transform) graph]
Up to four types of generated waveform patterns are read and the FFT calculation results for them are displayed in an FFT graph.

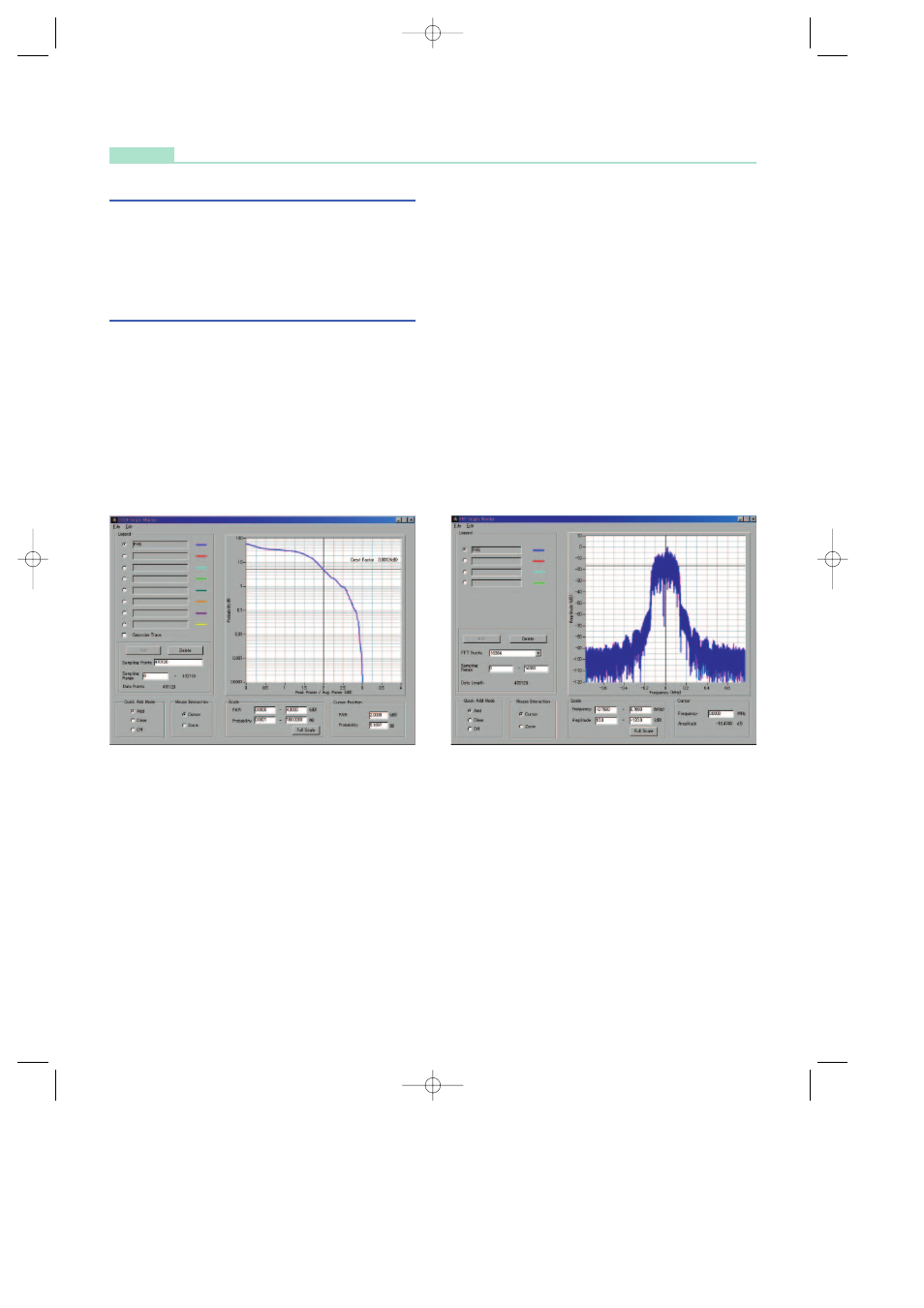

CCDF graph screen
FFT graph screen
