Datamax-O'Neil S-Class ST Cutter Option User Manual
Page 11
9
6. Using a soft brush or compressed air, remove all debris from inside the printer.
7. Using a soft brush or compressed air, remove all debris from the Cutter Assembly. Then, using a
cotton swab dampened with isopropyl alcohol, clean the Cutter Blade surfaces until all build-up is
removed.

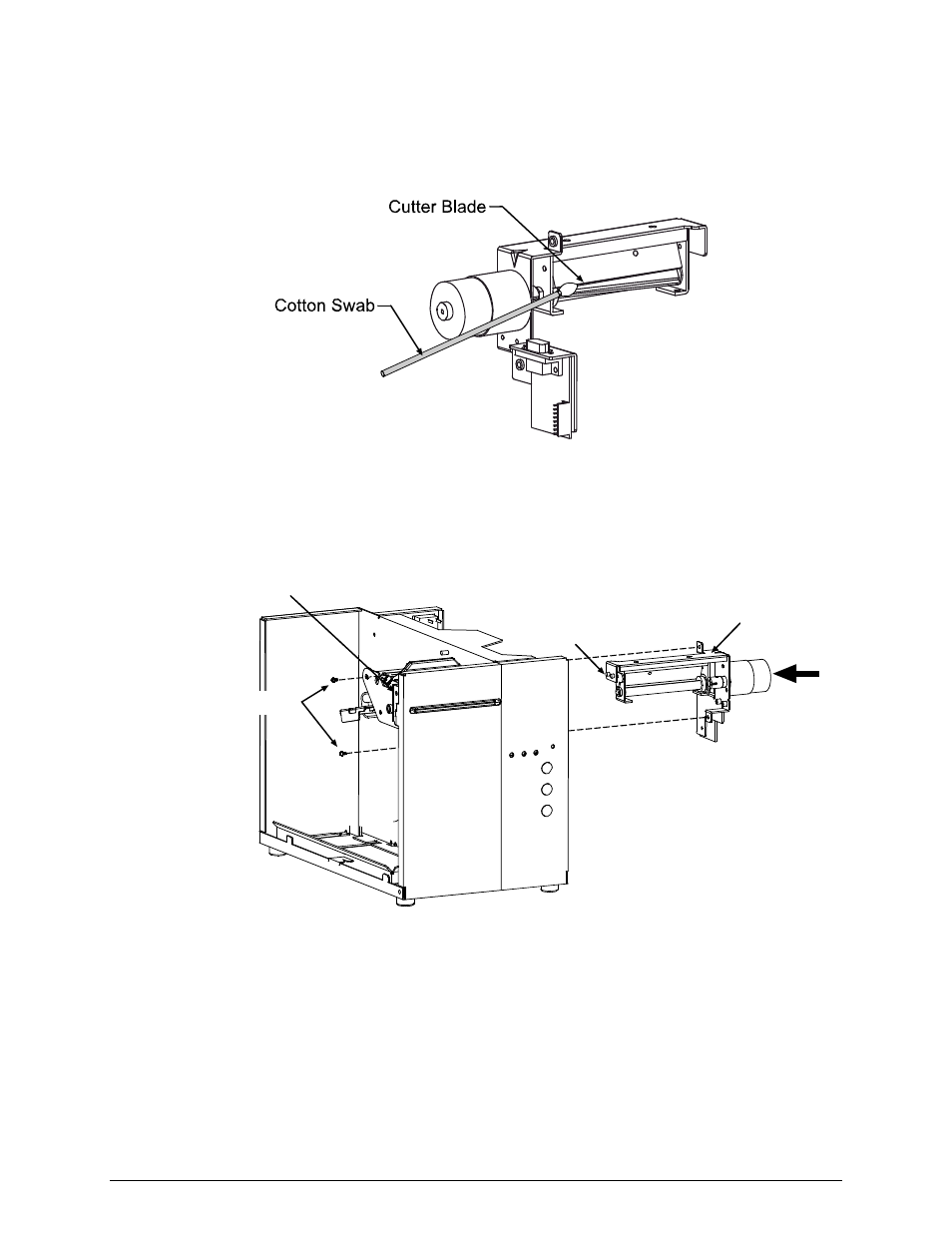

8. Carefully slide the Cutter Assembly into the printer. Ensure that the Guide Pins on the assembly fit
into the Locator Holes in the printer, and then secure the cutter in place using the two Mounting
Screws.
Cutter Assembly
Mounting Screws
Guide
Pins
Locator
Holes
9. Reconnect the Cutter Cable to J1 on the Cutter CCA.
10. Replace the electronics cover. Install and tighten the two inside cover screws and then tighten the two
outside cover screws. (If removed, replace the memory module.)
11. Reconnect the interface cable(s). Plug in the AC power cord and turn ‘On’ the power switch. This
completes the cleaning procedure. Reload ticket stock.
