PrintPAD MC65 USER'S GUIDE
Audio Indicators
Radio LED
Power LED
CardReader Audio Indicators
Magnetic
Using DEX/UCS Capabilities
The direct exchange (DEX)/UCS port can only be used with the Datamax-O’Neil approved DEX cable (P/N 210237-
xxx). When the DEX cable is plugged into the data port, the printer automatically turns off to allow data transfer
between the handheld and the DEX port. Remove the DEX cable to resume connection to the printer.
Beep(s) Description Action
1 Printer wakes up. None.
2 Out of paper. Install paper.
3 Low battery. Charge battery.
1 short RF power is on (when blue, RF power button is pressed and
power was turned off). None.
2 short RF power is off (when blue, RF power button is pressed and
power was turned on). None.
1 long Boot code is starting or restarting (when downloading new
firmware). Redownload firmware.
8 short CRC error in firmware. Redownload firmware.
Radio LED
Blue flash - slow
RF power is on and printer is asleep.
Blue flash - fast RF power is on and printer is awake.
Off RF power is off.
Power LED Description
Off Printer is asleep.
Red flash Paper out.
Green Unit is awake.
Beep(s) Description Action
1 long Bad read. None.
2 short Good read. None.
Note: Do not unplug the cable in the middle of a data transfer session.
Your application needs to be programmed to communicate in the DEX/UCS language.

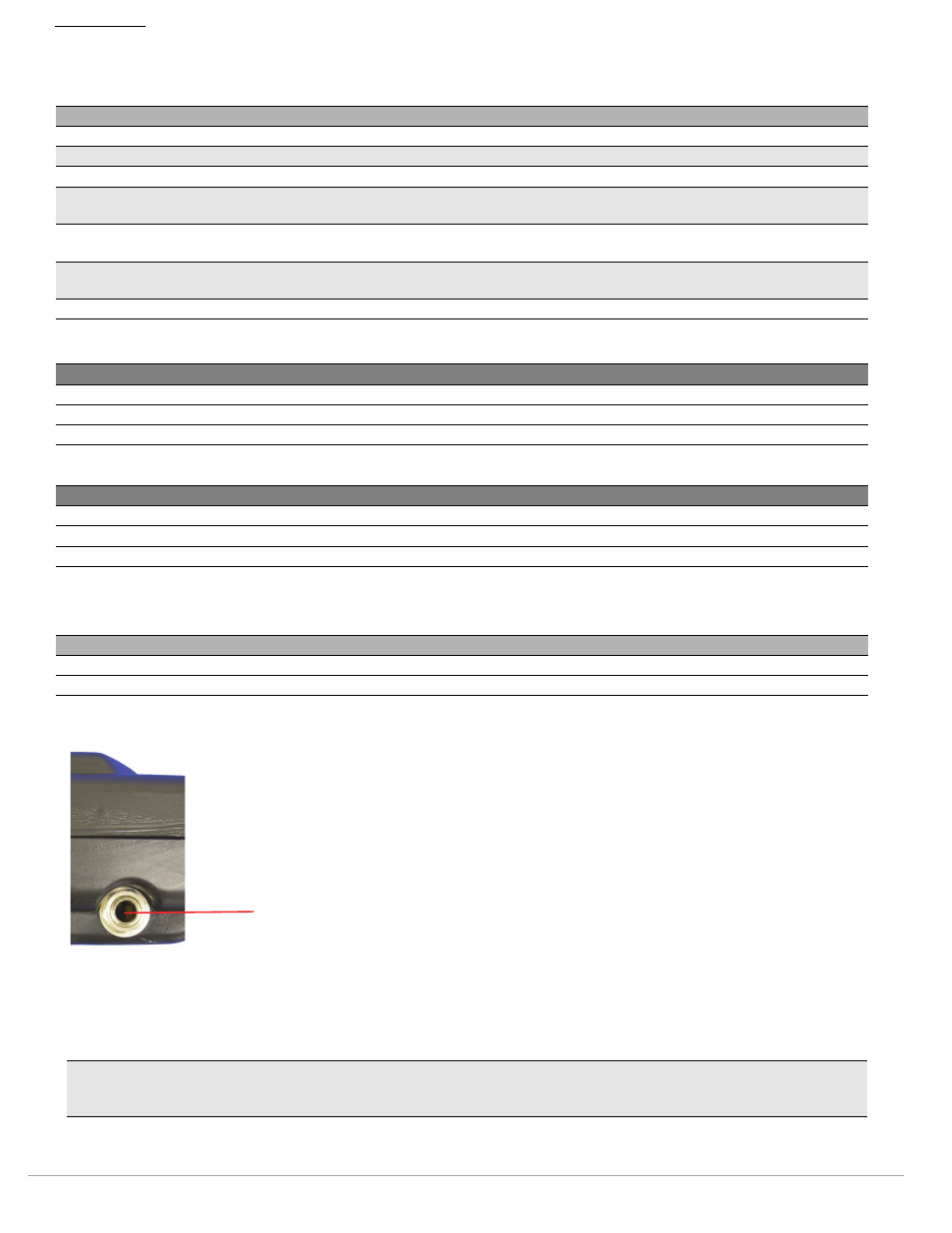

Figure 15
DEX/UCS port
