Datamax-O'Neil Performance series Audio Alarm User Manual
Page 8
Audio Alarm Installation Guide | 2
7
Audio Alarm Installation Guide

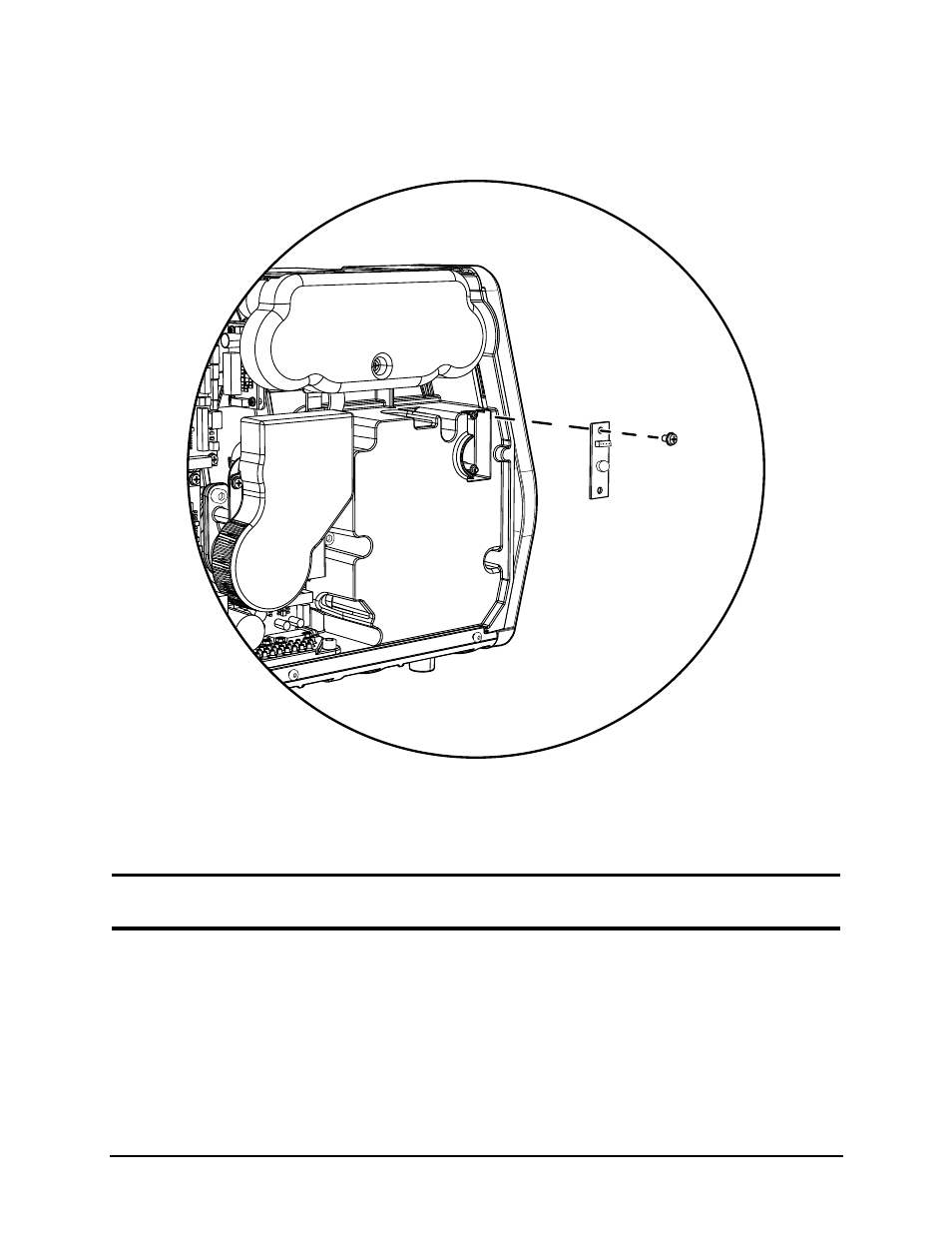

8. Secure the audio alarm assembly to the printer chassis using the supplied screw.
Figure: 2 - 6 Audio Alarm Assembly
9. If applicable, connect the small connector for the audio alarm cable to the audio
alarm assembly and route the cable through the cable clamp and to the main PCB
assembly area.
Caution:
Be sure the cable is routed properly to prevent it from rubbing other
components.
10. Connect the larger connector to junction J13 of the main PCB assembly.
11. Reinstall all other printer components in the reverse order as they were
disassembled.
