Datamax-O'Neil Performance series Internal Rewinder User Manual
Page 8
2 | Internal Rewind Installation Guide
Internal Rewinder Installation Guide
6
6. Loosen and remove the three (3) 2.5mm hex head screws securing the right side
cover to the printer chassis.

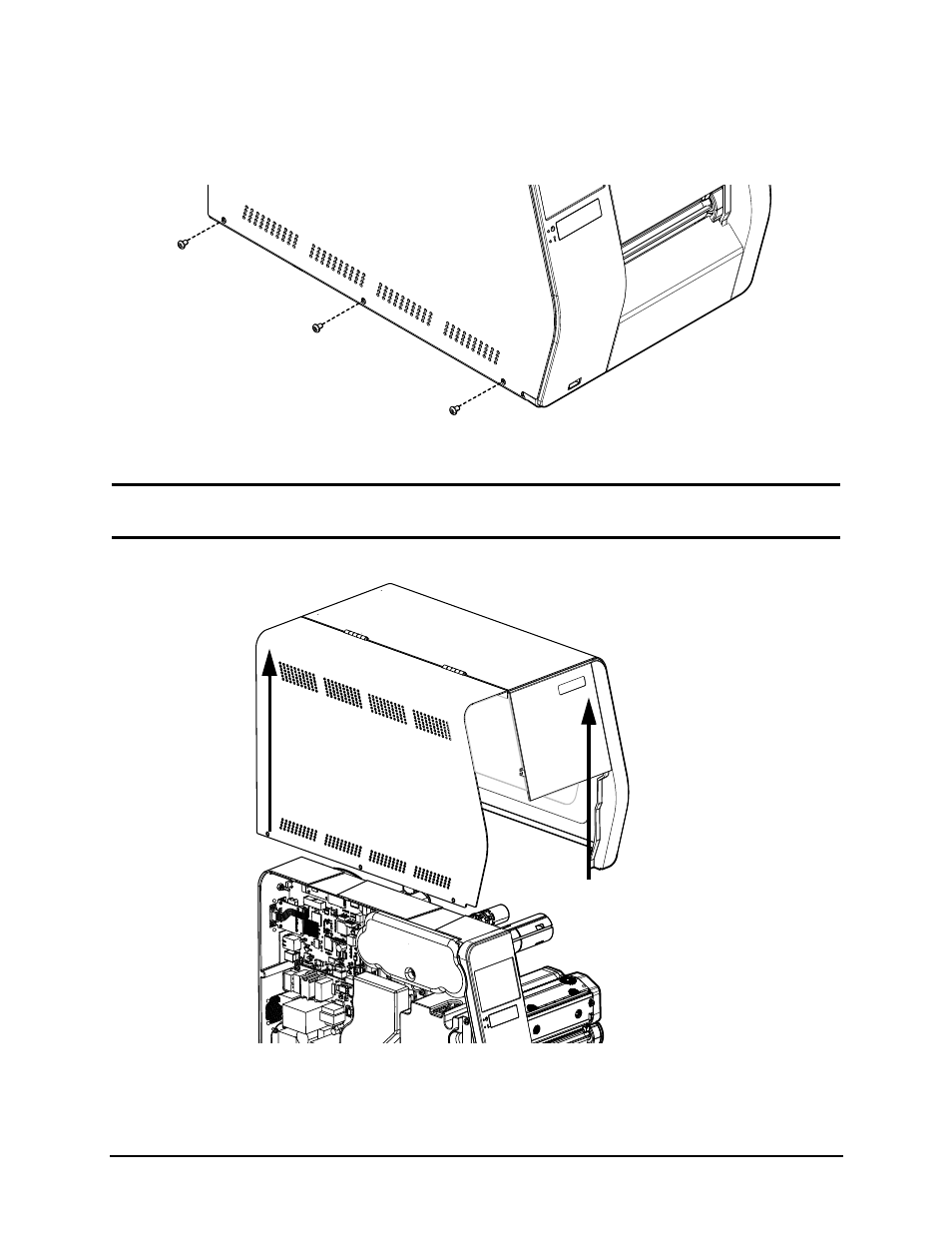

Figure: 2 - 4 Right Side Screws
7. Lift and remove the cover assembly from the printer chassis.
Caution:
Exercise caution when removing the cover set assembly and secure it in a safe
position where it will not be damaged.
Figure: 2 - 5 Lift Cover Assembly
