Datamax-O'Neil Performance series GPIO User Manual
Page 9
2 | GP I/O Serial Installation
GP I/O Serial Installation Guide
8
9. Insert the GP I/O Serial assembly into the printer chassis and secure it with the two
(2) socket head screws that were removed during the previous step.

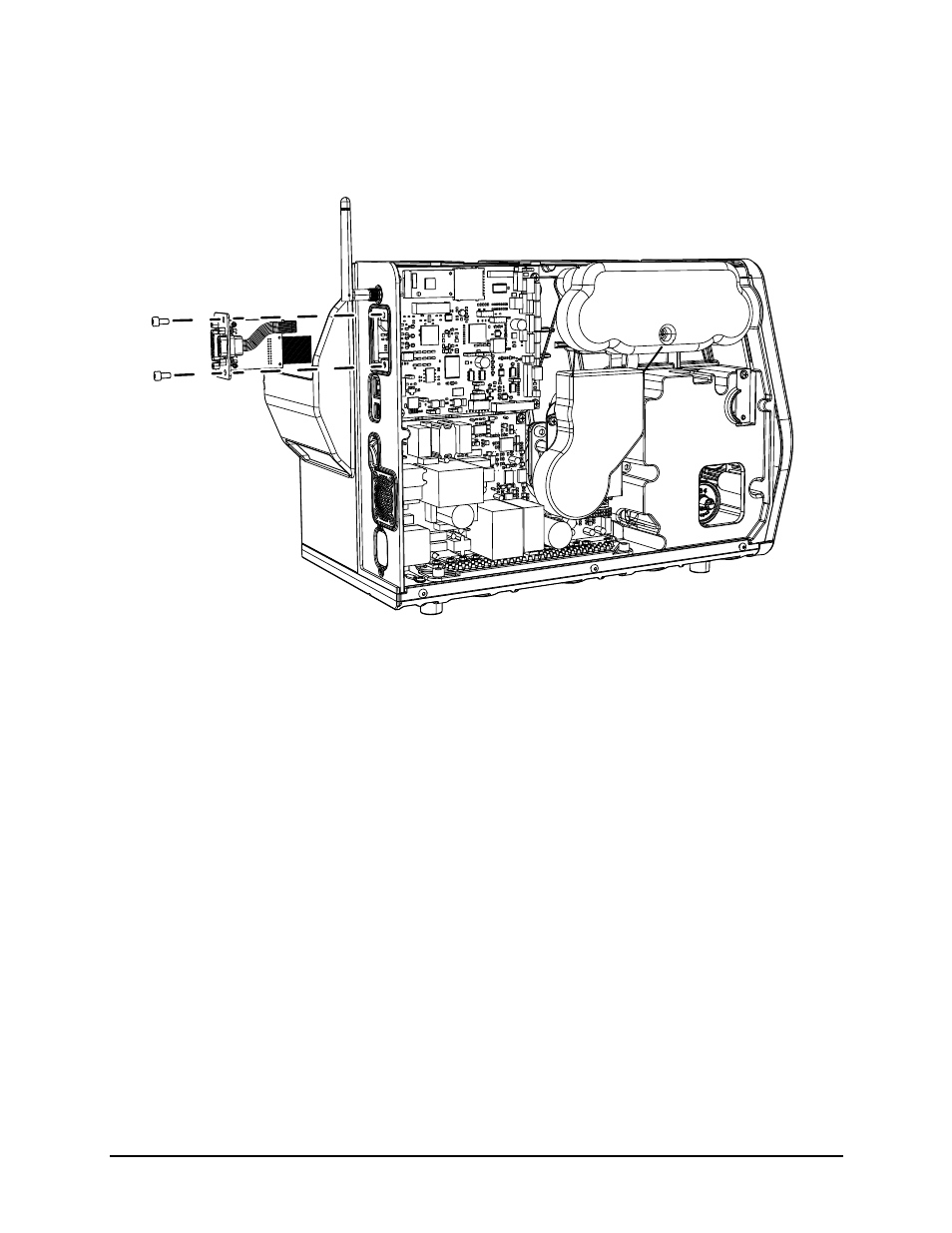

Figure: 2 - 7 GP I/O Serial Assembly
10. Connect the GP I/O Serial assembly connector to junction J25 of the main PCB
assembly.
11. Reinstall all other printer components in the reverse order as they were
disassembled.
