Datamax-O'Neil OC-2_3 SERIES IP54 Cases - Manual

Congratulations! You’ve just purchased an accessory
that will allow your rugged Datamax-O’Neil printer to
go the extra mile. Proper use of this case will allow our
OC Series printer to be used in harsh, dusty, or rainy
environments.
This case is certified to be an IP54 rating, so when
properly used, it will protect your product against
particles as small as dust, and water from any
direction.
Installation Instructions
1. Remove the case from any protective wrapping and
packaging.
2. Unzip and detach all velcro and/or hook and loop
fasteners.
3. Install the printer, as shown in Figure 1. Be sure
that the printer’s edges are completely covered by
the case.

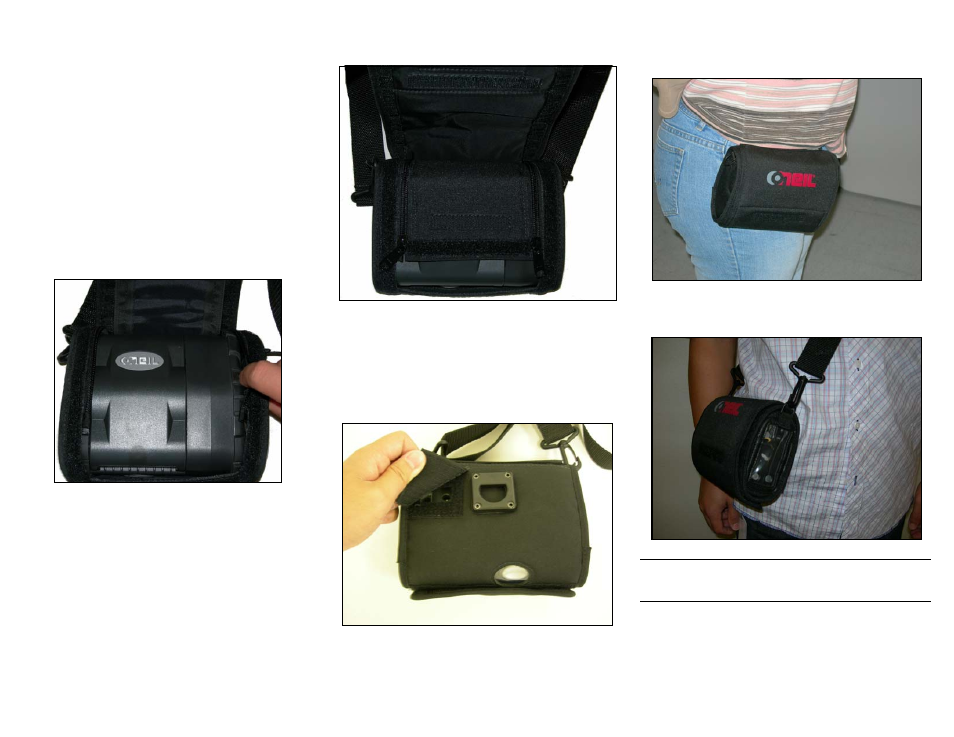

Figure 1
4. Zip the printer flap to secure the printer in place
(Figure 2).
Figure 2
5. Close the top cover, then secure all covers with the
hook and loop fasteners provided.
6. The power jack and communication ports are
located under the velcro flap. To access the ports,
turn the case over. A female swivel clip is also
located under the velcro flap.
Figure 3
Options
• The printer can be worn in the IP54 case with a
swivel belt clip or swivel belt loop (Figure 3).
Figure 4
• The printer can be worn with a shoulder strap
(included) (Figure 5).
Figure 5
NOTE: When the printer is in transport or not in use, it
is necessary to fully secure the paper flaps to allow
maximum protection of the printer.
