Datamax-O'Neil MP Compact4 Mark II 150mm Media Hub Option User Manual
Page 2
Overview
This document describes the contents, installation, and use of the 150mm Media Hub option for the MP
Compact printers. After verifying the contents of the kit and the tools needed, follow the steps below to
install and begin using the option.
CAUTION
For your safety and to avoid equipment damage, always turn ‘Off’ power and unplug the
printer’s power cord before beginning this installation and when performing service.

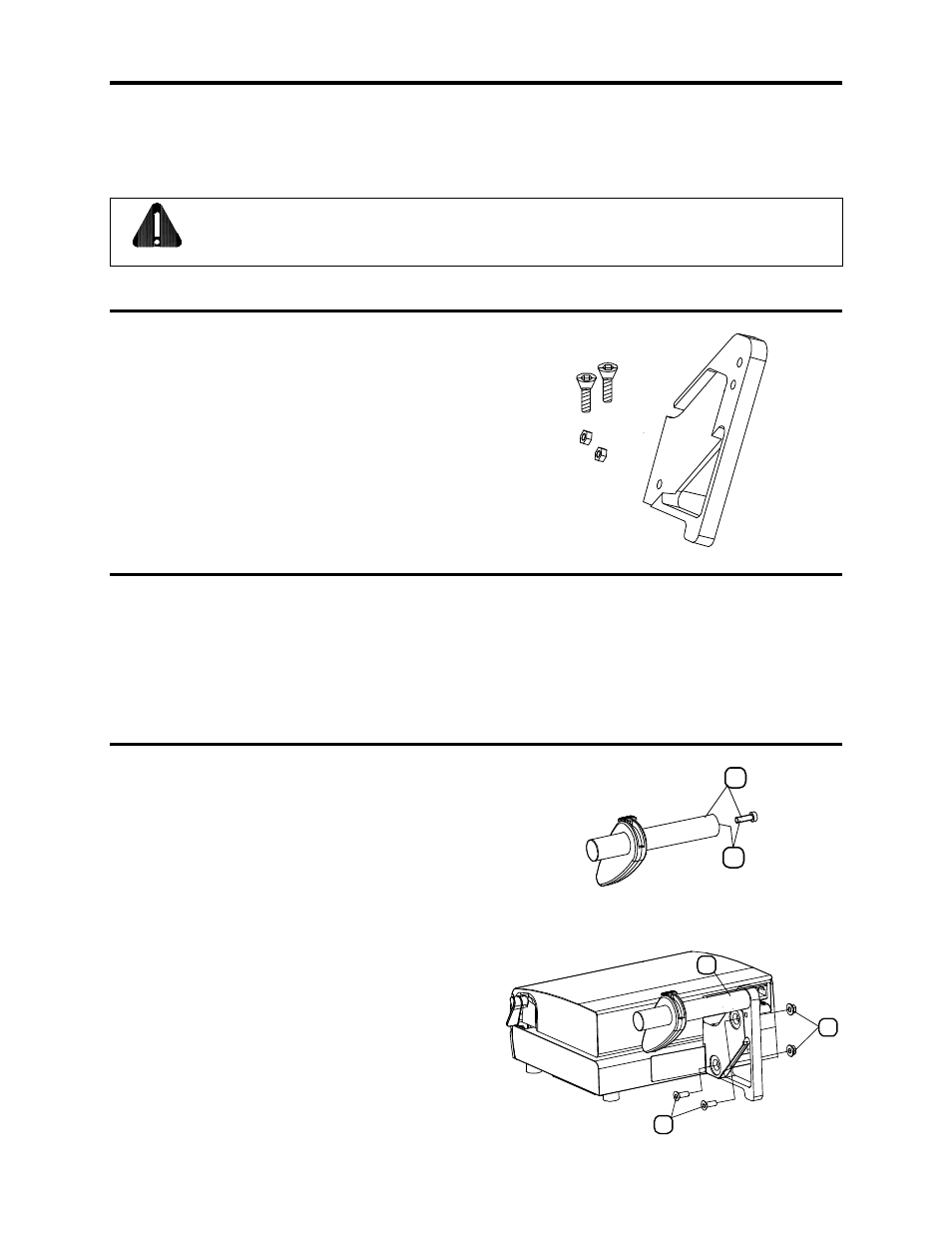

Contents of the 150mm Media Hub Kit
This kit contains the following item:
• 1 x Media Unit
• 2 x Screws (MF6S 5x14)
• 2 x Nuts (M5)
Tools
Required
To install this option, you will need
• Allen Key, 3mm
• Box Wrench, 8mm
• Loctite
243
Installation
1. Remove the paper shaft from your printer.
2. Mount the 150 mm kit with the screws and nuts.
3. Fasten the paper shaft on the 150mm kit. It’s
recommended to use Loctite 243 on the screw
and the internal thread of the shaft to secure the
assembly.
1
3
2
2
3
