Datamax-O'Neil M-Class Mark II Internal Rewinder Option User Manual
Page 3
1

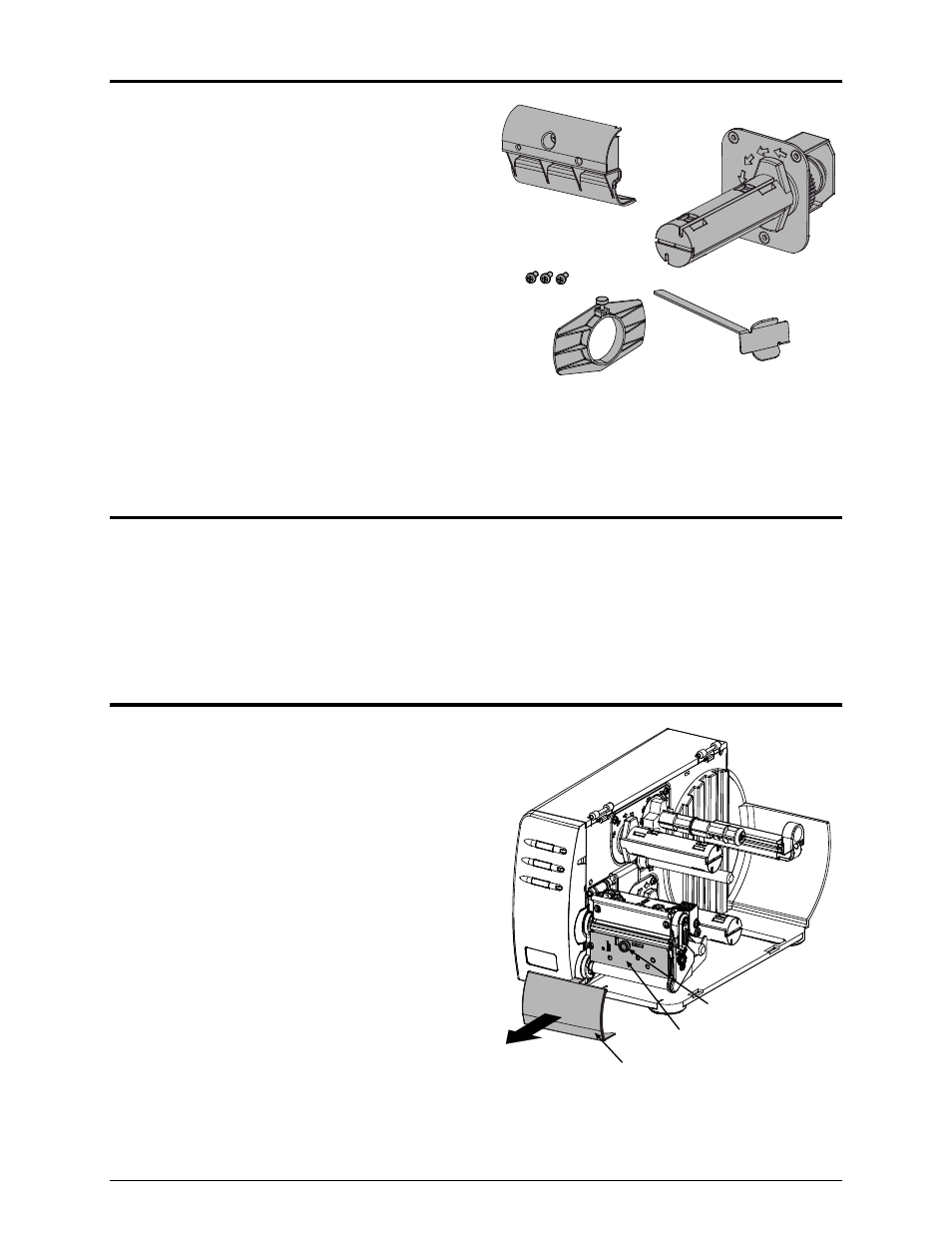

Contents of the Internal Rewinder Kit
This kit contains the following items:
Arc Plate,
Internal Rewinder Assembly
Media Clip
Media Retainer
Screws (3)
Follow the steps listed below to install this option.
Tools
Required
To install this option you will need a #2 Phillips head screwdriver.
Step 1: Preparing the Printer
Turn ‘Off’ the power switch and unplug the
printer.
Open the cover. Remove any installed media
from the printer.
Remove the Fascia by gently pulling it forward.
Loosen and remove the Thumbscrew, then
remove the Tear Plate.
Fascia
Tear Plate
Thumbscrew
