Datamax-O'Neil OC-2_3 SERIES 4t Battery Charger - Manual

Using the 4t Battery Charger
1. Insert the 4t battery charger into an appropriate
power source.
2. Position the battery above the charger so that
the contacts on the bottom of the battery align
with the contacts on the charger.
3. Place the battery on the charger.
4. The 4t battery charger begins the charge cycle.
The Battery LED turns green when the charge is
complete.

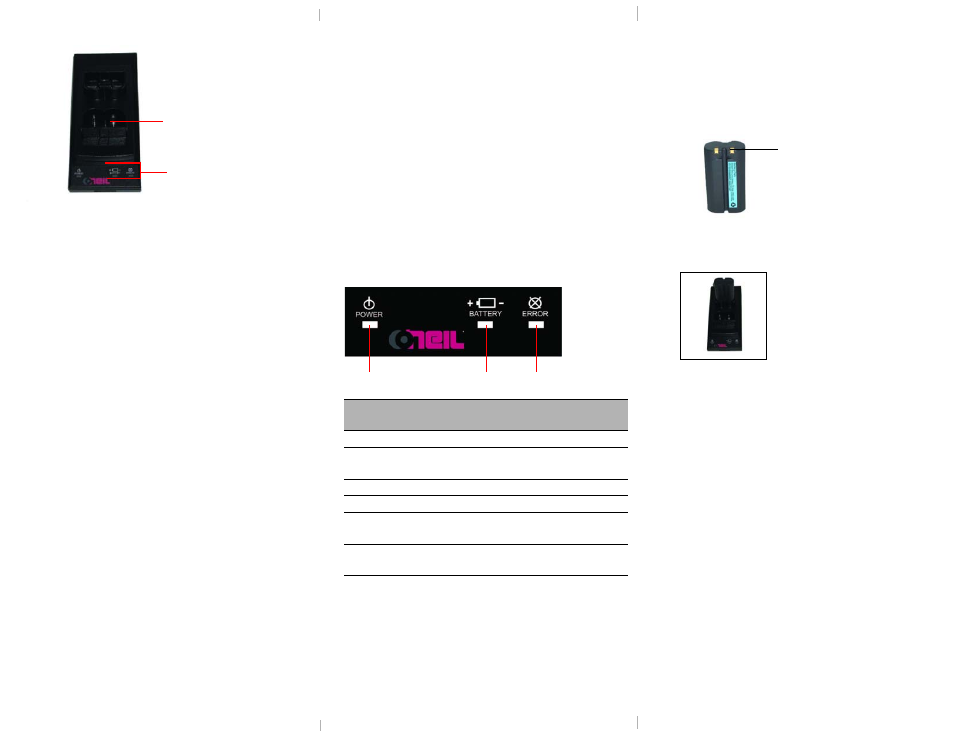

Battery contacts
Figure 2
Figure 3
Overview
The 4t battery charger is designed to charge 4t
Lithium Ion (Li-ion) batteries. Before using the battery
charger, read all instructions, guidelines, and
warnings.
General Guidelines
• The 4t battery charger takes approximately 6
hours to charge two batteries sequentially. Charge
times may vary.
• Place the 4t battery charger on a dry, flat surface.
• When not in use, charge batteries once every
three months to maintain the life of the Li-ion
battery.
LED Indicators
Description Power
LED
Battery
LED
Error
LED
Power off. Off Off Off
Power on.
No battery inserted. Green Off Off
Battery is charging. Green Red Off
Battery is 100% full. Green Green Off
Battery charger error. Green Off Red
blinking
Battery error. Green Off Red
blinking
Power LED Battery LED Error LED
220220-000 4t Battery Charger
Common Accessories (sold separately)
•
AC Wall Charger (P/N 490008-XXX)
• Adapter (P/N 22018X-000)
Warnings/Safety Guidelines
• This charger cannot be used for any other types of
batteries.
• Keep the charger in a cool, dry place, away from direct
sunlight, high temperature, and moisture.
• Do not insert foreign objects into the charger.
• Do not operate the charger if it appears damaged.
• Do not disassemble, incinerate, or short circuit
batteries, charger, or related components.
• Do not operate the charger when your hands or body
are wet.
• Do not operate the charger near water.
• To reduce risk of electric shock, unplug the charger
before cleaning.
• The battery and the charger become warm during
charging. If either becomes too hot to touch, discontinue
charging and contact your Datamax-O’Neil
representative.
• Use of any charger not approved by Datamax-O’Neil for
use with their batteries could cause damage to the
batteries or the printer and will void the warranty.
Charger contacts
LED display panel
Figure 1
