Datamax-O'Neil I-Class Mark II Media Tray Option User Manual
Page 5
5

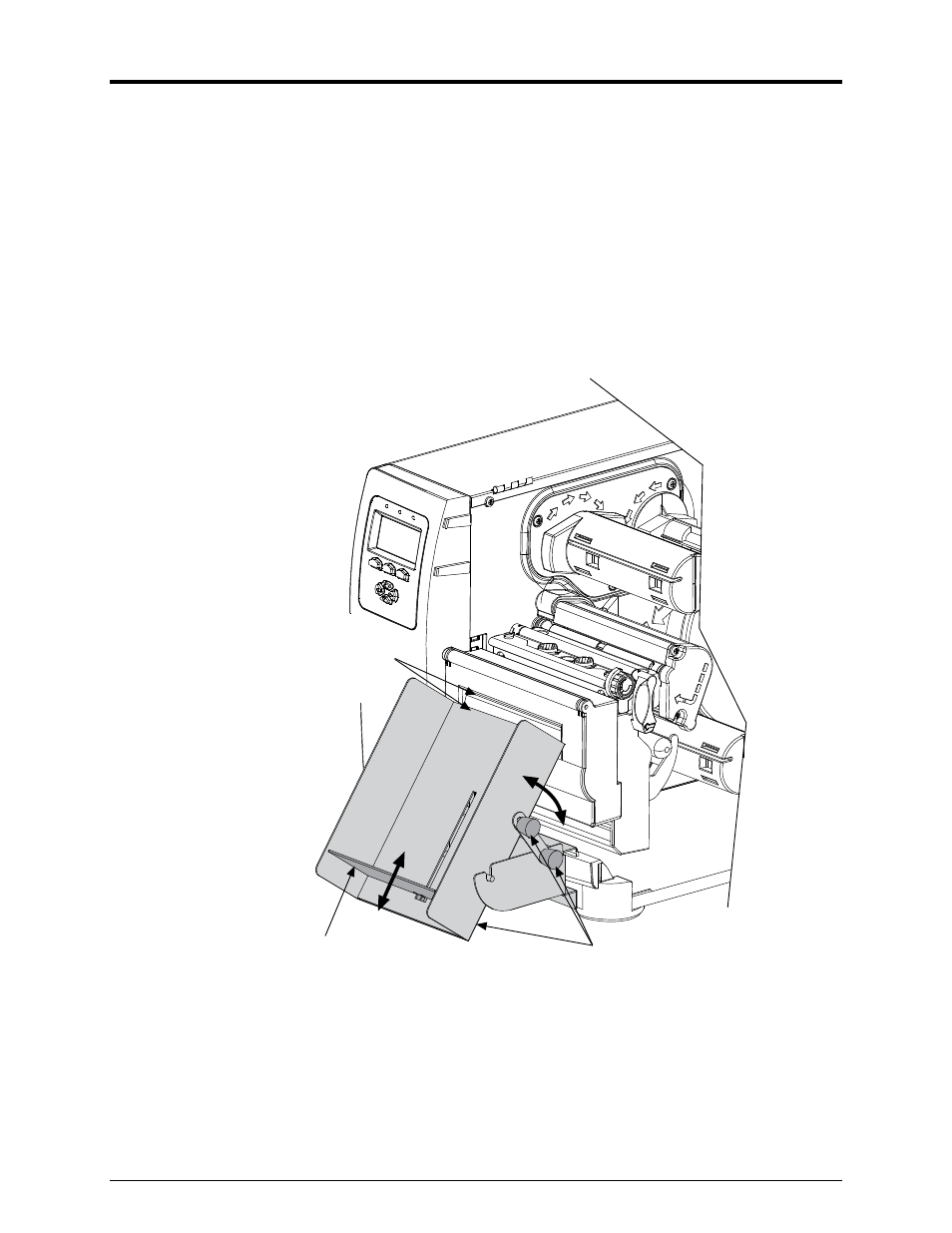

Adjusting the Media Tray
A) Loosen the Adjustment Knobs on the Side of the Media Tray. The tray should be
adjusted so that the edge of the tray is below the throat (output) of the cutter. When
the tray is adjusted correctly tighten the Adjustment Knobs.
B)
The Media Tray can also be adjusted to the length of labels being cut. Loosen the
bottom Adjustment Knob, (under the tray) and move the Media Guide to
accommodate your cut label size, then tighten the Adjustment Knob. The Media Tray
can stack up to 2 inches of labels with a label length of 2 inches to 6.25 inches long.
Adjustment
Knobs
Adjust so the lip of the
Media Tray is below the
throat of the cutter.
Media
Guide
