Datamax-O'Neil I-Class Present Sensor Option User Manual
Page 3
1

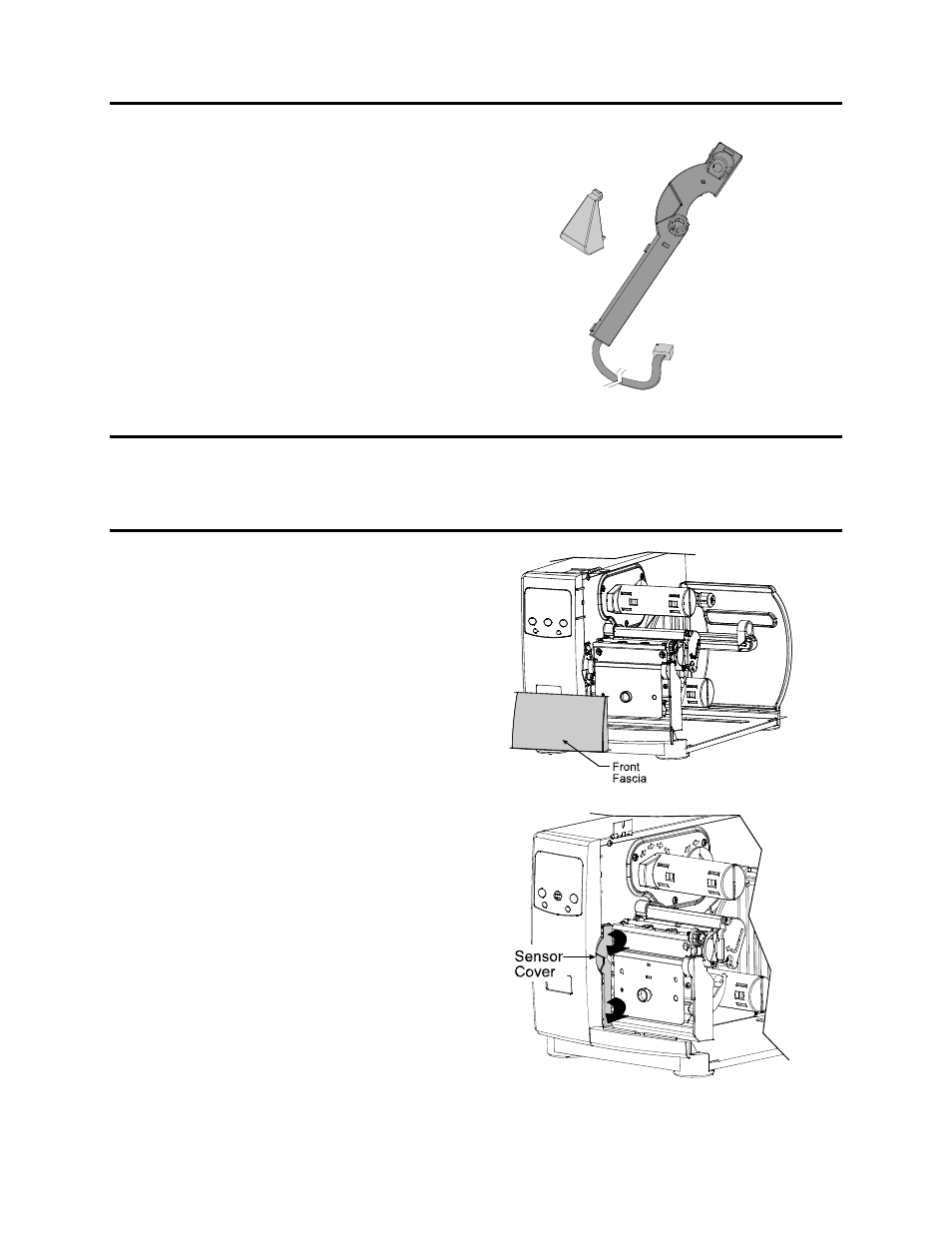

Contents of the Present Sensor Kit
This kit contains the following items:
Present Sensor Assembly
Reflective Block
Tools
Required
There are no tools required for installing the Present Sensor Option.
Preparing the Printer
Turn the power off and unplug the printer.
Remove any installed media from the printer.
Open the cover and remove the Front Fascia
by gently pulling it from the printer.
Remove the Sensor Cover by gently pulling
it from the printer in the direction of the
arrows as shown.
