Installation Instructions

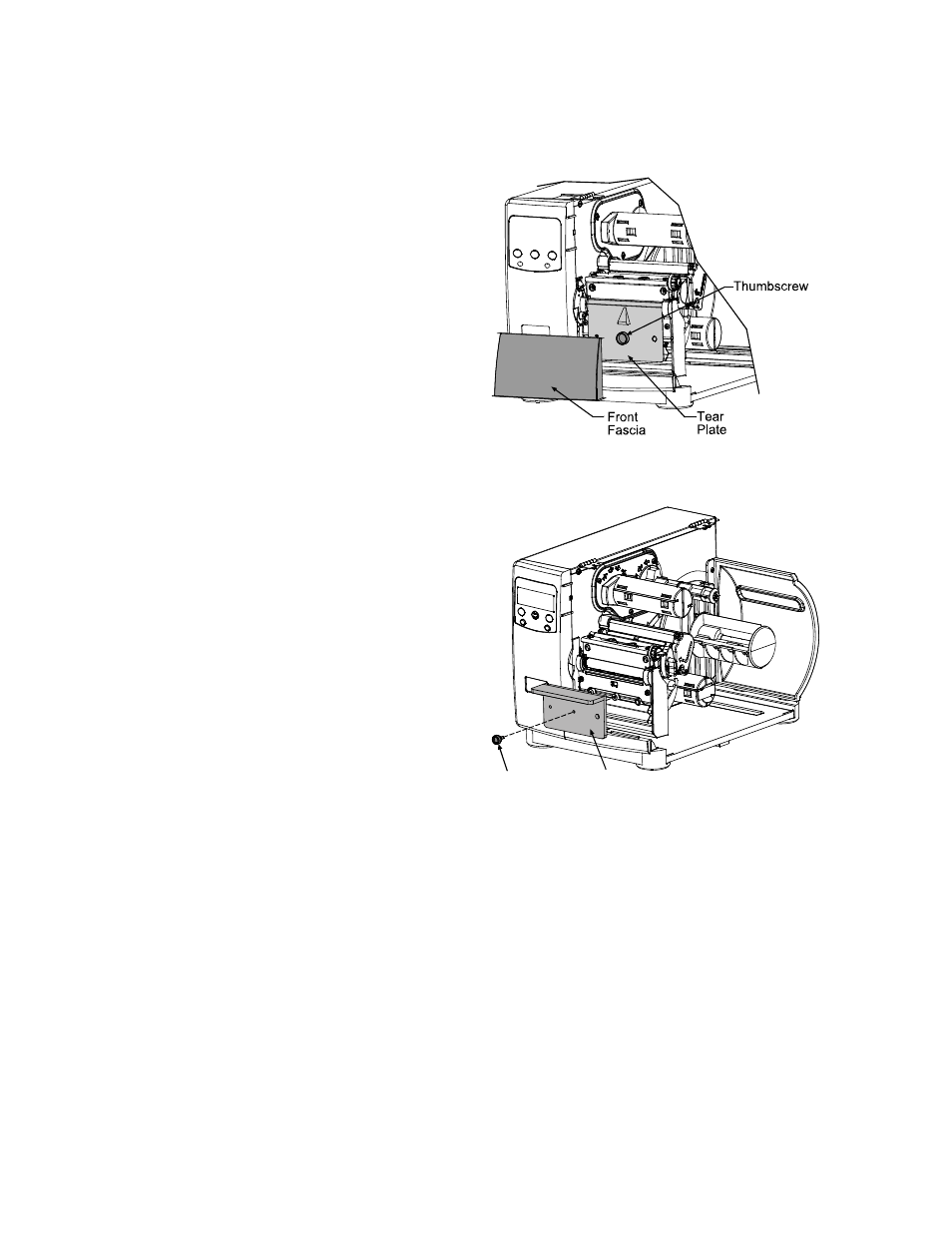

Turn the power off and unplug the printer.
Remove any installed media from the
printer.
Open the cover and remove the Front Fascia
by gently pulling it from the printer.
Loosen and remove the Thumbscrew and
then remove the Tear Plate
Printers cover removed for clarity
Position the Media Shelf on the front of the
printer.
Secure with the previously removed
Thumbscrew.
Thumbscrew
Media
Shelf
