O v e r v i e w
2
Card Installation

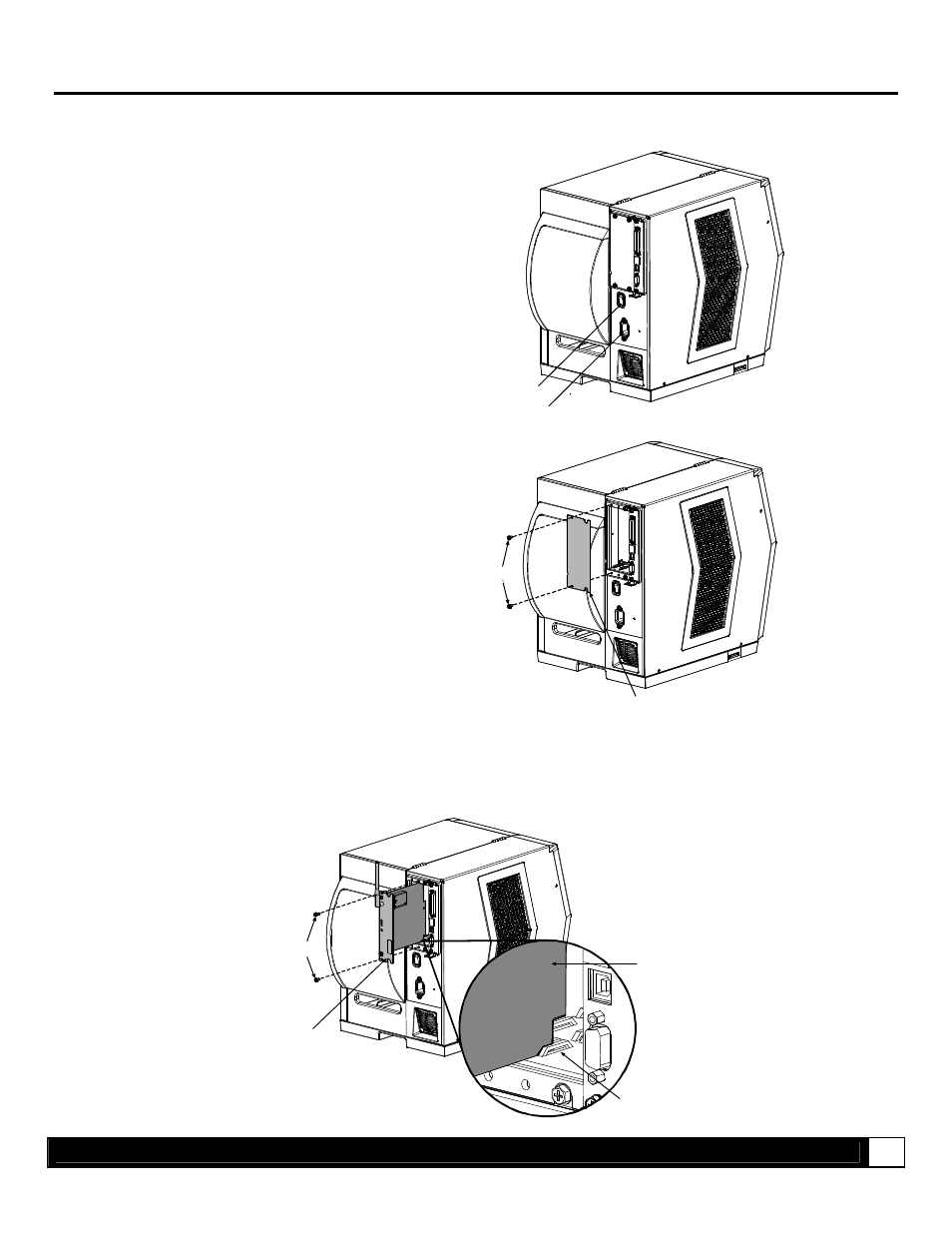

The following illustrations depict installation into an H-Class printer, other model installations are similar. On some A-
Class models, the Network Card is installed upside-down.
1. Turn ‘Off’ the Power Switch and unplug the power
cord from the AC Receptacle.
Power Switch
AC Receptacle
2. Remove the two Screws and Cover Plate from the
rear of the printer.
Screws
Cover Plate
3. Slide the Wireless Card into the center slot of the printer. Be sure the Wireless Card is positioned between the Guides
while inserting.
4. Secure using the two previously removed Screws.
Screws
Wireless
Card
Wireless
Card
Guides
