Page 4 SSI Industrial Datasheet Version 20130723
INDUST RIAL I NCLI NOMET ER 3 60°
SYNCHRONOUS S E RIAL INT E RFA CE ( S S I)
Protocol
1
tm = 20µs marks the end of a single transmission. After tp > 25µs the output is set to idle state and a new
transmission can be started anytime with a falling Clock signal. Output in binary format or gray code
format.
Data values according to angular position of inclinometer
1) Changes in protocol on request

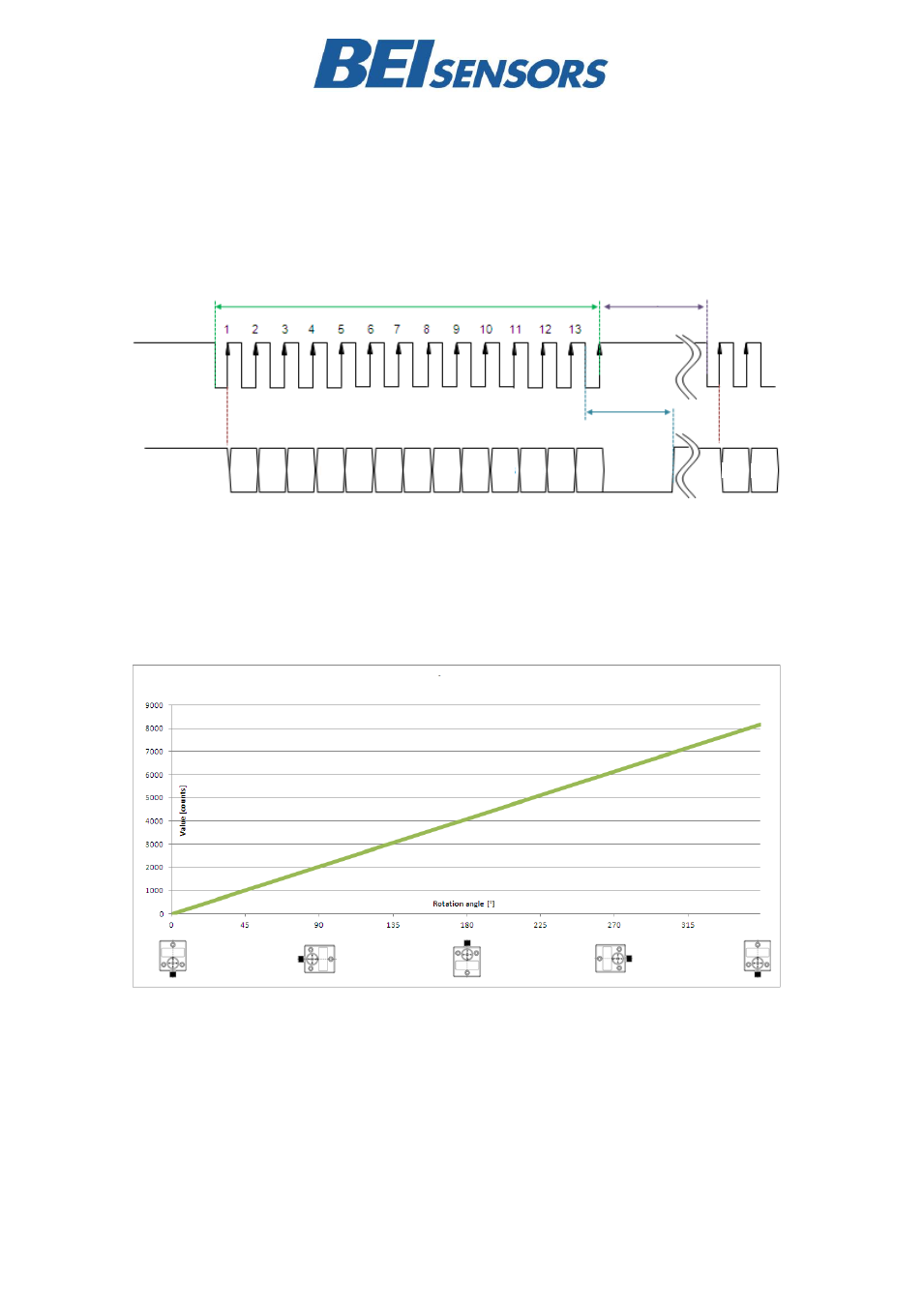

Clock-Sequence
Clock
Data
tp
tm
b12 b11 b12 b11 b10 b09 b08 b07 b06 b05 b04 b03 b02 b01 b00
B12=Most Significant Bit b00=Least Significant Bit
Output Value INC Sensor
