HEA VY DUT Y INCLI NO MET E R 360°
SYNCHRONOU S S E RIAL INT E RFA CE ( S SI)

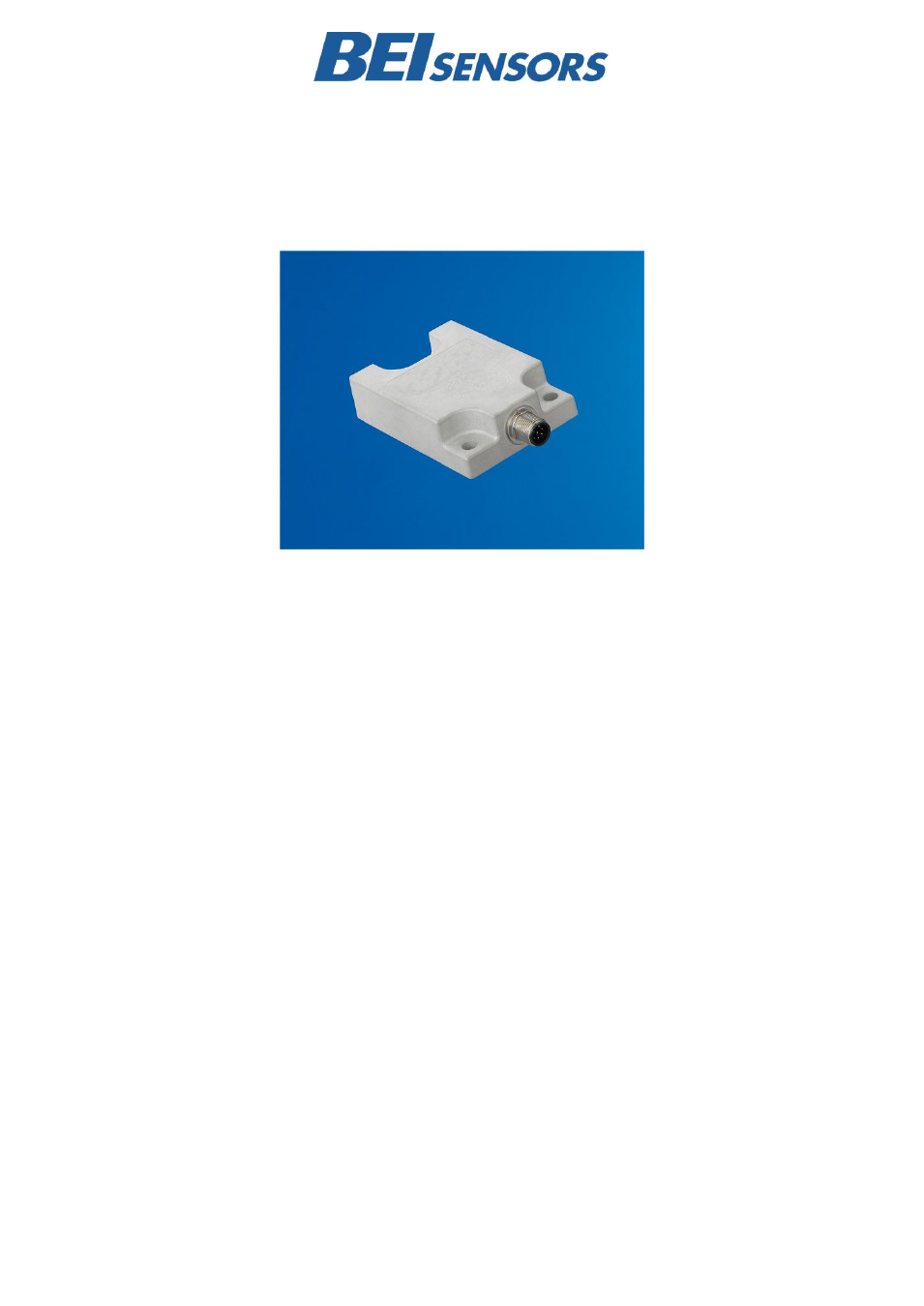

The heavy duty inclinometers are compact devices
for determining the inclination or tilt in both single
and dual axes with remarkable precision and at at
very low expenses. The aluminum housing and the
metal connector enhance the mechanical strength
of the sensor and make it ideal to measure the tilt /
slope in outdoor environments. The synchronous
serial interface (SSI) with its RS422 differential line
drivers allows transmission cable length up to
1200m. The simple protocol makes it easy to
connect the sensor to common PLC systems or
embedded controllers.
Main Features
-
Configured for One Axis
-
Measurements 0
– 360°
-
13 Bit Resolution (0.04°)
-
0.14° Accuracy/Linearity
-
Active Linearization and Temperature
Compensation
-
Aluminium Alloy Housing
-
Synchronous Serial Interface (SSI)
Electrical Features
-
Polarity Inversion Protection
-
Over-Voltage-Peak protection
Programmable Parameters
-
Preset Value
-
Counting Direction
Applications
-
Cranes and Construction Machines
-
Mobile Platforms
-
Marine & Offshore Machinery
-
Solar Trackers
