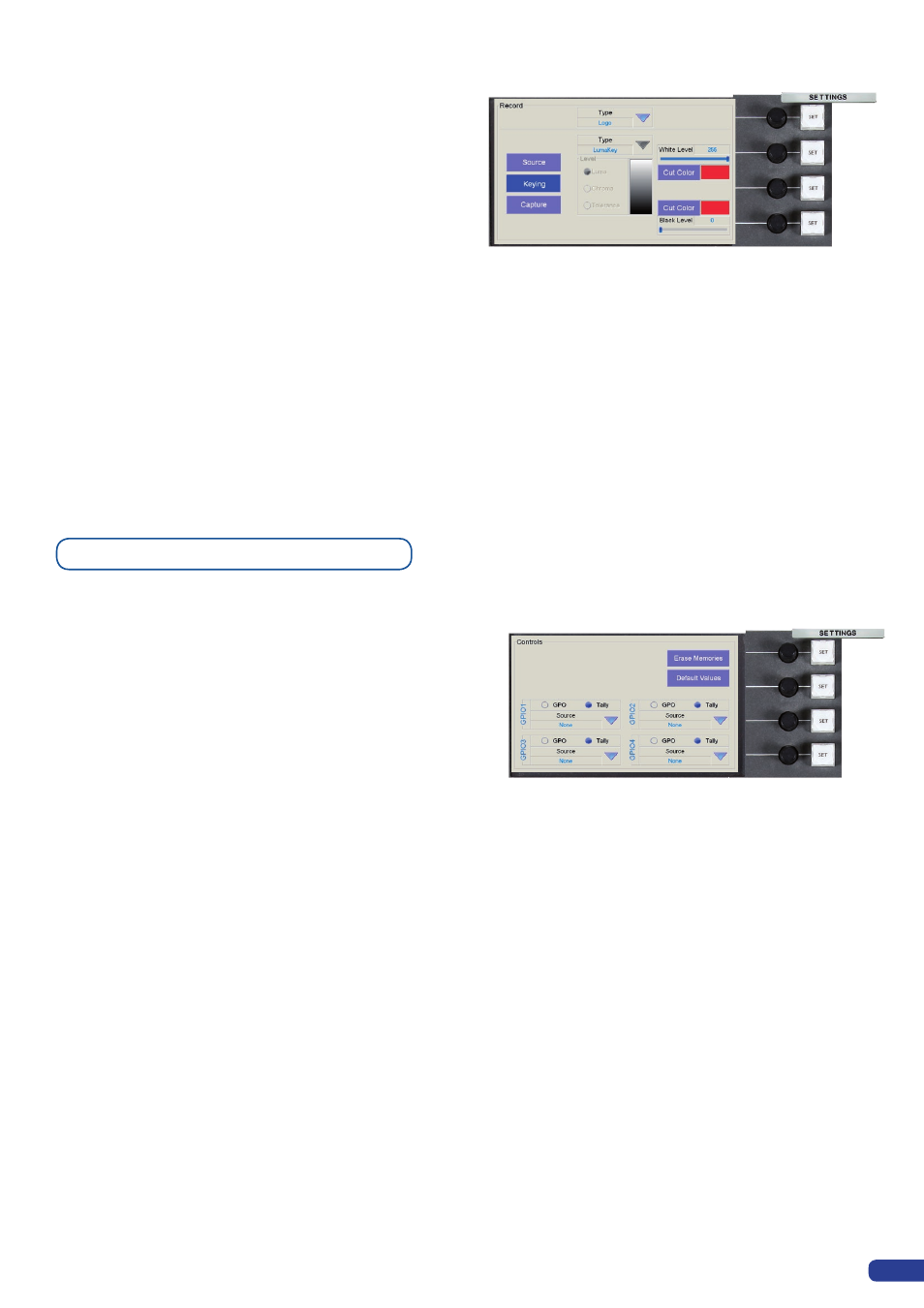

Press keying button to set Luma/Chroma
settings. With the help of the corresponding
knobs, move values up or down to set keying
parameters for your logo.
* TIP *: You will not have access to keying settings
when recording a frame.
6/
Once all your logo parameters are set, press
Store. The
Axion2
will display a progress status
bar while the device memorizes the logo.
7/
Press the
[
OK]
button to return to the Screen Setup page.
* TIP *: To record a logo in Soft Edge Blending Mode (multiple units),
you need to press [SOURCE] button, then press Extended.
The Controls page allows you to select the Tally trigger on
the slave device. The Controls page also allows to reset
a device to its default values, or erase all image settings
present on the device.
To setup a tally signal with the
Axion2
:
1/
On the Screen Setup page of the
Axion2
, press
Controls.
2/
Press one of the four available Tally dropdown menu
to select the source you want to use as a trigger.
3/
Press the
[
OK]
button to return to the Screen Setup page.
To erase all image settings on the slave device:
1/
In the Screen Setup page of the
Axion2
, press Controls.
2/ Press
Erase Memories.
3/
Confirm by pressing Yes on the confirmation popup.
4/
Press the
[
OK]
button to return to the Screen Setup page.
To reset all settings on the slave device:
1/
In the Screen Setup page of the
Axion2
, press Controls.
2/ Press
Default Values.
3/
Confirm by pressing Yes on the confirmation popup.
4/
Press the
[
OK]
button to return to the Screen Setup page.
