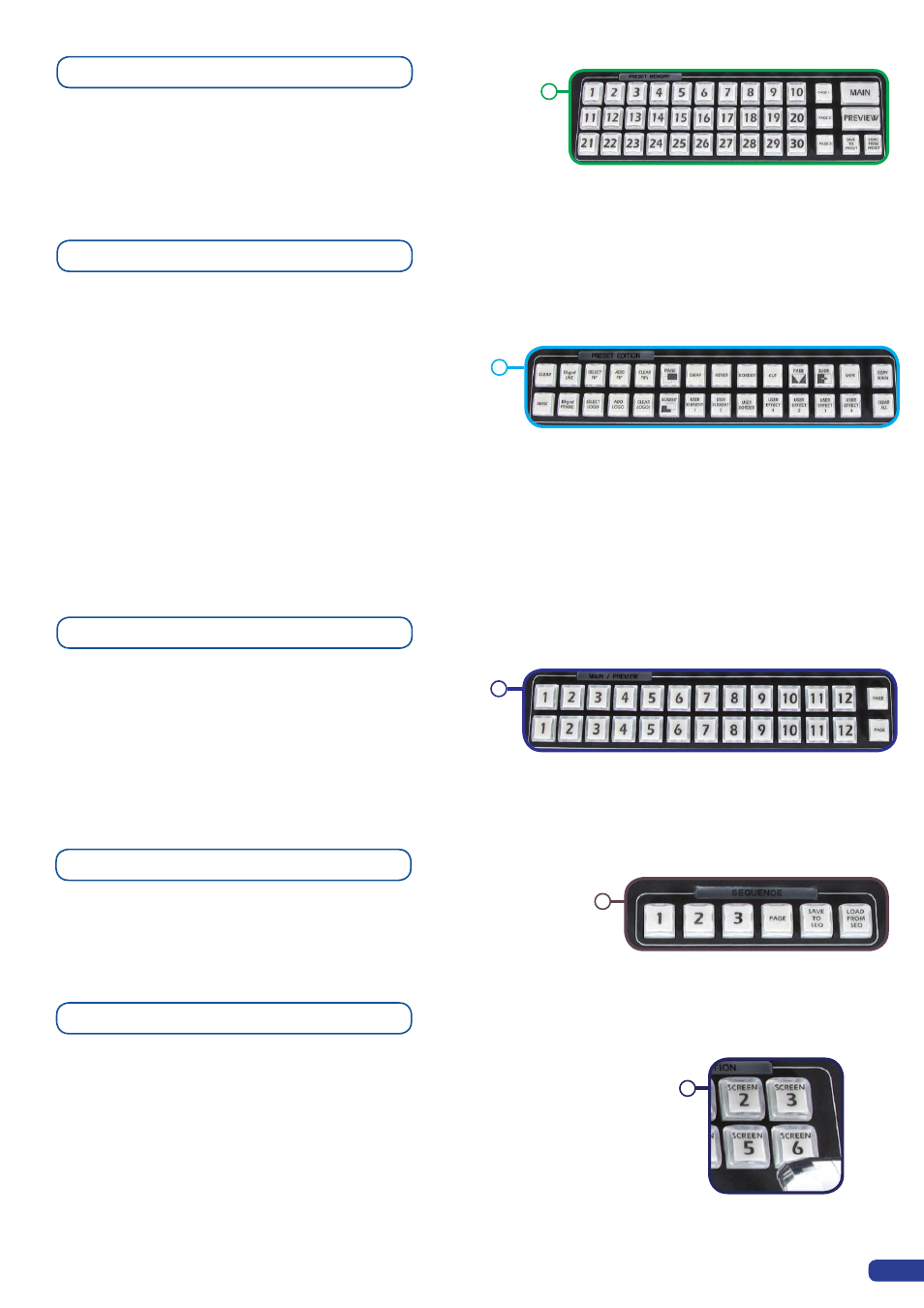

The Main/Preview section of the Axion2 allows you to
select and work with sources directly on the Preview
output of the device connected to the Axion2 . 6 pages
with up to 12 live sources per page (64 sources in total)
are available. When working with Frames or Logos,
8 sources are available.
The sequence section of the Axion2 will allow you to save presets to
be recalled and displayed sequentially when required.
Main/Preview section
Sequence section
15
The preset memory section of the Axion2 is where you may save
and recall their presets. Any on-screen disposition can be stored
to one of the 3 pages of 30 presets (90 user presets in total).
Preset Memory section
The Preset Edition section of the Axion2 is the true operations
center of the machine, and will give you instant access to all
of the functions needed to properly manage your events and
shows.
Here you can manipulate, store, erase, or modify all elements
on screen. You can create, use, and rearrange PIPs, logos
and frames, create, store and recall user presets, or simply
toggle Main and Preview selection amongst other features.
This section also contains the quick access to basic image transitions
via the [ CUT] , [FADE] , [SLIDE] and [WIPE] buttons, and allows to
store and recall layer transitions as presets via the 4 handy [ USER
EFFECT] buttons.
Preset Edition section
The Transition section of the Axion2 will allow you to go live with
whatever image, logo or PIP settings or changes you have made
on your preview screen. The Transition section of the Axion2 is
also comprised of a [TAKE CUT] button, for instant transitions from
Preview to Main, and a handy [STEP BACK] button, to toggle from
Main back to Preview. The smooth T-bar of the Axion2 will glide from
Preview to Main for elegant transitions.
The Init-T-Bar button will warm the unit that the user is going to use
the I-T-Bar. It will decrease the taking delay.
Transition section
