20 American Dryer Corp. 113386 - 14
Electric – Reversing
ELECTRICAL SERVICE SPECIFICATIONS (PER DRYER)
IMPORTANT:
NOTES: A.
B.
C.
208 VAC AND 230/240 VAC ARE NOT THE SAME. When ordering,
specify exact voltage.
When fuses are used they must be dual element, time delay, current
limiting, class RK1 or RK5 ONLY. Calculate/determine correct fuse
value, by applying either local and/or National Electrical Codes to listed
appliance amp draw data.
Circuit breakers are thermal-magnetic (industrial) type ONLY. For others,
calculate/verify correct breaker size according to appliance amp draw
rating and type of breaker used.
Circuit breakers for 3-phase (3ø) dryers must be 3-pole type.
SERVICE
VOLTAGE
PHASE
WIRE
SERVICE
APPROX.
AMP DRAW
CIRCUIT
BREAKER
60 Hz 50 Hz
72 kW
208 3ш 3 214 — 300
240 3ш 3 188 — 250
230 3ш 3 — 198 250
380 3ш 3 118 — 150
380 3ш 4* — 118 150
400 3ш 4* — 113 150
416 3ш 4* — 108 150
460 3ш 3 98 — 125
480 3ш 3 94 — 125
575 3ш 3 78 — 100
75.6 kW
440 3ш 3 106 — 150
220 3ш 3 205 — 275
Gas and Steam – Reversing
ELECTRICAL SERVICE SPECIFICATIONS (PER DRYER)
IMPORTANT:
NOTES: A.
B.
C.
208 VAC AND 230/240 VAC ARE NOT THE SAME. When ordering,
specify exact voltage.
When fuses are used they must be dual element, time delay, current
limiting, class RK1 or RK5 ONLY. Calculate/determine correct fuse
value, by applying either local and/or National Electrical Codes to listed
appliance amp draw data.
Circuit breakers are thermal-magnetic (industrial) motor curve type ONLY.
For others, calculate/verify correct breaker size according to appliance
amp draw rating and type of breaker used.
Circuit breakers for 3-phase (3ø) dryers must be 3-pole type.
SERVICE
VOLTAGE
PHASE
WIRE
SERVICE
APPROX.
AMP DRAW
CIRCUIT
BREAKER
60 Hz 50 Hz
208 3ш 3 14.5 — 20
240 3ш 3 14.6 — 20
230 3ш 3 — 17.4 25
380 3ш 3 8.5 — 15
380 3ш 4* — 8.7 15
400 3ш 4* — 8.7 15
416 3ш 4* — 9.0 15
440 3ш 3 8.7 — 15
460 3ш 3 7.8 — 15
480 3ш 3 7.8 — 15
575 3ш 3 5.8 — 15
2. Electrical Service Specifications
* 3-Wire is available. 7/22/08
* 3-Wire is available. 7/22/08

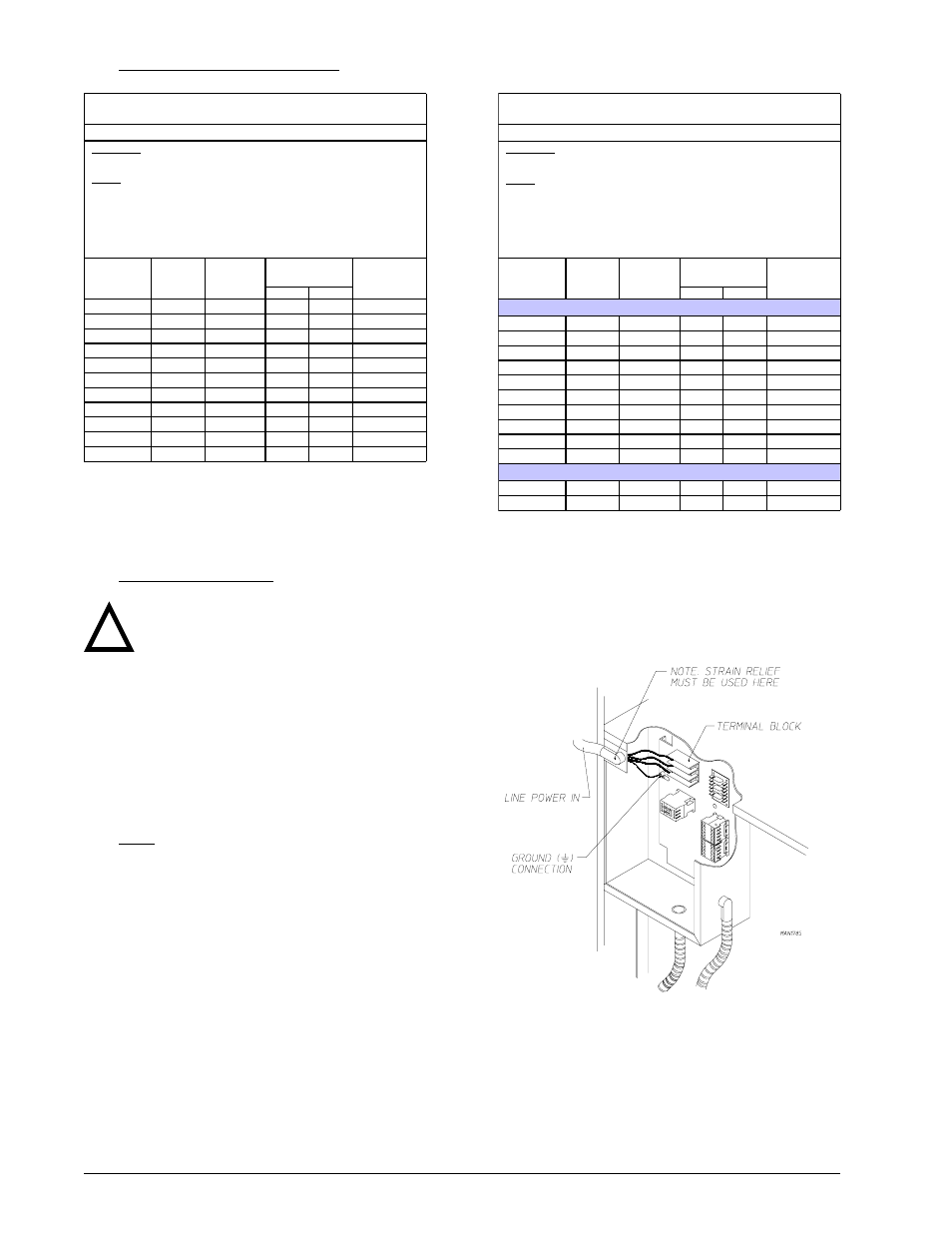

3. Electrical Connections
NOTE: A wiring diagram is included with each dryer and is affixed to the rear upper right guard/
panel of the dryer.
The only electrical input connections to the dryer
are the 3-phase (3ø) power leads (L1, L2, and
L3), GROUND, and in the case of 4-wire service,
the neutral. Providing local codes permit, power
connections to the dryer can be made by the use
of a flexible UL listed cord/pigtail (wire size must
conform to rating of the dryer), or the dryer can
be hard wired directly to the service breaker. In
ALL cases, a strain relief must be used where
the wire(s) enters the dryer electrical service
(relay) box.
!
