American Dryer Corp. AD-120ES - Manual (Page 14)

10 American Dryer Corp. 113386 - 14
IMPORTANT: Dryer must be installed in a location/environment, which the ambient
temperature remains between 40º F (4.44º C) and 130º F (54.44º C).
B. UNPACKING/SETTING UP
Remove protective shipping material (i.e., plastic wrap, and/or optional shipping box) from dryer.
IMPORTANT: The dryer must be transported and handled in an upright position at ALL times.
The dryer can be moved to its final location while still attached to the skid or with the skid removed. To unskid
the dryer, locate and remove the four (4) lag bolts securing the base of the dryer to the wooden skid. Two (2) are
located at the rear base (remove the back panel for access) and two (2) are located in the bottom of the lint
chamber. To remove the two (2) lag bolts located in the lint chamber area, remove the lint drawer and the three
(3) Phillips head screws securing lint door in place.

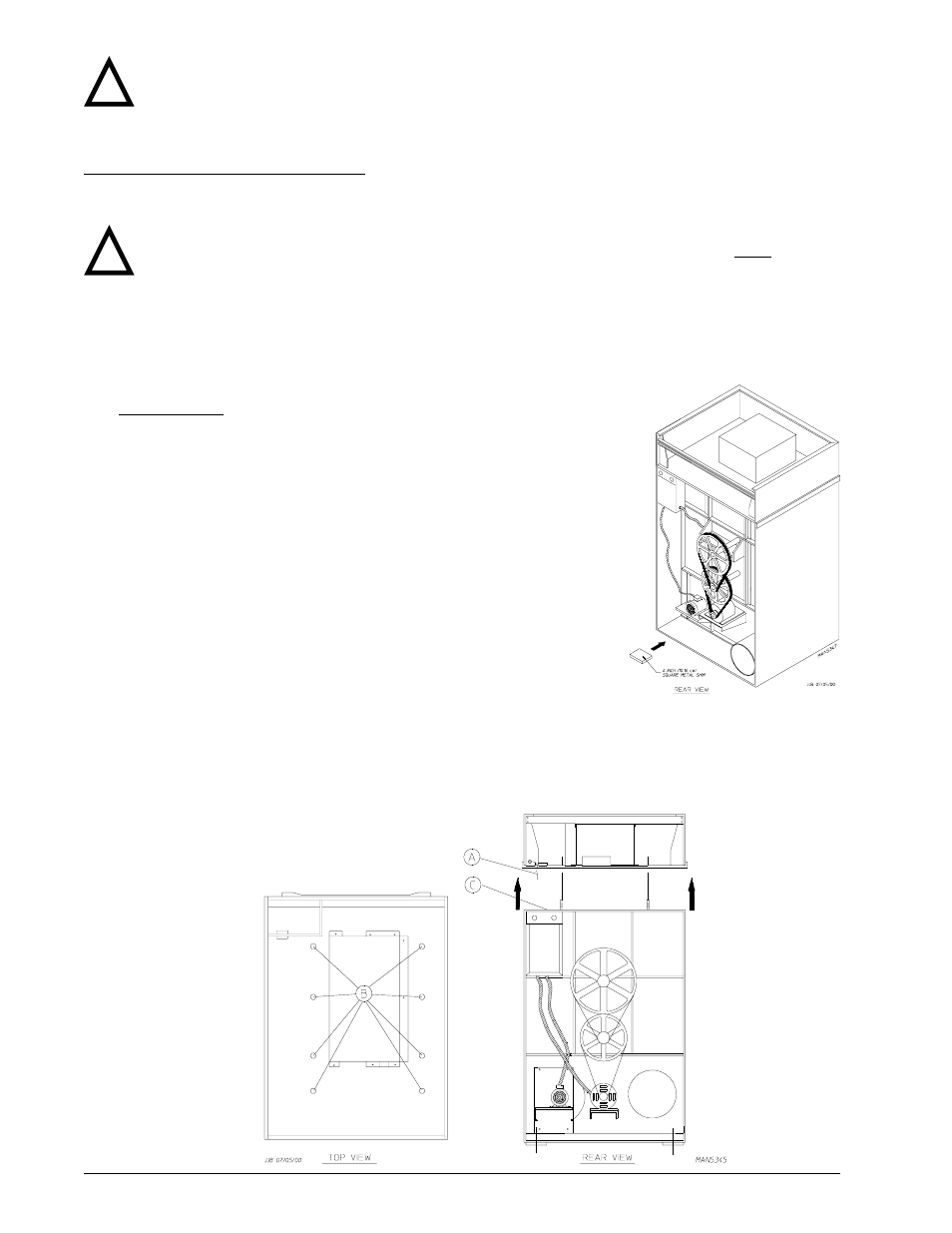

1. Leveling Dryer
To level dryer, place 4-inch (10.16 cm) square metal shims (refer to
the illustration on the right) or other suitable material under the
base pads. It is suggested that the dryer be tilted slightly to the rear.
2. If more headroom is needed when moving dryer into position, the top
console (module) may be removed. Use the following instructions to
remove the top console (module).
a. Disconnect the ground wire (A) at the rear upper left hand corner
of dryer.
b. Remove the eight (8) sets of nuts and washers (B) holding the
console (module) to base.
c. Open the control door/control panel and disconnect the white 15-pin plug connector (C) (refer to the
illustration below) located in the base of the control box.
d. Disconnect white plug connector located outside back side of the control box (provides power to heat
circuit).
e. Lift the console (module) off the dryer base.
!
!
