Ultra Start 600 Series - Manual (Page 3)

Green
Green
Green
Red
Red
Blue
Blue
Blue
Black
Pink
Pink
Door Lock Output
Door Unlock Output
12vts Low Current
Priority Output
(-)500ma Output
(-)500ma Output
(-)500ma Output
(+)500ma Output
Programmable - See menu 1, Setting 3
Programmable - See menu 1, Setting 3
Programmable - See menu 1, Setting 3
12vt inverter Output-Low Current
Sensor Full - Warn
Sensor Pre - Warn
Sensor Ground
Sensor Power
(-) When Disarmed
Horn / Channel 5.
(+) Disconnect
(-)500ma Output
(-)500ma Output
(+)500ma Input
(-)500ma Input
(-)500ma Input
(-)500ma Output
(+)500ma Output
Negative Output When Disarmed
Programmable - See menu 2, Setting 7
Triggers when 12vt circuit is broken
Negative trigger input
Negative trigger input
Sensor ground output
Sensor power output
-
-
2 PIN RED
2 PIN BLUE
4 PIN RED
4 PIN WHITE
4 PIN WHITE
3 PIN WHITE
SIDE VIEW
SATELLITE LINK PLUG
LED
Valet Switch
Main
Alar
m
Har
ness
(-) Trunk Release Output Grey (-) Trunk Release 500ma Output
Connect to chassis ground Black Ground (-) Input
Connect to main Ignition Yellow Ignition Input (+) Input
12vt constant power Red Main Power (+) Input
Pink Channel 4 500ma Output Programmable - Menu 2
Green (-) Door Input (-) Input Connect to (-) door pin
Purple (+) Door Input (+) Input Connect to (+) door pin
Blue Hood Input (-) Input Connect to hood pin
Brown (+) Siren 3amp Output Connect to Siren
White (+) Park Lights 15amp Output Connect to park lights
Blk/White Dome Light Relay (+.-) Output See page. 4
Blk/White Dome Light Relay (+.-) Input See page. 4
Orange (-) When Armed 500ma Output (-) Output while armed
**500ma outputs are low current and are designed to activate relays.
Built-in Starter Disable relay (Normally Connected 87a & 30). See page. 5
Starter
Disable

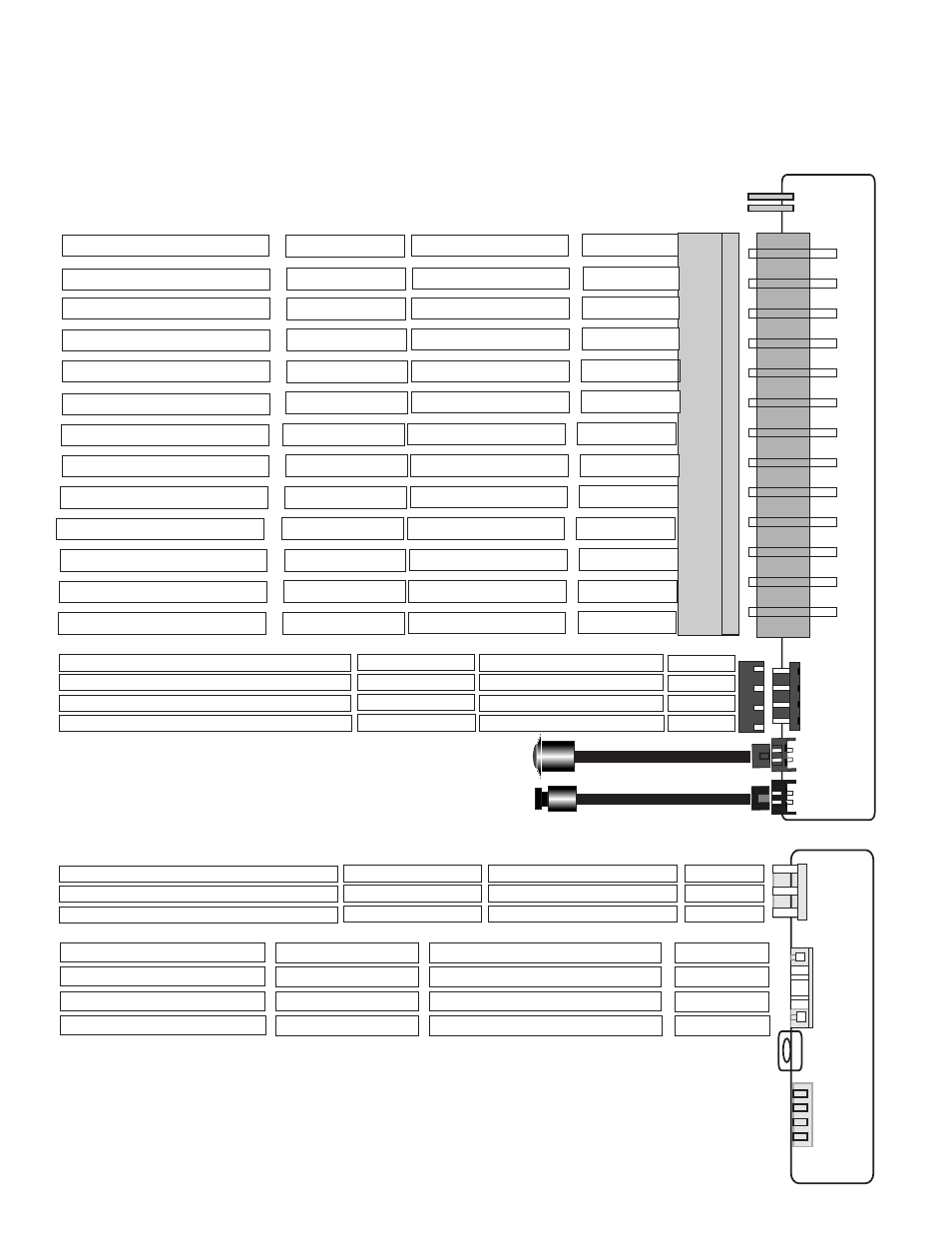

Wiring Diagram
PAGE 3
SECURITY SYSTEM
INSTALL GUIDE
