Contemporary Research
5 QMOD-HDSC

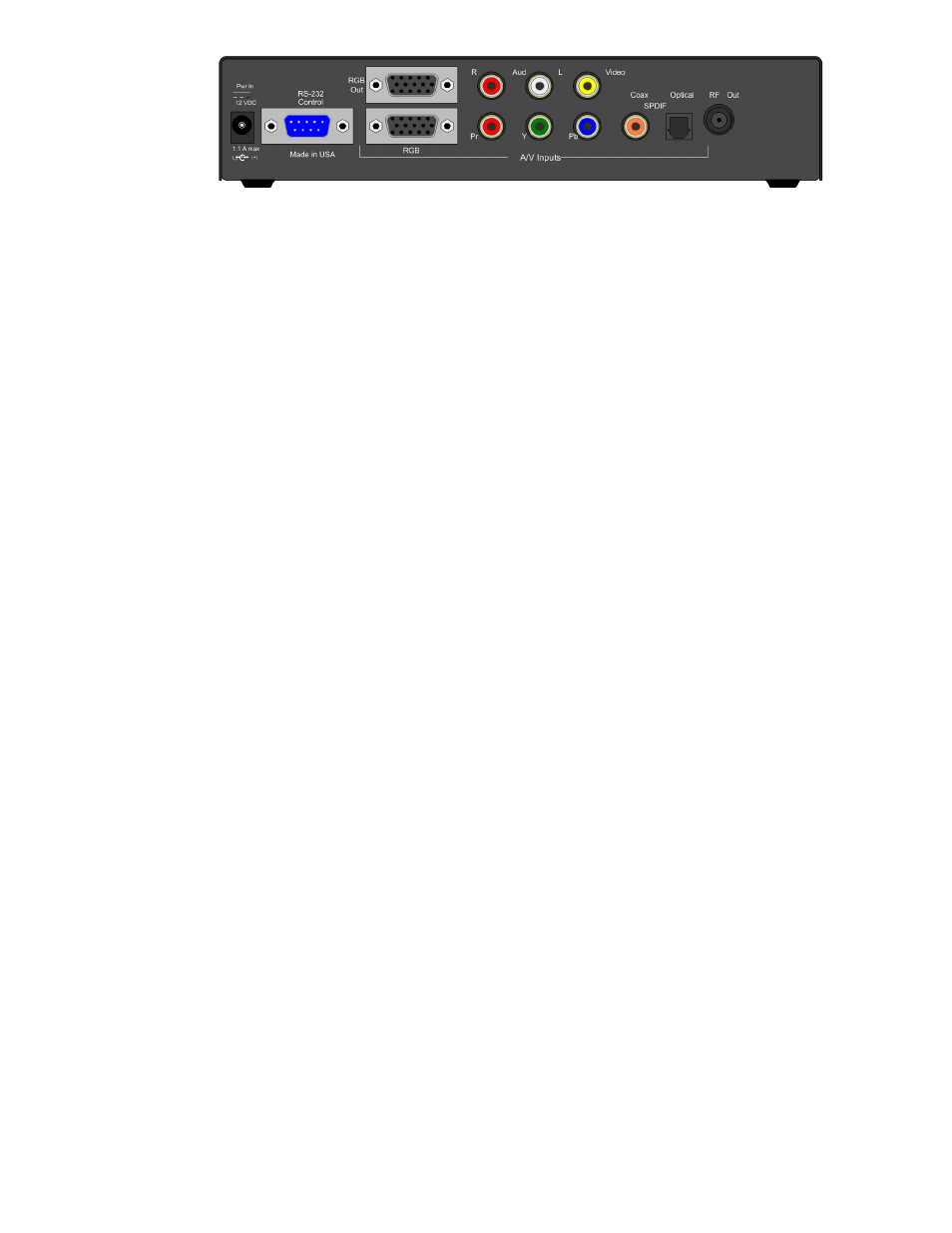

Rear Panel
Power
RS-232
Video Inputs
RGB Output
Audio Inputs
RF Out
2.1mm coaxial jack (inside center conductor positive)
0.8 A maximum, 11.5 to 13.5 VDC, 12 VDC typical
DB-9 male, RS-232 data link to control system
300 to 19,200 baud (9600 default), 8 data bits, no parity, 1 stop bit
RGB: RGBHV DB-15 female
Component: RCA Pr, Pb, Y (1080i/720p/480p/480i), available if RGB not wired
Composite: Included in the input block, but is not operational
RGBHV DB-15 female buffered
Digital SPDIF: Coax and TOSlink optical output, PCM 48K sample rate
Analog L and R: 2 stereo RCA female jacks
Inputs assignable to video inputs
‘F’, female, 75 ohm impedance
Agile, channels 2-135 (48-860 MHz), standard, HRC, or IRC spacing
6 MHz bandwidth fits any open channel without interference to adjacent channels
1 KHz resolution, +/- 30 ppm accuracy, +/- 35 ppm stability
29 dBmV typical output power, attenuated in 5 steps, approx 4 dB
Includes PS12-1 Switching power supply, 1A 12 VDC, fits in typical AC power strips
Options RK1 Single Rack Kit
RK2 Dual Rack Kit
CC-232 RS-232 Cable
Firmware 5.0 adds 720x480i on Component, 1280 x 800 resolution
4.9 adds 1080p, EDID, and improved scaling for all settings
4.8 adds improved 1280x720 operation with off-standard PC video cards
5.0 1080p ingest with EDID
5.2 FPGA resets after 2 encoder resets
5.5 Expands 1400 x 900 parameters
5.6 Expands 1080p parameters to accept Apple 1080p, improves EDID database
5.8 Fixes encoding issues with 1080i/480i Component video
