Mounting Rail and Vibration
Isolation
ClimaCool recommends locking down the chiller to a
concrete base or to three 4” base mounting rails using the
six bolt holes provided in each base pan. Due to the low
vibration of the modules, ClimaCool does not require the
application of spring isolators or pads. Should isolators or
pads be desired install in accordance with Figures 1 and 2.

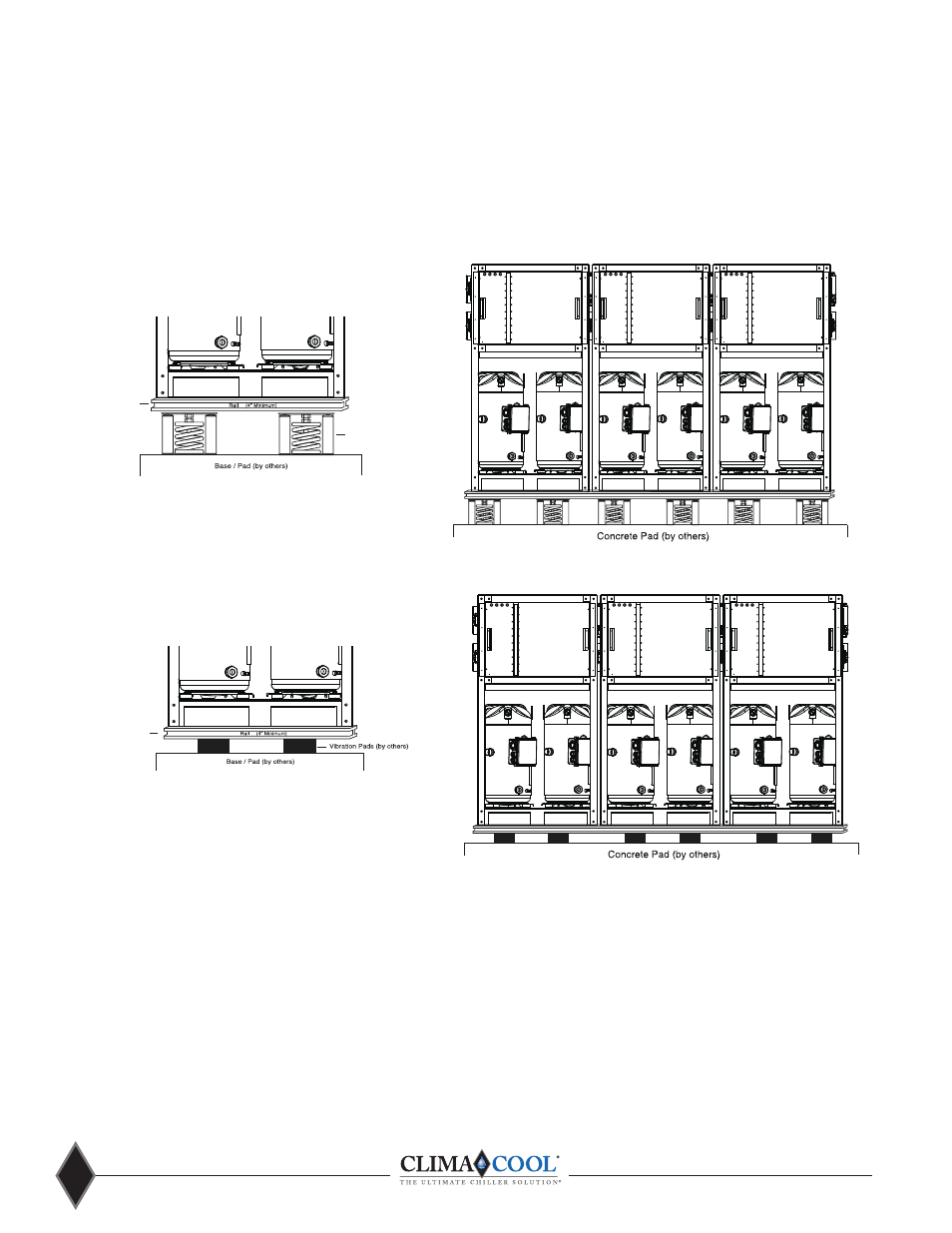

Figure 1 - Spring Vibration Isolators Option
Figure 2 – Vibration Isolation Pads Option
4” Rail Minimum
Recommended
(by others)
Spring Vibration
Isolators (by others)
4” Rail Minimum
Recommended
(by others)
Note: Size and weight distribution is to be determined by a qualifi ed structural engineer per individual job requirements.
