Installation Instructions NS1D12-20-28-36-41
5
5. Pull down on upper spring handle, and push up on lower
spring handle.
6. Insert door into rack, aligning the spring handle ends with
the holes in the door support at top and bottom of rack. (See
Figure 5)

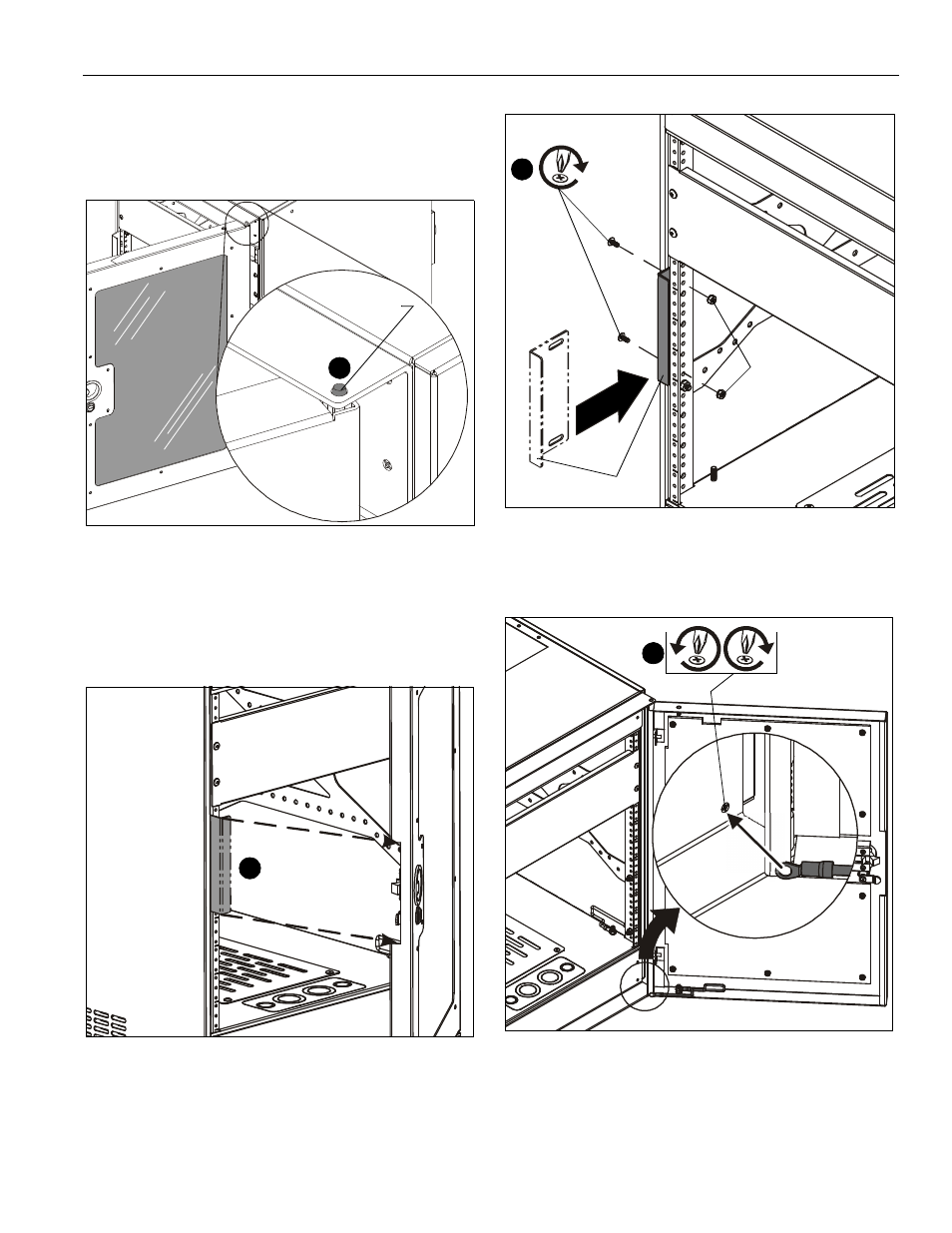

Figure 5
7. Push spring handle end into door supports, and re-latch
spring handle.
8. Determine location for door catch (B) by matching up
handle cut-out in door with correct position on rack. (See
Figure 6)
Figure 6
9. Add door catch (B) to rack rail using two 1/4-20 x 5/8"
screws (E) and two 1/4-20 lock nuts (F). (See Figure 7)
Figure 7
10. Loosen screw in lower door support, attach door grounding
wire, and tighten screw to finish connection. (See Figure 8)
Figure 8
