PACCC2 Installation Instructions
6
2. Connect height-adjust uprights (B) to uprights on PACLR2
using four #10-24 x 1/2" button head cap screws (G) and
four #10 washers (J). (See Figure 3)

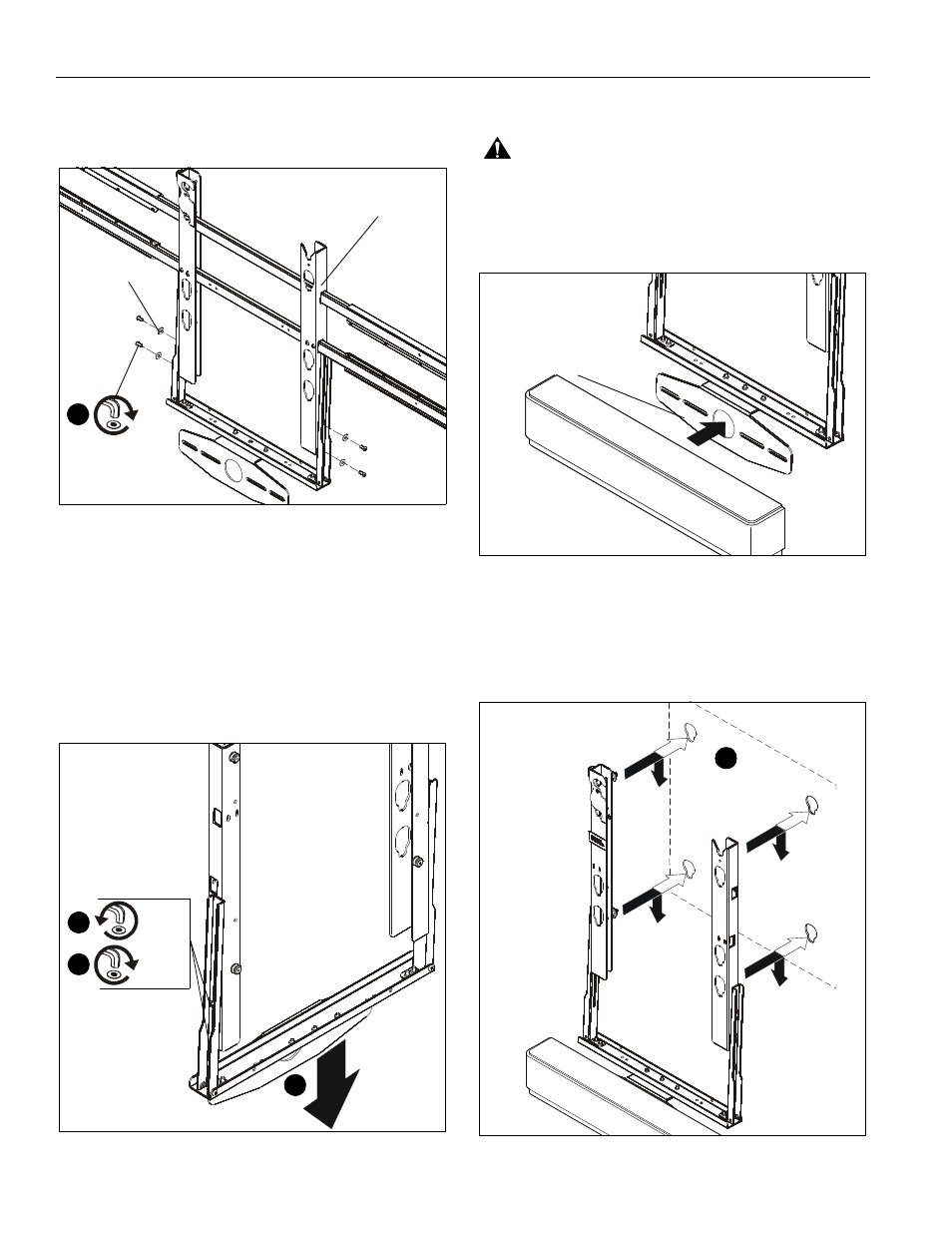

Figure 3
Install Speaker
1. Loosen four #10-24 x 1/2" button head cap screws (G)
securing height-adjust uprights (B) to left and right uprights.
(See Figure 4)
2. Reposition speaker mounting bracket to lowest position.
(See Figure 4)
3. Tighten four #10-24 x 1/2" button head cap screws (G)
securing height-adjust uprights (B) to left and right uprights.
(See Figure 4)
Figure 4
4. Mount speaker to speaker mounting bracket following the
instructions provided with speaker. (See Figure 5)
WARNING: IMPROPER INSTALLATION CAN LEAD TO
SEVERE PERSONAL INJURY OR DAMAGE TO
EQUIPMENT! ALWAYS follow speaker manufacturers
installation instructions when mounting speaker to avoid
possible damage to speaker.
Figure 5
Install Accessory to Mount and Display to
Accessory
1. Install accessory to mount following the installation
instructions provided with the mount. (See Figure 6)
Figure 6
2
PACLR2
(G) x 4
(J) x 4
3
2
1 (G) x 4
(G) X 4
Speaker Mounting Bracket
1
