PACLR1 Installation Instructions
6

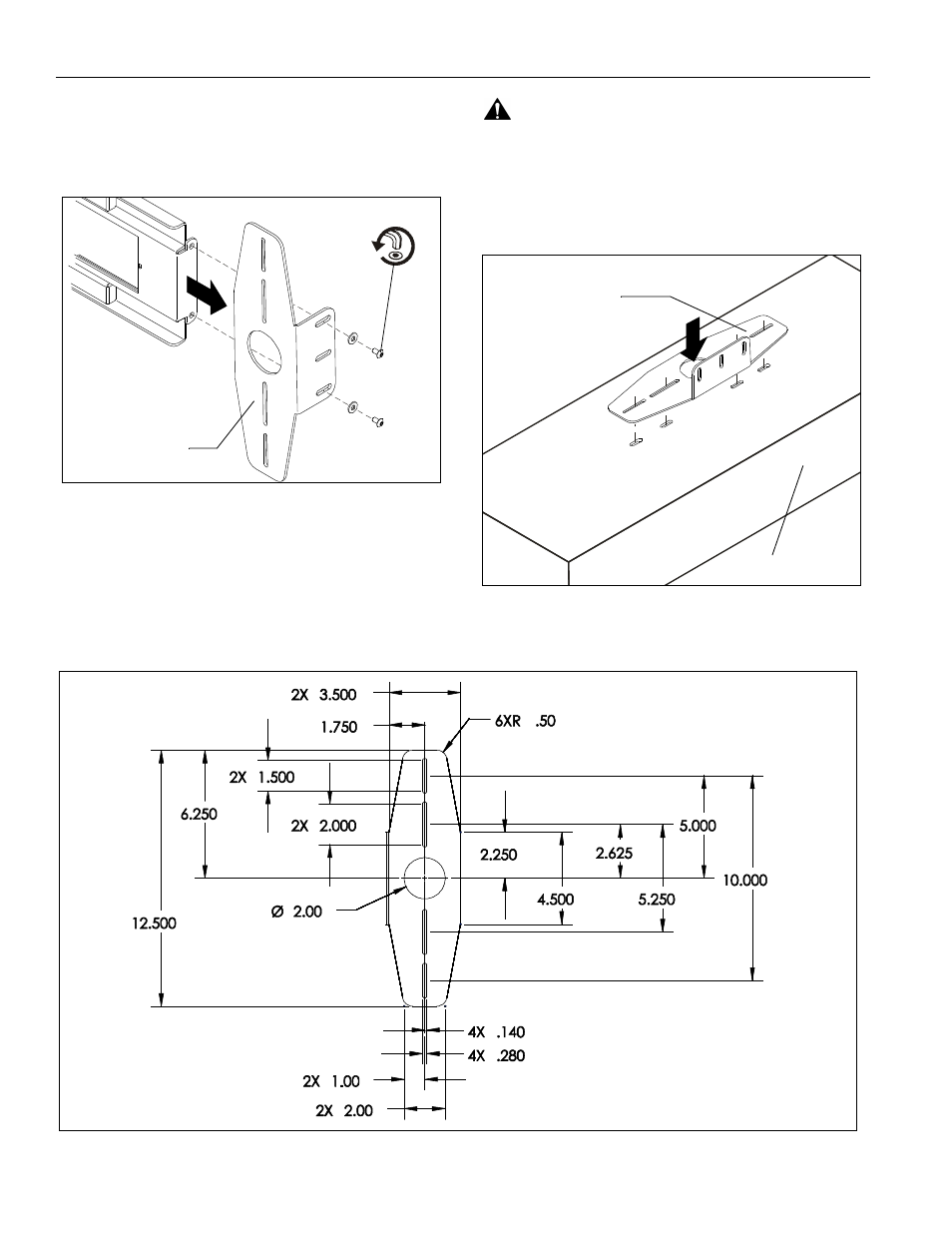

1. Remove speaker mounting brackets from speaker
mounting rails by removing four button head cap screws
and four washers. (See Figure 6)
2. Set hardware aside for reuse.
Figure 6
IMPORTANT ! : If orientation of speaker mounting bracket
has changed as a result of speaker rail adjustment verify proper
orientation of bracket with speaker before continuing.
3. Install left and right speaker mounting brackets to speakers
using the installation instructions provided with the
speakers and the dimensional drawing below.
(See Figure 7) and (See Figure 8)
WARNING: IMPROPER INSTALLATION CAN LEAD TO
SPEAKERS FALLING RESULTING IN SEVERE PERSONAL
INJURY OR DAMAGE TO EQUIPMENT. Always consult with
the speaker manufacturer before drilling into speakers or
installing in a manner inconsistent with the instructions
provided with the speakers.
Figure 7
X4
Speaker Mounting
Bracket
(1each end)
Speaker Mounting
Bracket
(1 each end)
Speaker
Figure 8
