TA350 Installation Instructions
6
Install Attachment Bracket to Faceplate
NOTE: TA350 center channel speaker brackets may be
installed above or below the display.
TS525 or iCF50 Installation
NOTE: Display does NOT have to be removed to attach
bracket to TS525 or iCF50 faceplate.
1. Use four #10-24 x 3/8" button head cap screws (F) to
connect attachment bracket (A) to upper or lower holes on
swing arm faceplate. (See Figure 5) and (See Figure 6)

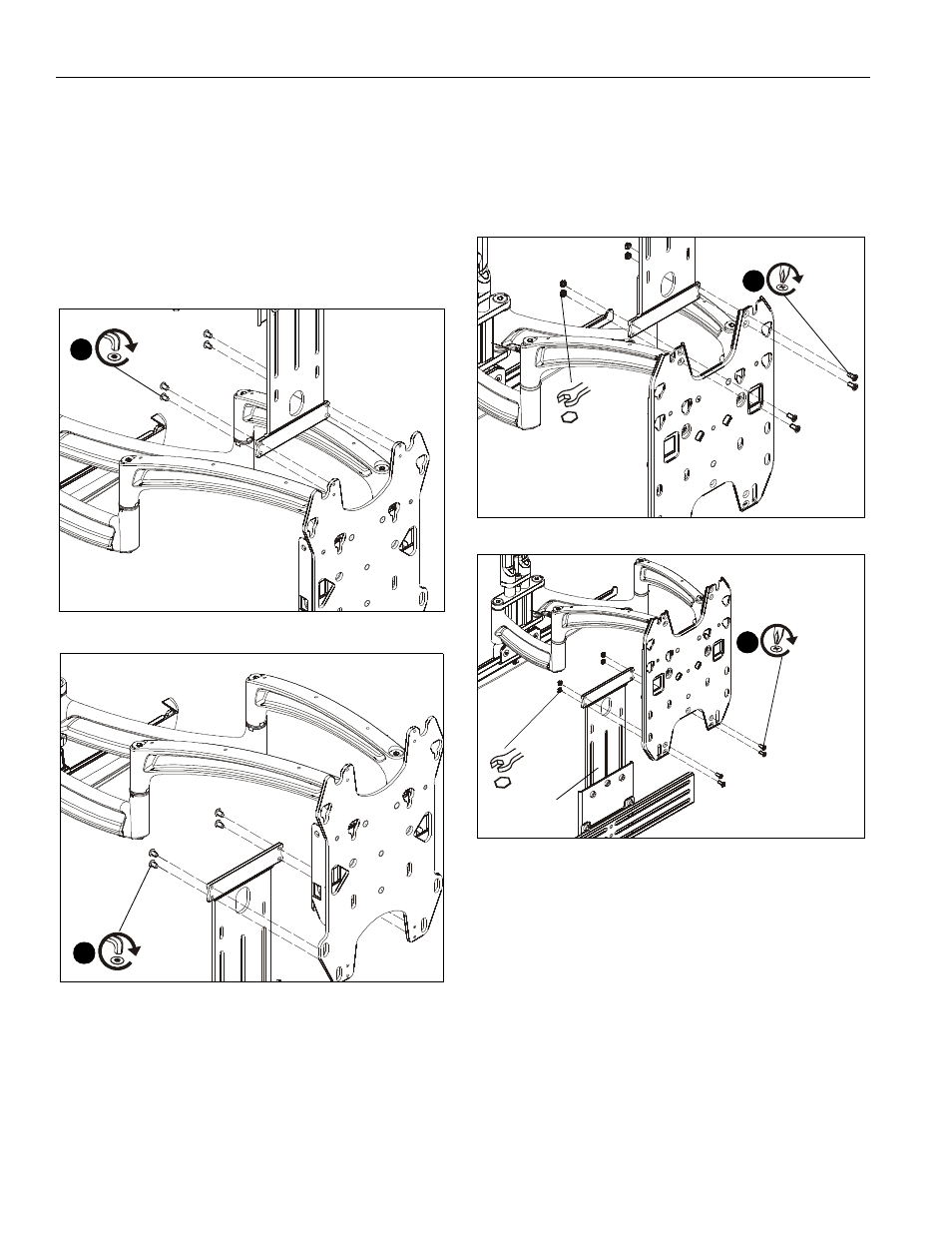

Figure 5
Figure 6
TS3XX or iCF30 Installation
1. If already installed, remove display from faceplate. See
swing arm installation instructions for details.
2. Use four #10-24 x 1/2" Phillips flat head cap screws (J) and
four #10-24 lock nuts (H) to connect attachment bracket (A)
to faceplate. (See Figure 7) and (See Figure 8)
Figure 7
Figure 8
3. Reinstall display to faceplate. See swing arm installation
instructions for details.
(display not shown for clarity)
(F) x 4 1
(top installation)
(display not shown for clarity)
(F) x 4 1
(bottom installation)
(top installation)
(H) x 4
2 (J) x 4
(bottom installation)
2 (J) x 4
(H) x 4
(A)
