Installation Instructions TA350
5
Installation
Bracket Assembly
With Short Extension Bracket

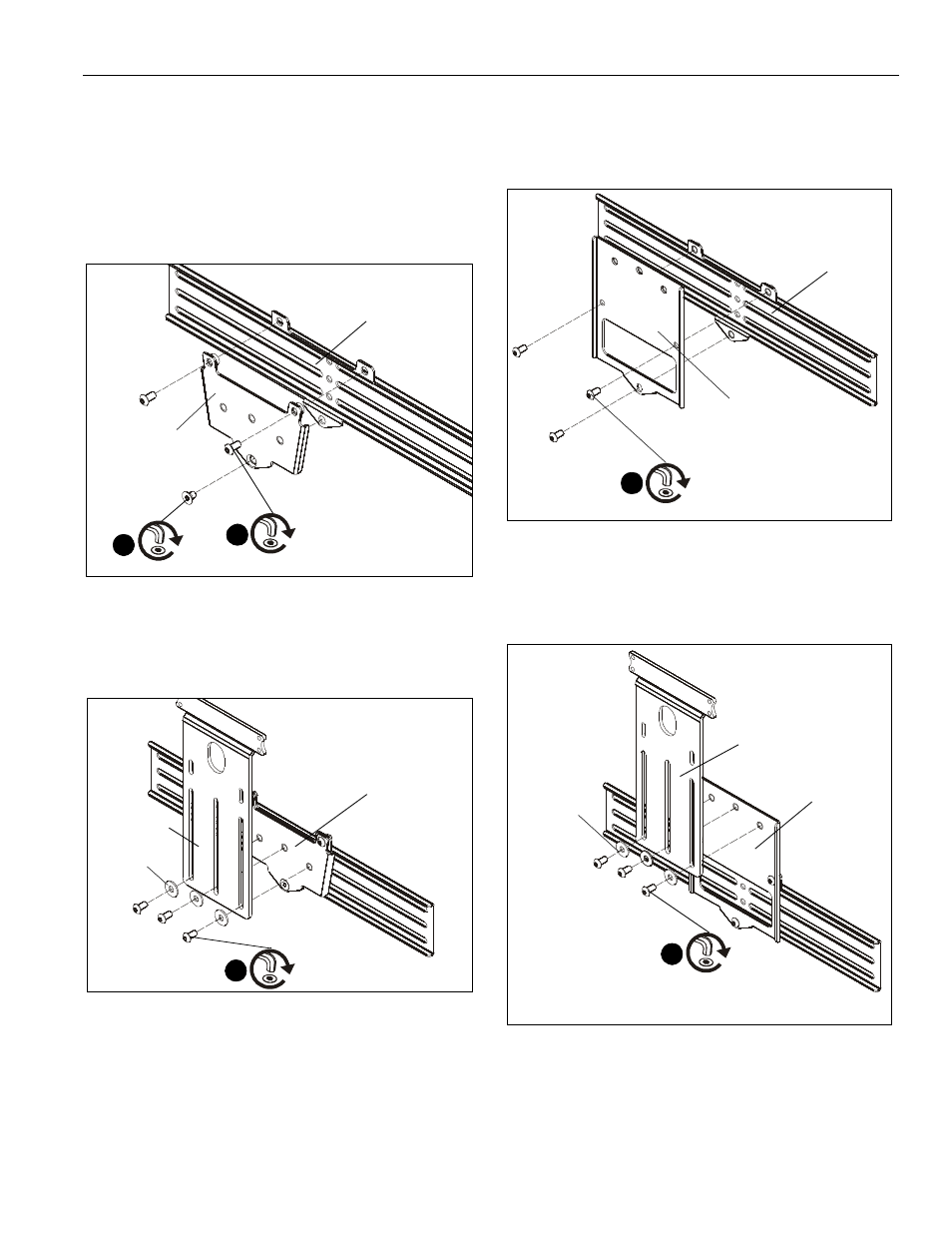

1. Use two 1/4-20 x 3/8" button head cap screws (E) and one
1/4-20 x 3/8" flat head cap screw (G) to attach short
extension bracket (D) to center speaker bracket (B). (See
Figure 1)
Figure 1
2. Use three 1/4-20 x 3/8" button head cap screws (E) and
three 1/4" washers (K) to secure attachment bracket (A) to
short extension bracket (D). (See Figure 2)
Figure 2
With Long Extension Bracket
1. Use three 1/4-20 x 3/8" button head cap screws (E) to
attach long extension bracket (C) to center speaker bracket
(B). (See Figure 3)
Figure 3
2. Use three 1/4-20 x 3/8" button head cap screws (E) and
three 1/4" washers (K) to secure attachment bracket (A) to
long extension bracket (C). (See Figure 4)
Figure 4
(E) x 2
(G)
1
1
(D)
(B)
(E) x 3 2
(D)
(A)
(K) x 3
1 (E) x 3
(C)
(B)
(A)
(C)
(E) x 3
(K) x 3
2
