MAC119 Installation Instructions
6
Mount Installation
After determining the site meets the installation requirements:
1. Identify desired mounting location on wall.
2. Using a stud finder or similar method locate studs.
3. Align mounting holes in mount with studs making sure
mounting holes are centered on studs.
WARNING: IMPROPER INSTALLATION CAN LEAD TO
EQUIPMENT FALLING CAUSING SERIOUS PERSONAL
INJURY OR DAMAGE TO EQUIPMENT! Make sure upper
and lower mounting holes are used on both sides of both the
upper and lower wall plates (A)! (See Figure 3)
4. Mark location of eight mounting holes on wall.
5. Drill eight 1/2" (Ø13mm) holes.

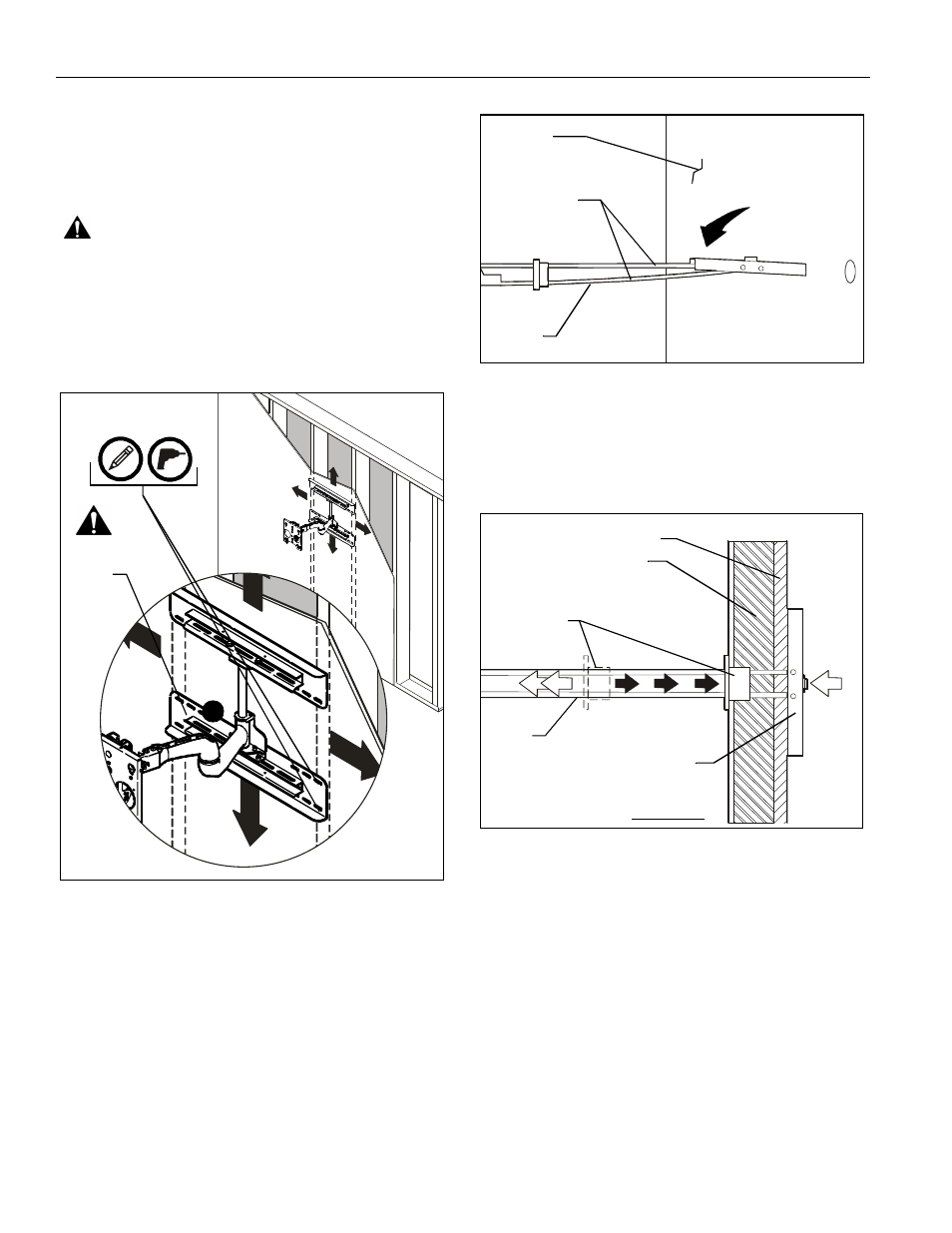

Figure 3
6. Hold metal channel on anchor (F) flat alongside plastic
straps and slide channel through hole.
(See Figure 4)
Figure 4
7. Holding plastic straps on anchor (F), pull anchor away from
wall until channel rests flush behind wall making sure
anchor channel is positioned vertically on stud as show in
figues below. (See Figure 5)
8. Slide plastic cap on anchor (F) towards wall until flange of
cap is flush with wall. (See Figure 5)
Figure 5
9. Snap off plastic straps on anchor at wall by pushing side to
side, snapping off straps level with flange of plastic
cap.(See Figure 6)
10. Repeat steps 6 through 9 for each mounting hole.
1/2" (Ø13mm) x8
Mounting holes
centered on
studs
5
(F) x8
Drywall
Plastic Straps
Plastic Cap
Steel Stud
Drywall
Anchor Metal Channel
SIDE VIEW
(F) x8
