MAC-251 Installation Instructions
4

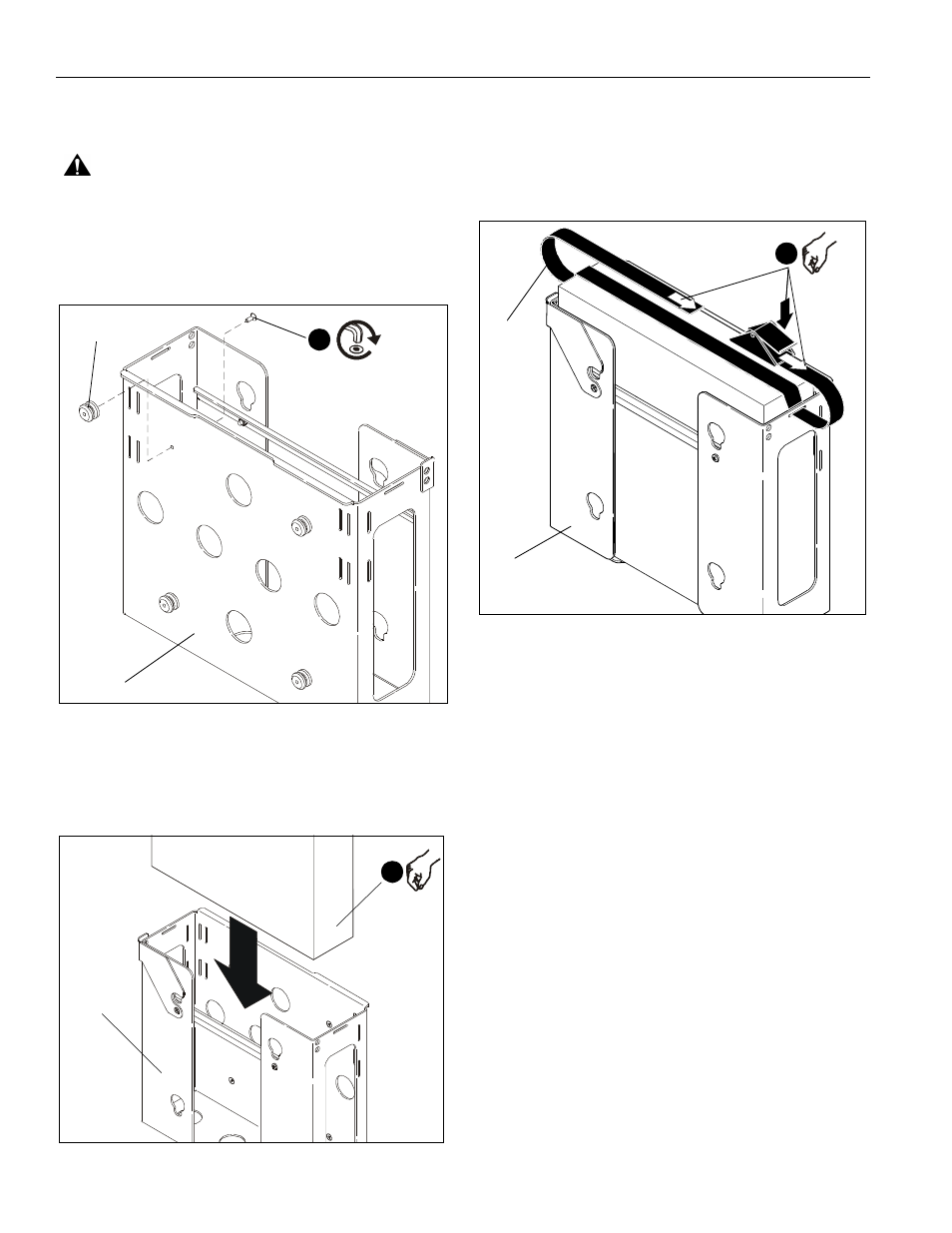

ASSEMBLY AND INSTALLATION
Assemble Mounting Buttons to CPU Holder
WARNING: IMPROPER INSTALLATION CAN LEAD TO
CPU ADAPTER FALLING! Mounting buttons must be
securely fastened to device rack.
1. Install four mounting buttons (C) to CPU adapter (A) using
four 10-24 x 1/2" flat head cap screws (D), and a 1/8" hex
wrench (E). (See Figure 1)
Figure 1
Assemble CPU to CPU Adapter
1. Place CPU into CPU adapter (A) making certain
connections on CPU are oriented with cable access
opening in sides of CPU adapter. (See Figure 2)
Figure 2
Assemble Mounting Strap to CPU Adapter
1. Install web strap (B) into CPU adapter, around CPU, and
secure. (See Figure 3)
NOTE: Strap can also be installed so that it wraps around sides
of CPU adapter.
Figure 3
(A)
(C) x 4
1 (D) x 4
1
(A)
CPU
(B)
1
CPU
(A)
