Model: PAC-124 Installation Instructions
4

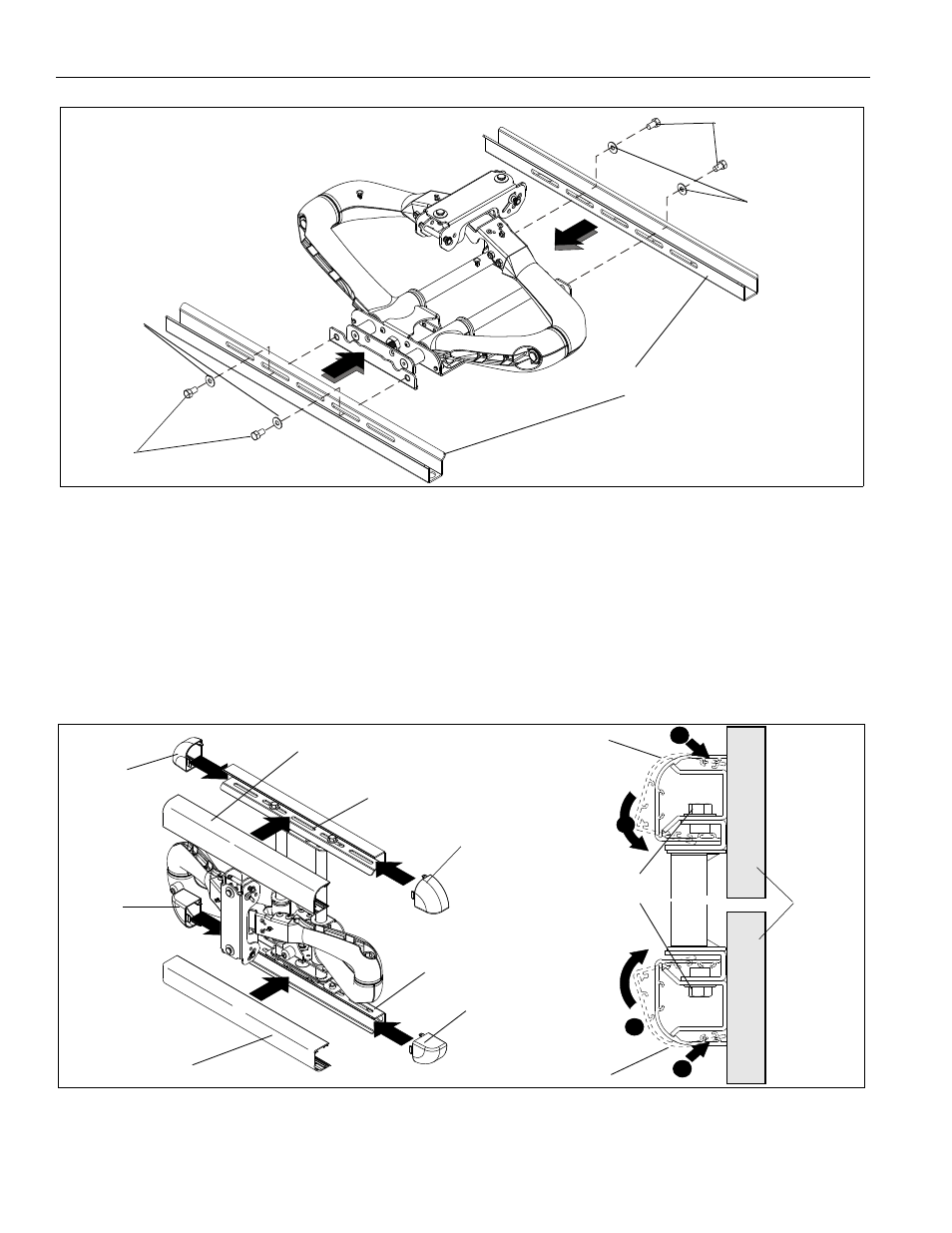

Figure 4: Install 24" Wall Channel
3. Install mount following the instructions provided with mount.
IMPORTANT ! : Mounting holes must be located based upon 24" stud centers when installing mount.
4. Install 24" upper wall channel cover by tipping cover top down and positioning as shown in STEP A of figure 5 below.
5. Lower bottom of upper wall channel and tap firmly across bottom of channel to lock in place as shown in STEP B of
figure 5 below.
6. Install R.H. and L.H. end caps by aligning tabs on end caps with slots in wall channel and sliding tabs into channel
until end cap is flush with wall channel cover. (See Figure 5)
7. Repeat steps 4 through 6 above for lower wall channel cover and end caps.
Figure 5: Install 24" Uppert and Lower Wall Channel Covers
24" Wall Channel
Flat Washer
Hex Head Cap Screw
Flat Washer
Hex Head Cap Screw
24" Wall Channel
24" Wall Channel
End Cap
End Cap
End Cap
End Cap
Wall Channel Cover
Wall Channel Cover
Upper Wall Channel
Channel Cover
Lower Wall Channel
Channel Cover
Wall
A
B
B
A
