Installation Instructions Model: PAC-124
3
KIT INSTALLATION
16" End Cap, Channel Cover and Wall Channel Removal
1. Carefully lay mount assembly down on back.
2. Firmly grasp four end caps and pull outward, away from mount. (See Figure 2)
3. Slide wall channel cover and pull outward, away from mount. (See Figure 2)

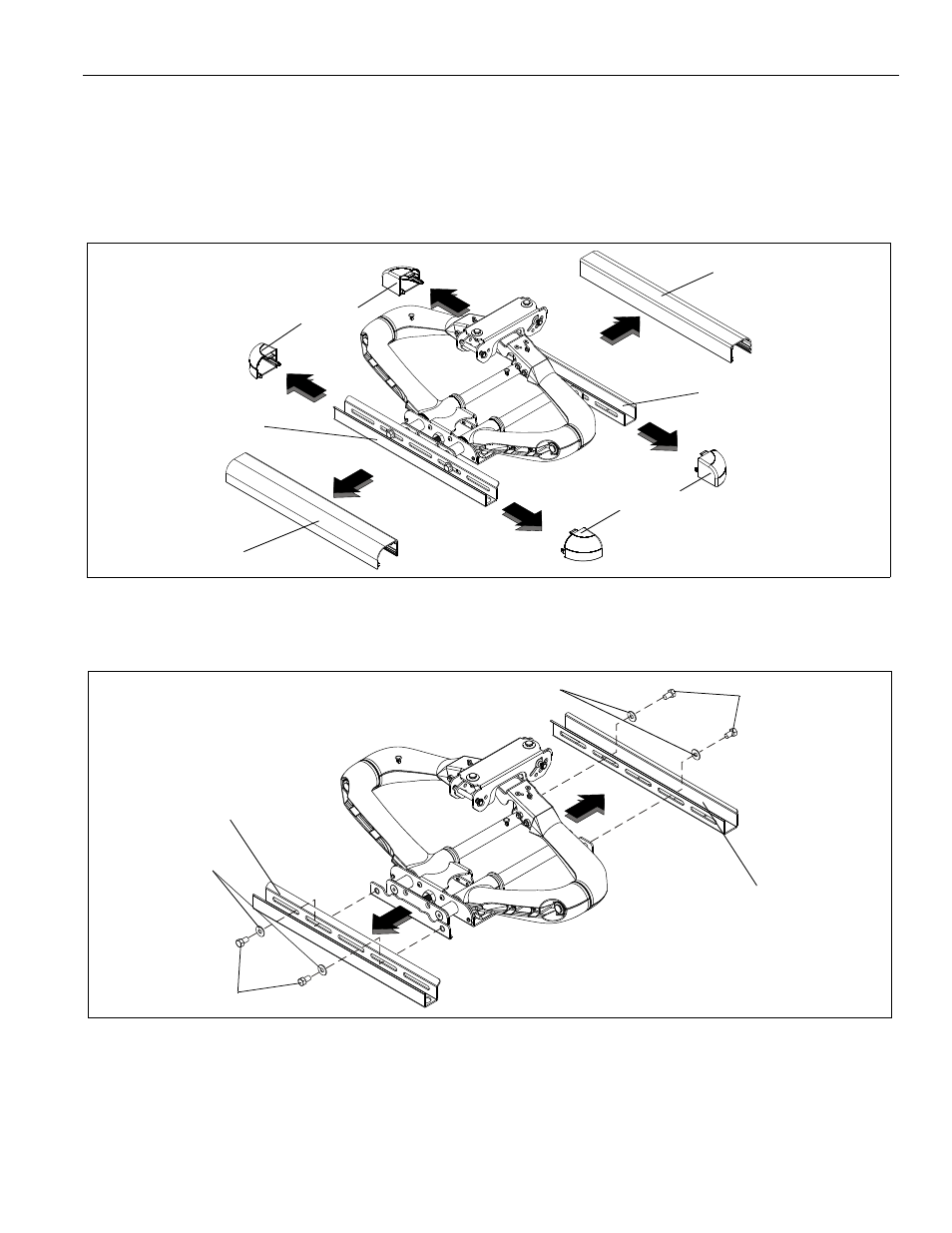

Figure 2: 16" Channel Cover and End Cap Removal (faceplate removed for clarity)
4. Remove four HHCS and four FW securing upper and lower wall channels to mount. (See Figure 3)
5. Set hardware aside for reuse.
Figure 3: 16" Wall Channel Removal (faceplate removed for clarity)
24" Wall Channel, End Cap, and Channel Cover Installation
1. Secure 24" upper and lower wall channels to mount using four FW and four BHCS set aside during 16" wall channel
removal. (See Figure 4)
2. Tighten all screws.
16" Wall Channel
16" Wall Channel Cover
16" Wall Channel
16" Wall Channel Cover
End Cap
End Cap
16" Wall Channel
16" Wall Channel
Flat Washer
Hex Head Cap Screw
Flat Washer
Hex Head Cap Screw
