Installation Instructions FCA103
7

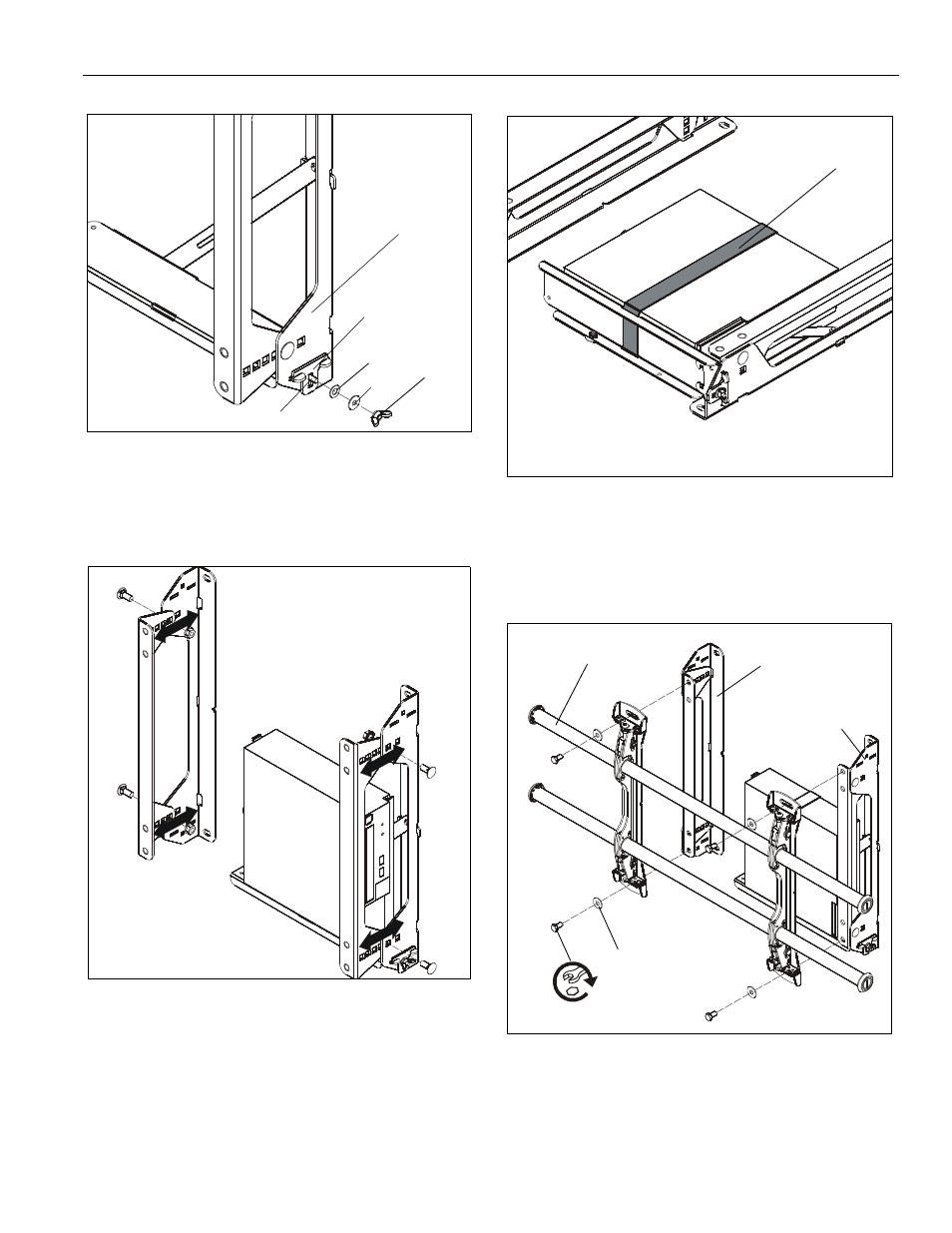

Figure 5
3. Adjust depth of brackets depending on depth of CPU to
install. Remove four screws and nuts holding adjustment
screws in place and replace after desired depth is acheived.
(See Figure 6)
Figure 6
4. Make all CPU connections and place CPU securely on
shelf.
5. Use hook and loop strap (J) to secure CPU to shelf (C).
(See Figure 7)
Figure 7
Installing Fusion Mount to FCA103
1. Use four 5/16-18 x 5/8" hex head bolts (D) and four 5/16"
washers (G) to secure Fusion rail mount to brackets (A and
B). (See Figure 8)
Figure 8
2. Install display to Fusion mount following the Fusion mount’s
installation instructions.
(E)
(K)
(F)
(H)
(L)
(B)
(J)
(bottom view)
(D) x 4
(G) x 4
Fusion rail mount (example) (A)
(B)
