KSA1019 Installation Instructions
6
DISPLAY INSTALLATION
The mounting holes on the back of the display will be flush with
the back surface, or recessed into the back. Refer to the
applicable installation procedure below.
NOTE: Ensure Centris Turntite head is able to swivel and tilt
easily, yet still be tight enough to hold display in desired
position. Adjust as required before proceeding. See
Adjustments section for details.
Swing Arm Flush Display Installation
CAUTION: IMPROPER INSTALLATION CAN LEAD TO
DISPLAY FALLING CAUSING SERIOUS PERSONAL
INJURY OR DAMAGE TO EQUIPMENT! Using screws of
improper size may damage your display! Proper screws will
easily and completely thread into display mounting holes.
CAUTION: IMPROPER INSTALLATION CAN LEAD TO
DISPLAY FALLING CAUSING SERIOUS PERSONAL
INJURY OR DAMAGE TO EQUIPMENT! Inadequate thread
engagement in display may cause display to fall! Back out
screws ONLY as necessary to allow installation of Centris
Turntite head!
1. Using Phillips screwdriver, carefully install two M4 x 12mm
Phillips screws (B) into the upper mounting holes on the
display. Thread screws completely into display, then back
out 3 complete turns. (See Figure 4)
2. Align two screws (B) (installed on the back of the display in
the previous step) with the two top teardrop mounting holes
on the Centris cup.
CAUTION: IMPROPER INSTALLATION CAN LEAD TO
DISPLAY FALLING CAUSING SERIOUS PERSONAL
INJURY OR DAMAGE TO EQUIPMENT! Smaller area of
teardrop mounting holes must be facing downward for proper
installation. Reposition Centris Turntite head if required.
3. Using Phillips screwdriver, install two screws M4 x 12mm
Phillips screws (B) through the lower mounting holes in
Centris Turntite head into the display. (See Figure 4)
4. Tighten all four screws (B). Do not overtighten!

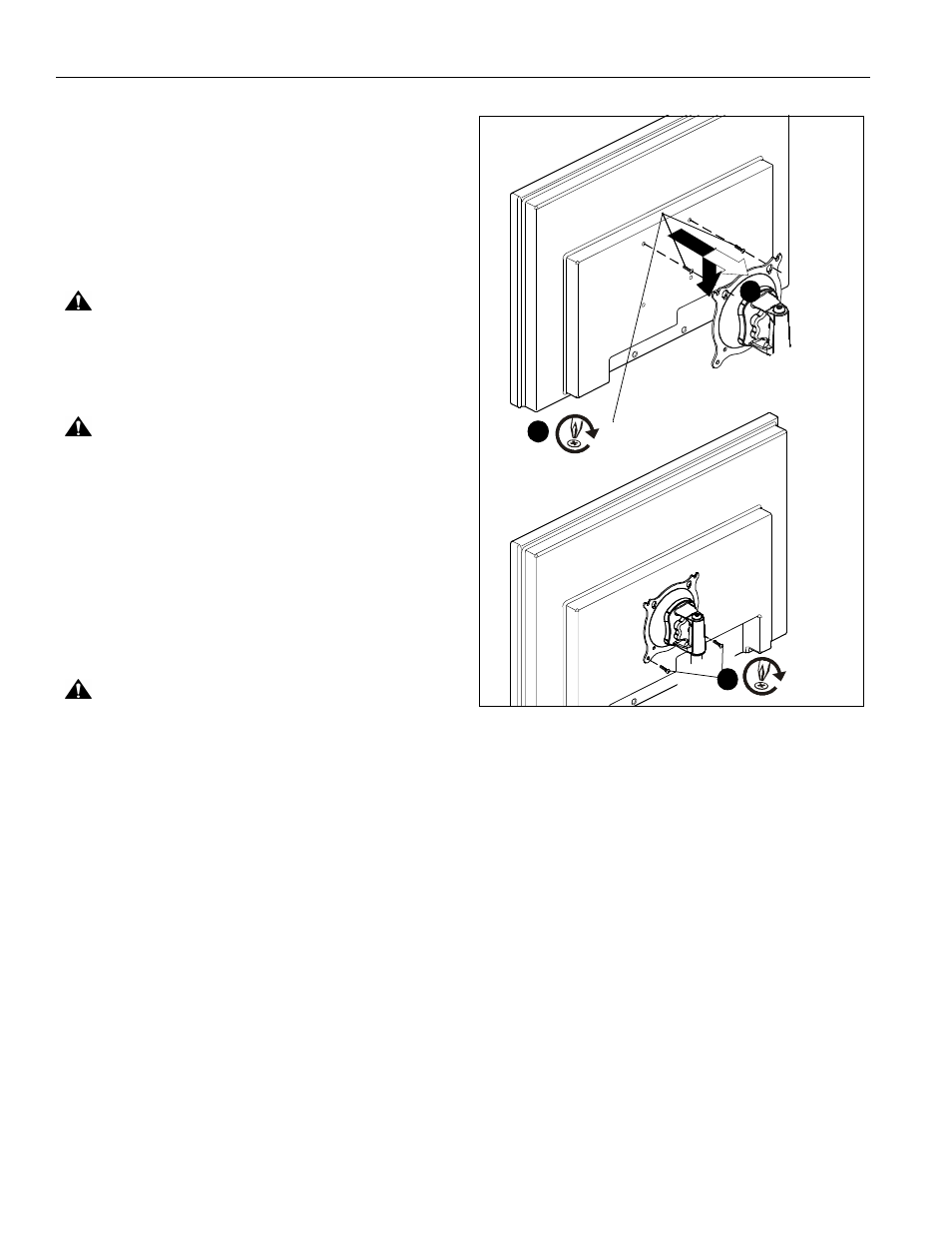

Figure 4
1 (B) x 2
3
(B) x 2
2
