Installation Instructions
Model: PAC-200
3
TOOLS REQUIRED FOR INSTALLATION
•
5/32" Hex Key (included)
•
3/16" Hex Key (included)
NOTE: Other tools may be required depending on your
method of installation.
PARTS
After unpacking carton, inspect and verify contents (See
Figure 1). If any listed parts are missing or damaged,
contact Chief Customer Service at 1-800-582-6480.

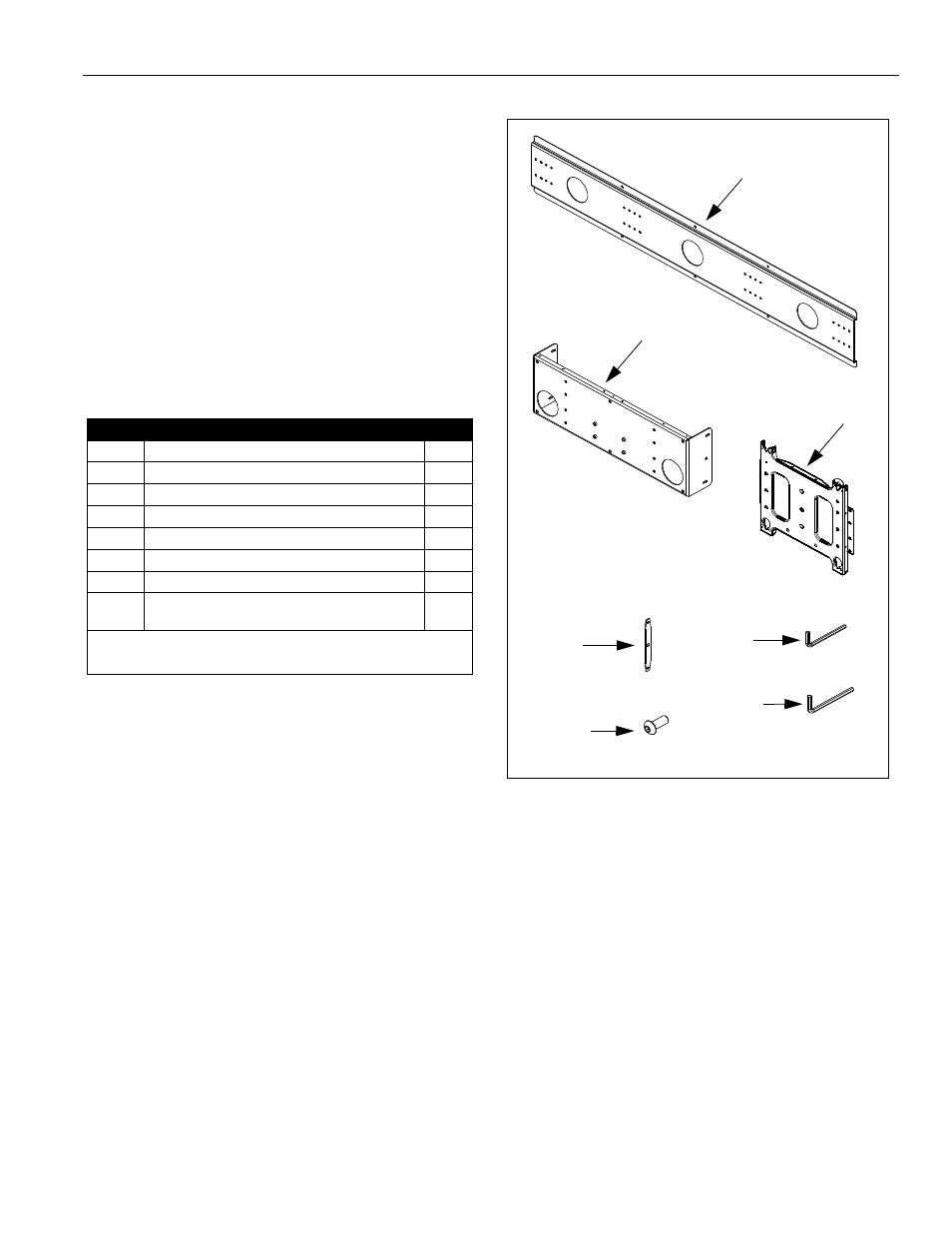

Figure 1: Parts
Table 1: Parts
Item
Description
Qty
10
BRACKET, Dual Mount
1
20
HEAD, Dual Mount, Tilt
1
30
FACEPLATE, Assembly, 14" Pattern
1
40
SPREADER, Head Tilt
2
50
SCREW, Button Head Cap, 5/16"-18 x 3/4"
6
60
KEY, Hex, 5/32"
1
70
KEY, Hex, 3/16"
1
INTERFACE, Display, 14" Button Pattern
(Required; not included)
2
*
If PPC Cart screws are reused, customer will have 8 extra screws at
end of installation. Extra screws provided for convenience.
20
10
30
40
50
60
70
