JWDIW Series Installation Instructions
4
Installation
The following procedure assumes that a Chief Listed Model
MAC501 In-Wall accessory has previously been installed
following the installation instructions provided by the
manufacturer. If a MAC501 is not installed or there are any
other questions regarding the installation of this accessory,
immediately contact a Chief Customer Service representative.
WARNING: IMPROPER INSTALLATION CAN LEAD TO
MOUNT FALLING CAUSING SEVERE PERSONAL INJURY
OR DAMAGE TO EQUIPMENT! DO NOT deviate from
installation instructions provided. DO NOT substitute
hardware.
The MAC501 is designed to accommodate 4-1/2" of right or left
display offset. This is accomplished by aligning the JWDIW with
either the right hand or left hand hole in the MAC501 bottom
support plate. The bumper mounting bracket is installed on the
side opposite the side used for installing the JWDIW swing arm.
(See Figure 2)

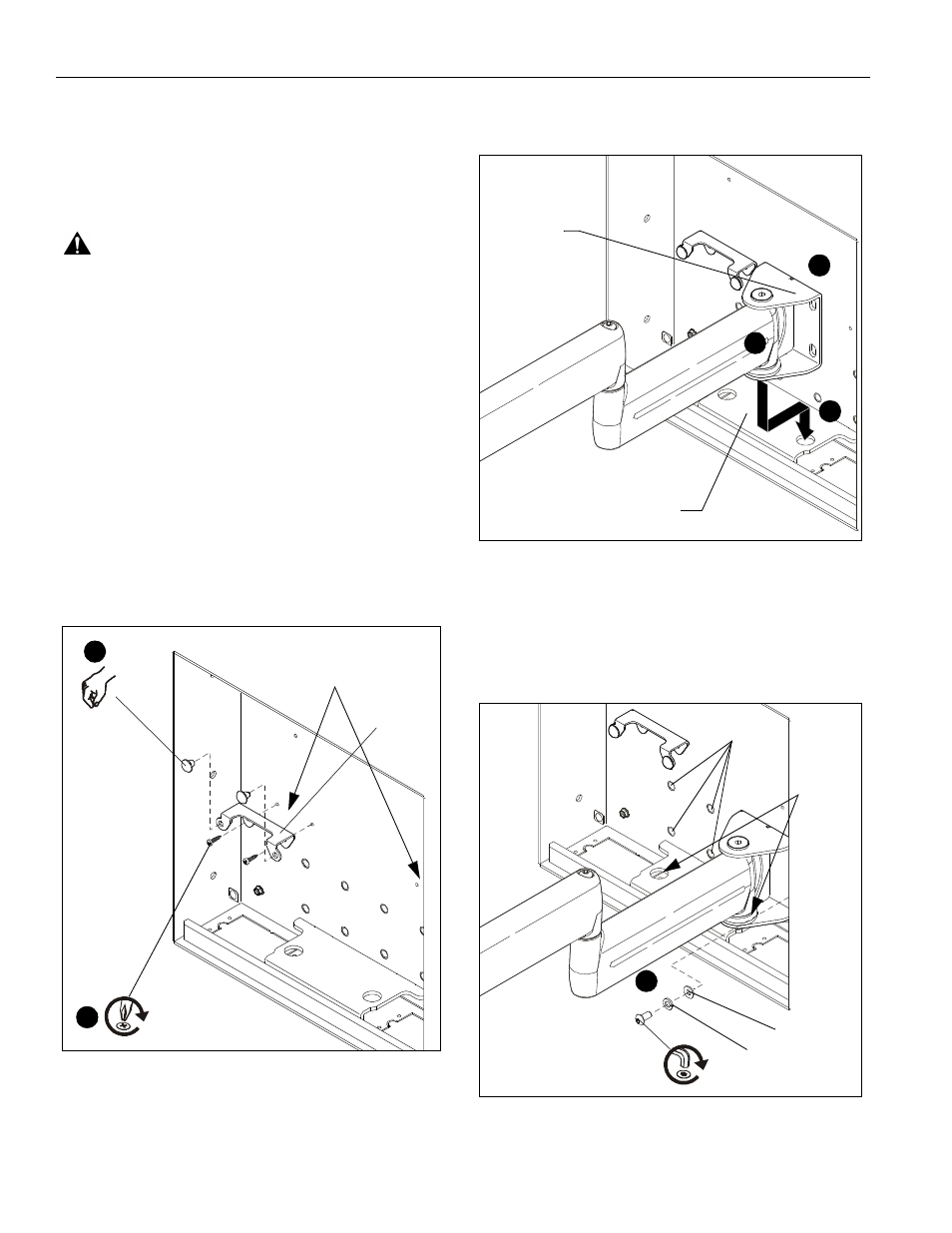

Install Bumper
1. Install two bumpers (G) to bumper mounting bracket (F).
(See Figure 1)
NOTE: A screwdriver may be required to push bumper into
hole in bumper mounting bracket.
2. Secure bumper mounting bracket (F) to MAC501 on
whichever side the arm is going to be retracted, using two
Phillips pan head screws (N). (See Figure 1)
Figure 1
3. Align bottom of swing arm pivot pin with hole in lower
support plate. (See Figure 2)
4. Lower swing arm until pivot pin rests in hole in lower support
plate. (See Figure 2)
5. Align four mounting holes in swing arm mounting bracket
with four mounting holes in MAC501. (See Figure 2)
Figure 2
6. Secure swing arm to MAC501 using four button head cap
screws (C), four lock washers (D) and four flat washers (E).
(See Figure 3)
7. Cover remaining four openings in back of MAC501 with four
screw covers (K). (See Figure 3)
Figure 3
(F) x 1
(G) x 2
(N) x 2
2
1
Secure on
either side
Lower Support Plate
Swing Arm
Mounting
Bracket
4
3
5
(C) x 4
(E) x 4
(D) x 4
6
Secure
on either
side
(K) x 4
