Installation Instructions TPS Series
9
4. With the mounting buttons of the display fully engaged in
the slots of the TPS (A), secure display to the TPS by raising
the Q-Latch flag all the way up to the locked position. (See
Figure 12)
NOTE: If Q-Latch flag does not fully engage, ensure the
mounting buttons are fully seated in the lower part of
the mounting slots.

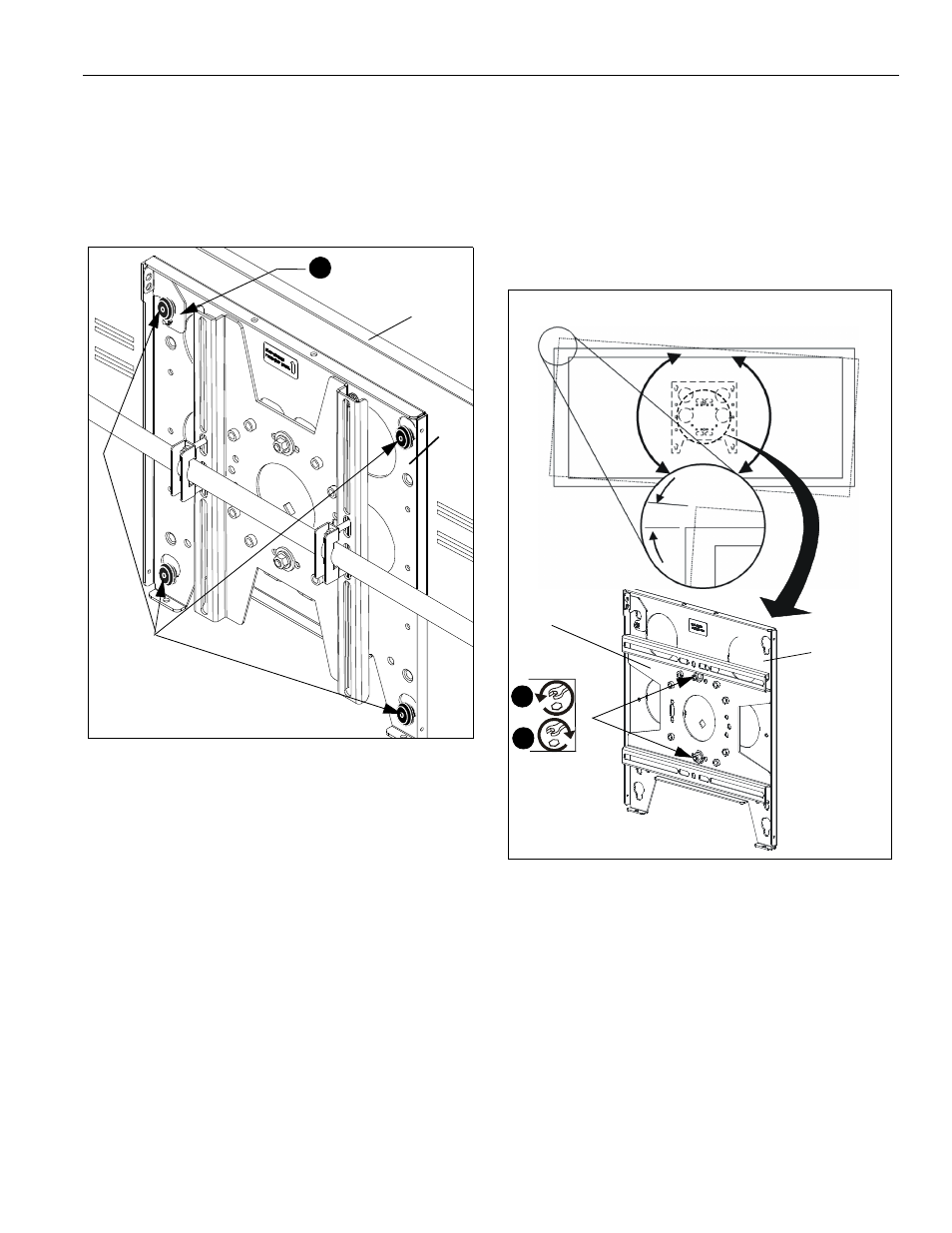

Figure 12
5. Attach all cables to display.
Adjustments
The TPS mount provides for limited roll adjustment to level the
display after installation.
To adjust display roll:
1. Loosen the two roll adjustment nuts in upper and lower
center holes of truss plate. (See Figure 13)
2. Level the display as desired.
3. Tighten the two roll adjustment nuts. (See Figure 13)
Figure 13
Locked 4
(A)
Mounting
Display
buttons in
slots (4)
2 deg.
View from back
Note: Mounting structure and hardware not shown for clarity.
(A)
(B)
1
3
x 2
x 2
