Spring
DC WD Cone
3
3a
I 0533 - 5 GB
3.3 - Adapter mounting
4 - Controls and components
4.1 - Manual distance measurement gauge
This gauge serves to manually measure the distance between the point of application of the counterweight and the
machine.
4.2 - Brake pedal
Allows braking the wheel at the end of the balancing cycle. It is also useful during application of the counterweights.

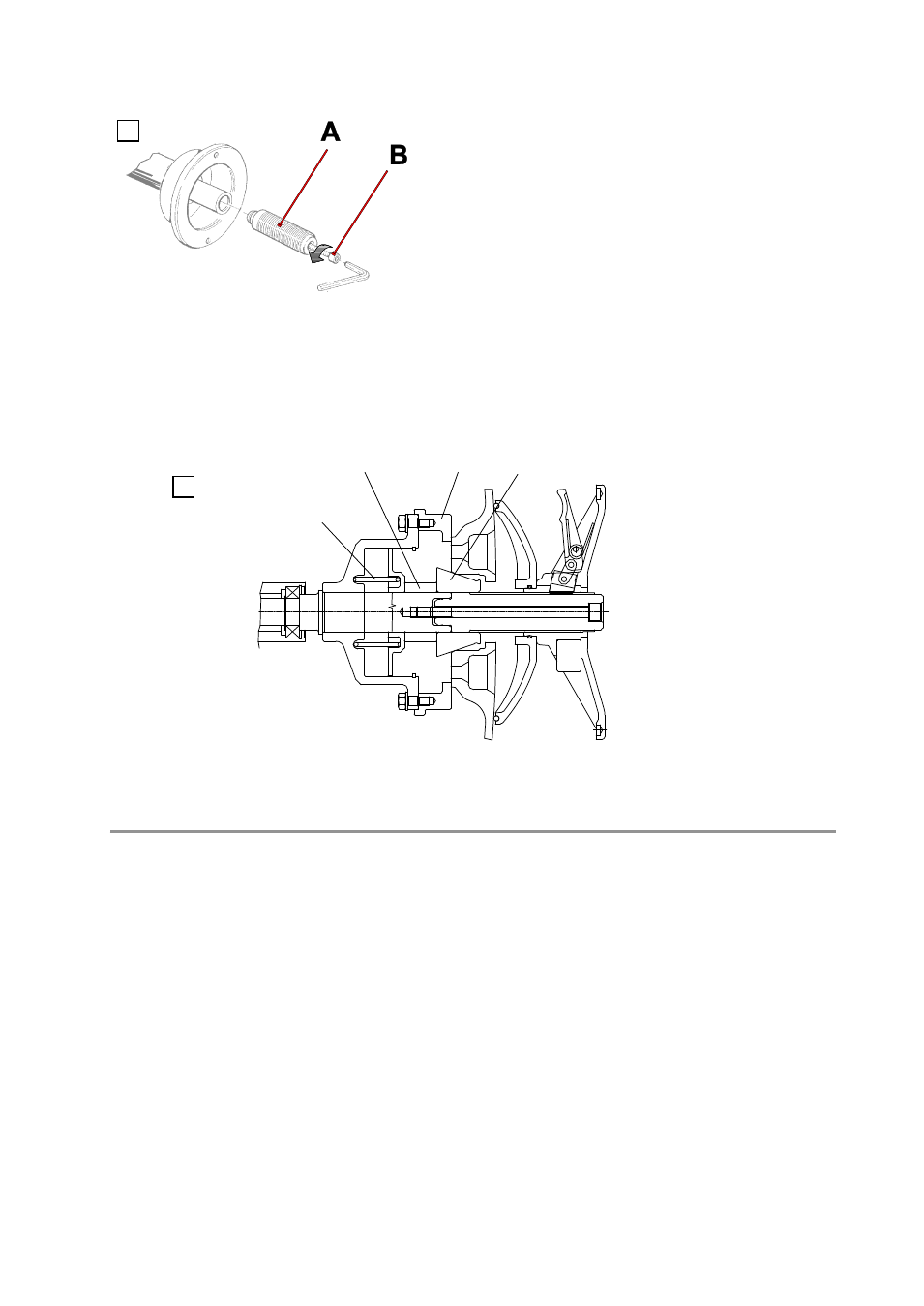

The wheel balancer is supplied complete with cone
flanges for fixing wheels with a central hole. Other
optional adapters can be mounted:
a) Remove the threaded end-piece A after unscrewing
the screw B.
b) Mount the new adapter (see attached sheets).
Note: CAREFULLY CLEAN THE COUPLING
SURFACES BEFORE PERFORMING ANY
OPERATION.
3.4 - WD spacer
When balancing very wide wheels (9”), there is not enough space to turn the distance gauge. To move the wheel
away from the machine side, fit the WD spacer on the flange body and secure it with the standard issue nuts. When
centring the wheel with cone from the inside, mount the DC spacer to obtain spring thrust.
