I 0337 -

3.3 - Flange mounting

4 - Controls and components

4.1 - Manual distance measurement gauge

This gauge serves to manually measure the distance between the point of application of the counterweight and the
machine.

The wheel balancer is supplied complete with cone

flanges

for fixing wheels with a central hole. Other optional

flanges can be mounted:

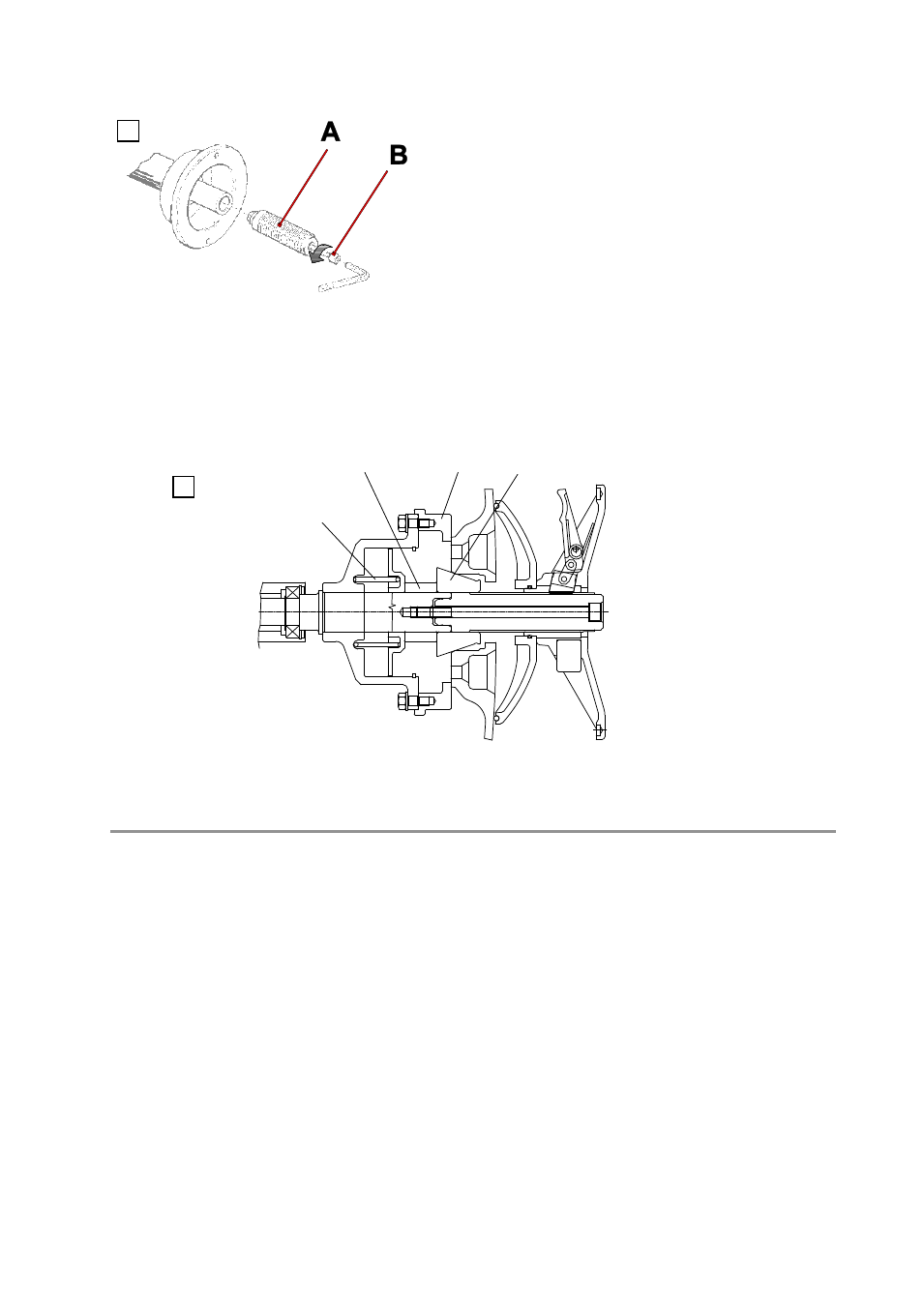

a) Remove the threaded end-piece A after unscrewing

the screw B.

b) Mount the new flange (see attached sheets).

Note: CAREFULLY CLEAN THE COUPLING

SURFACES BEFORE PERFORMING ANY

OPERATION.

3.4 - WD spacer

When balancing very wide wheels (9”), there is not enough space to turn the distance gauge. To move the wheel

away from the machine side, fit the WD spacer on the flange body and secure it with the standard issue nuts. When
centring the wheel with cone from the inside, mount the DC spacer to obtain spring thrust.
