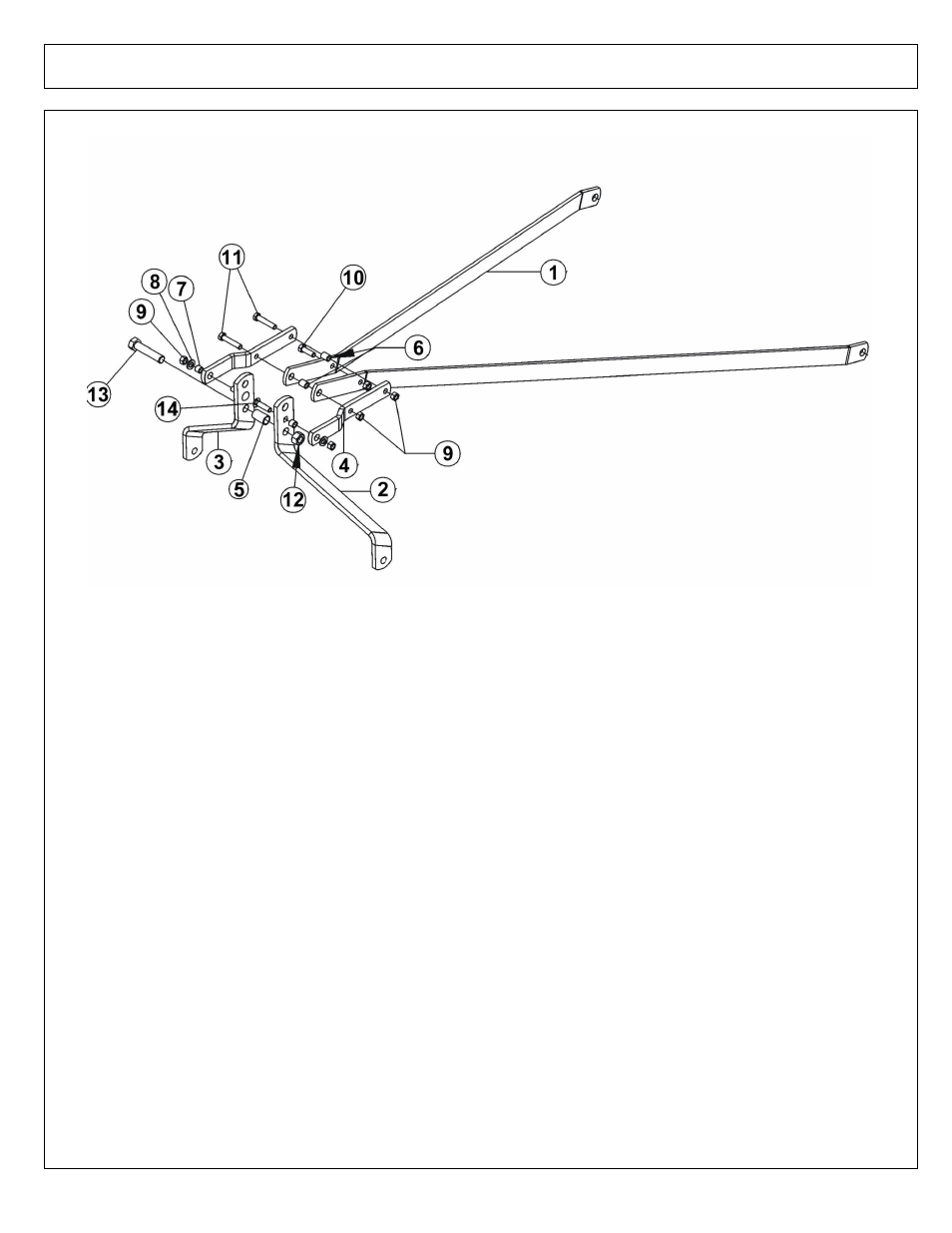

A-FRAME QUICK HITCH ASSEMBLY - RX84
ITEM
PART NO. QTY.
DESCRIPTION
1
00781069
2
FLAT, REAR BRACE
2
00781411
1
FLAT, A-FRAME LH
3
00781410
1
FLAT, A-FRAME RH
4
00781117
2
FLAT, QUICK HITCH TOGGLE
5
0758550031
1
BUSHING
6
00761199
2
SPACER TUBE
7
0732020020
4
BUSHING
8
00756077
10
5/8 HARDENED WASHER
9
00695100
13
NUT,5/8 NC TOPLOCKNUT
10
02845500
1
BOLT, 5/8 X 2
11
00600700
2
HEXB 5/8 NC 3-1/4 PL5
12
02030300
1
NUT, 1" TOPLOCK
13
00750479
1
HEXB 1NC 4-3/4 PL5
14
2101120
2
CARB 5/8 X 2-1/2
