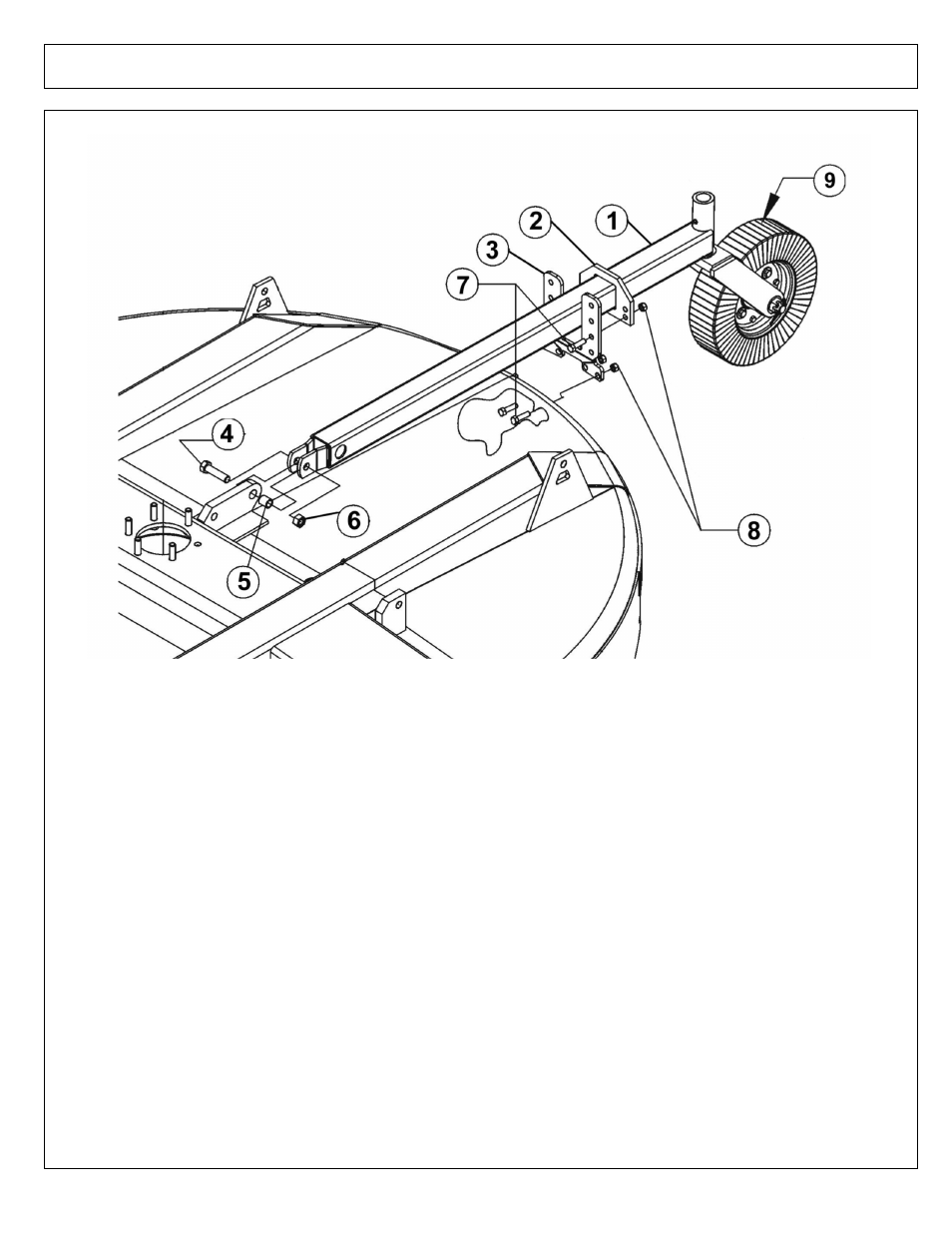

TAILWHEEL ASSEMBLY - RX84
ITEM
PART NO. QTY.
DESCRIPTION
1
00781077
1
WELDMENT, T/W BEAM
2
0585020300
1
BRACKET POSITION
3
00785473
1
MOUNT, T/W BEAM
4
00007800
1
HEXB 3/4 NC3 PL5
5
00781367
1
TUBE BUSHING
6
00037200
1
LOCKNUT 3/4 NC TLM PLC
7
00749130
4
HHCS 1/2-13UNC 1-3/4 PL5
8
00001800
4
TOPLOCKNUT, 1/2-13 NC PL
9
15B2400
4
FLATWASHER NAR 1-1/2 PL
10
00758899
1
PIN COTTER 3/8X2-1/2 PL EXTEND
11
00776220
1
ASY,CASTER FORK & WHEEL
