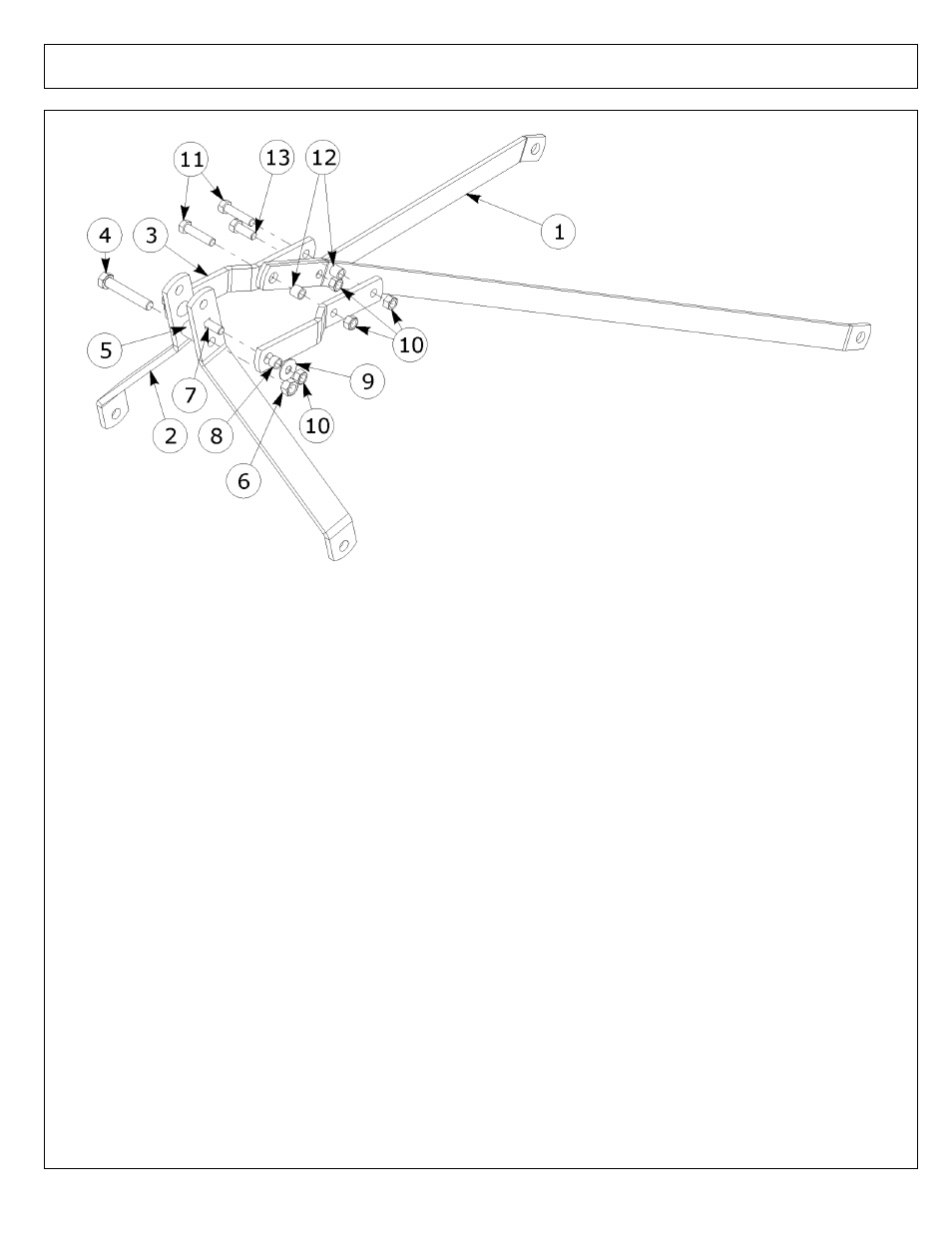

A-FRAME QUICK HITCH ASSEMBLY - RX60, RX72
ITEM
PART NO. QTY.
DESCRIPTION
1
00780585
-
FLAT,REAR BRACE - RX72
00781038
-
FLAT,REAR BRACE - RX60
2
00780582
-
FLAT, A-FRAME - RX72
00780563
-
FLAT, A-FRAME, QUICK HITCH - RX60
3
00780549
-
BAR, BRACE - RX72
00780603
-
BAR, BRACE - RX60
4
00009500
-
BOLT-HEX 3/4 NC 4-1/2 PL5
5
0758550030
-
SPACER
6
00037200
-
NUT TOPLOCK 3/4 NC PLC
7
2101120
-
CARB 5/8 NC X 2-1/2 PL5 - RX72
4905
-
CARB 5/8-11 NC 2 PL5 - RX60
8
0732020020
-
BUSHING - RX72
523012
-
BUSHING, ORDER 780 MIN HT - RX60
9
00756077
-
WASHER,5/8 HARDENED
10
00695100
-
NUT,TOPLOCK 5/8 NC PLB
11
02845600
-
HEXB 5/8 NC 3 PL5 - RX72
00703200
-
HHCS 5/8 NC 2 3/4 PL5 - RX60
12
00780592
-
BUSHING, A-FRAME TOGGLE
13
02845500
-
HEXB 5/8 NC 2 PL5
