Use and maintenance manual Rev. 10-2013
ENGLISH
Machine description
2.1
PURPOSE
The C71/2SE EVO is used to balance the wheels of cars,
vans, 4-WD, motorcycles and scooters weighing less than
75 Kg. It can be operated in the temperature range of 0°
to + 45°C.
The machine can oper
ate only on flat non resilient floor.
To lift the machine, lever only on the base where the 3
support points are located. never, under any circustance,
apply force to other points such as the spindle, head, or
accessory shelf. It functions properly without having to
fasten it to the floor with wheels weighing up to 35 kg; for
heavier wheels, fasten it at the points indicated. Do not
mount anything other than motorbike, car or truck tyres
on the wheel balancer.
Thanks to the new and exclusive VDD (Virtual Direct Drive)
system, reliable unbalance measurements can be made
in a short time, almost half the time of the cycle used with
respect to other balancers in this range.
The main features include:
▪ machine settings menu.
▪ optimisation of tyre and rim unbalance.
▪ static programme, ALUS; SPLIT; unbalance optimiza-
tion; indication of exact correction weight position; self
diagnostics; self calibration.
▪ automatic minimisation of static unbalance
▪ wheel locking
▪ laser for weight application at 5 o’clock
▪ automatic width (option)
2.2
TECHNICAL SPECIFICATIONS
The following data refers to the balancer in its standard
configuration.
Single-phase power supply
115 / 230 V 50/60 Hz
Protection class
IP 54
Max.power consumption
0,15 Kw
Balancing speed
100
min
-1
Cycle time for wheel
4.7 sec. (5 3/4”x14”) 15 Kg.
Measurement uncertainty
1 g
Average noise
< 70 dB (A)
Rim width setting range
1.5” ÷ 20” or 40 ÷ 510 mm
Diameter setting range
10” ÷ 30” or 265 ÷ 765 mm
Min/max. compressed air pressure
7 ÷ 10 Kg/cm
2
approx. 0.7 to 1 Mpa;
approx. 7 to 10 BAR;
approx. 105 to 145 PSI.
Maximum wheel weight
< 75 Kg.
Machine weight
130 Kg.

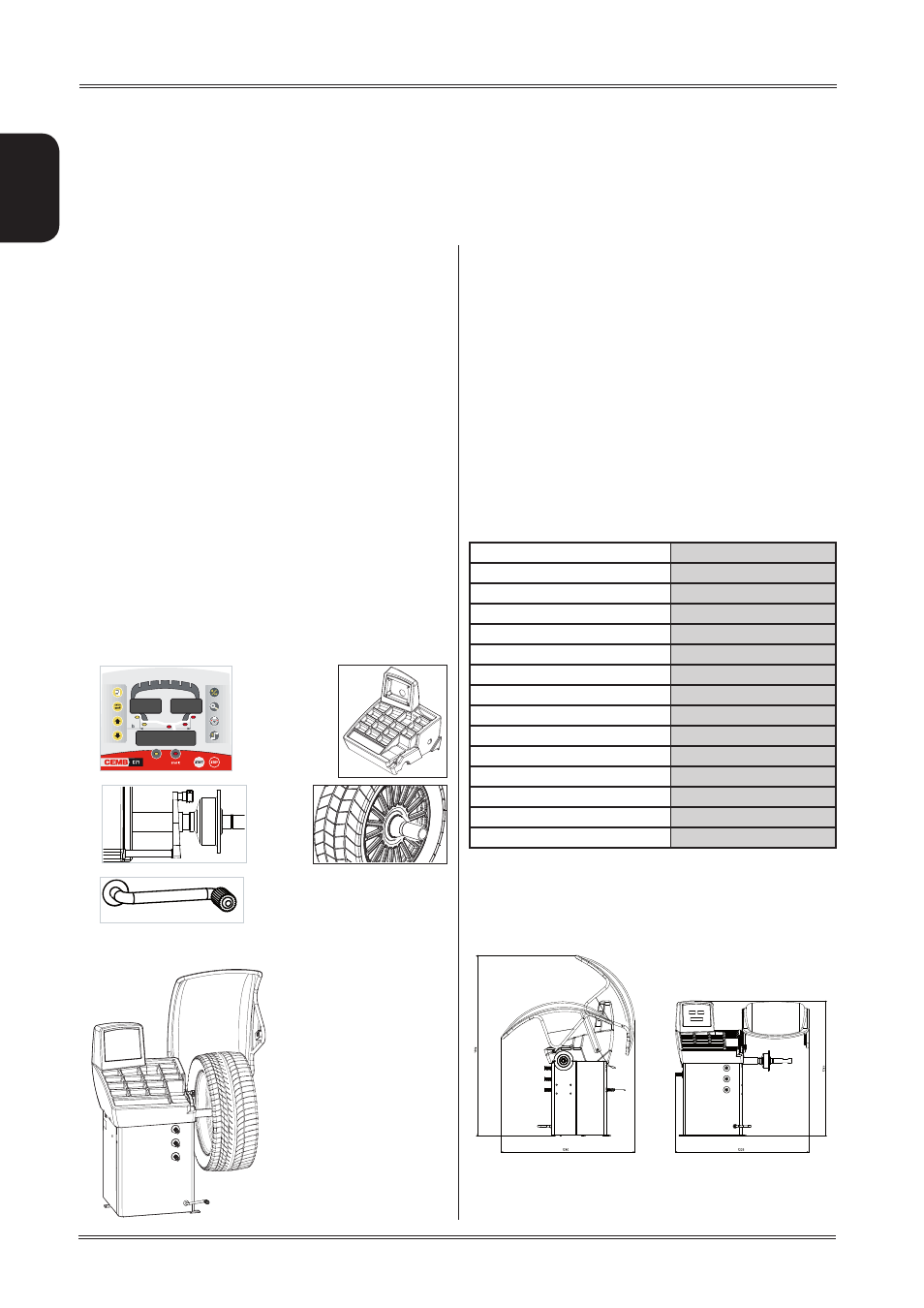

2.3 DIMENSIONS
2. Machine description
1. CONTROL PANEL
2. WEIGHT-TOOL HOLDER
3. AUTOMATIC GAUGE
4. COLLAR
5. BRAKE/BP PEDAL
