Hunter 99050, 99051,99052, 99053, 99054, 99055 Decorative Low Profile Integrated Kit - Manual (Page 8)

MA007-01 • 07/26/13
1.888.830.1326
8

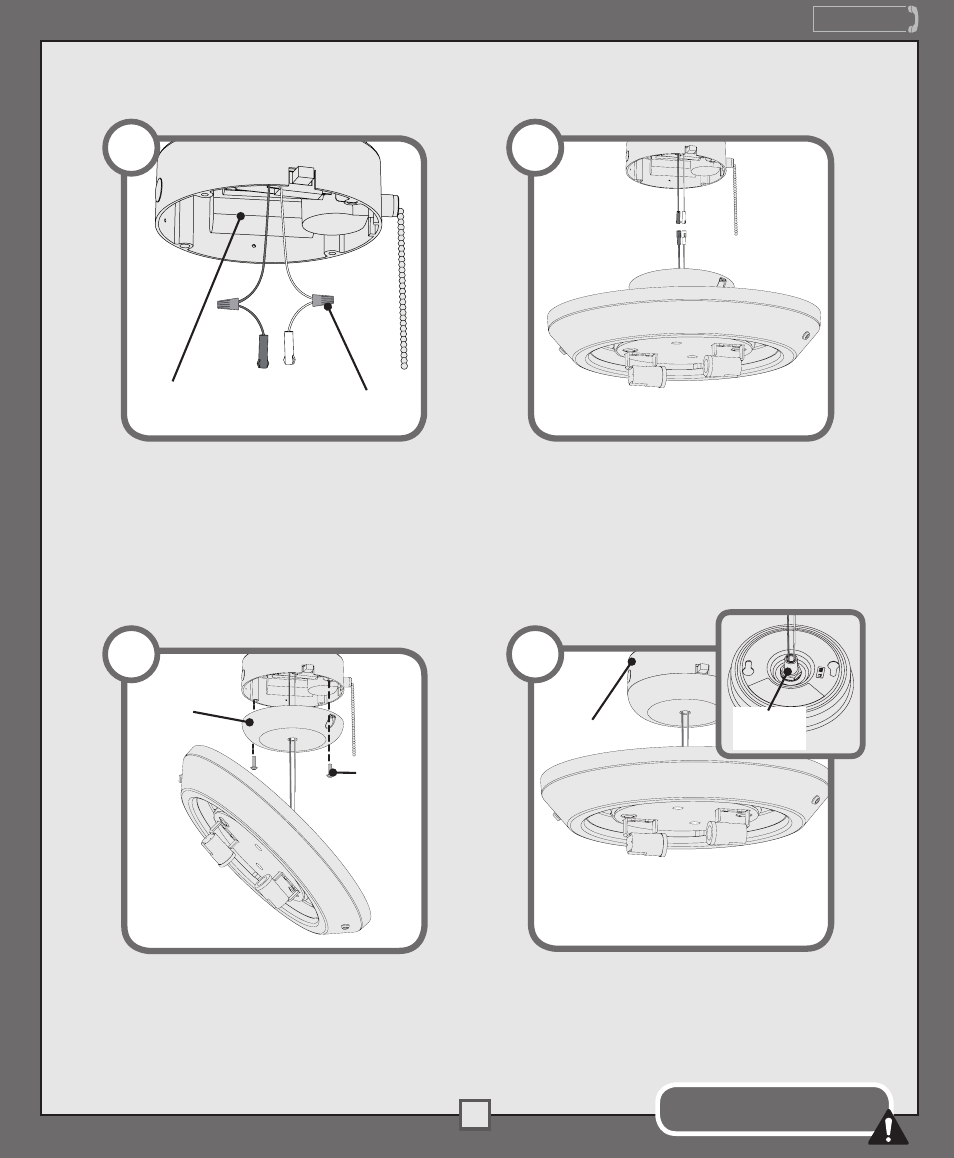

TYPE-C ASSEMBLY INSTRUCTIONS
Feed the wires through the center hole in
the switch housing. Then using the single
pin connectors, connect the black or blue
wire from the fan to the black wire from
the light kit. Connect the white wire from
the fan to the white wire from the light kit.
Lift the lower switch housing up so
that the screw holes line up with the
holes in the upper switch housing.
Install the switch housing screws and
tighten securely.
Lift the light kit up, tucking the wires into
the hole in the switch housing. Install the
center stem of the light kit into the lower
switch housing by turning the threaded
rod clockwise into the threaded hole.
Continue turning until tight.
Upper
Switch
Housing
1
3
2
4
Threaded
Rod
Lower
Switch
Housing
Switch
Housing
Screw
Wire
Connector
Switch
Housing
If your fan does not have pin connectors
on the wires coming from the switch
housing, install the wiring harness
provided. Using the provided wire
connectors connect the white wire from
the fan to the white wire from the wire
harness and connect the black or blue
wire from the fan to the black wire from
the wire harness.
Do not allow the light kit to hang
only by the wire connections!”
