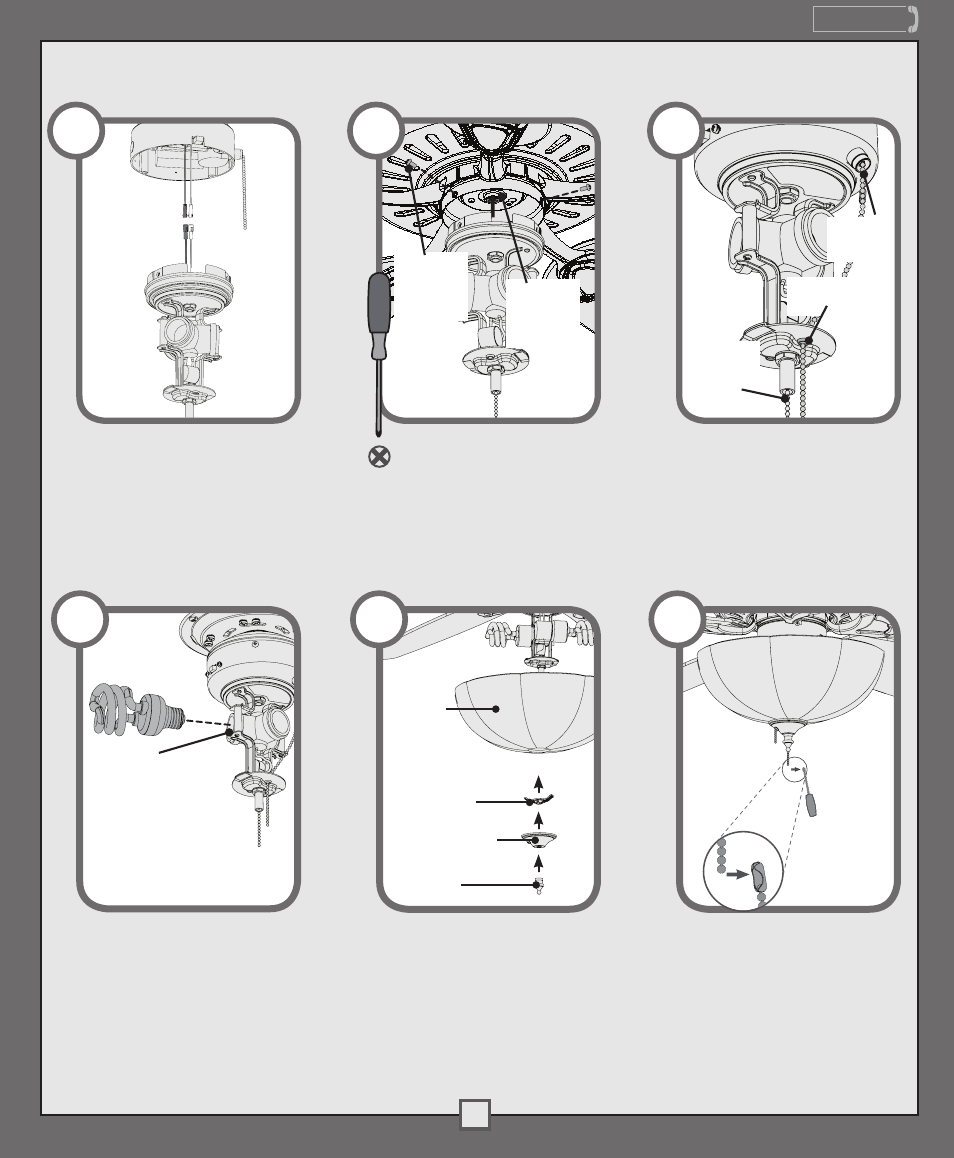

TYPE-B ASSEMBLY INSTRUCTIONS (CONTINUED)
Using the single pin connectors,
connect the black or blue wire
from the fan to the black wire
from the light kit. Connect the
white wire from the fan to the
white wire from the light kit.
Bad Wolf
4
Installing the Pull chain
pendant - Attach the pull
chain pendants to the end
of the short chains coming
from the switch housing and
the light kit. Turn on power.
Your installation is complete!
9
Installing the globe - Press the globe and
globe keeper flush against the metal plate.
Thread the light pull chain through the hole
in the center of the finial cap and thread
the fan pull chain through the hole in the
side of the cap. Finally, thread only the light
pull chain through the hole in the finial and
screw the finial onto the threaded rod.
Globe
Globe
Keeper
Finial Cap
Finial
8
Installing the bulb - Install
a bulb into each socket.
When necessary, replace
bulbs with bulbs of same
type and wattage.
Socket
7
If necessary, attach the
extension chain provided to
the fan pull chain coming from
the switch housing. Then feed
the end of the extension chain
through the grommeted hole
in the light kit.
Grommeted
Hole
Light Pull
Chain
Fan Pull
Chain
6
Lift the light kit assembly
up so that the screw holes
in the lower switch housing
line up with the holes in the
upper switch housing. Install
the switch housing screws
and tighten securely.
Upper
Switch
Housing
Switch
Housing
Screw
5
