MA009-01 • 08/02/13

1.888.830.1326

4

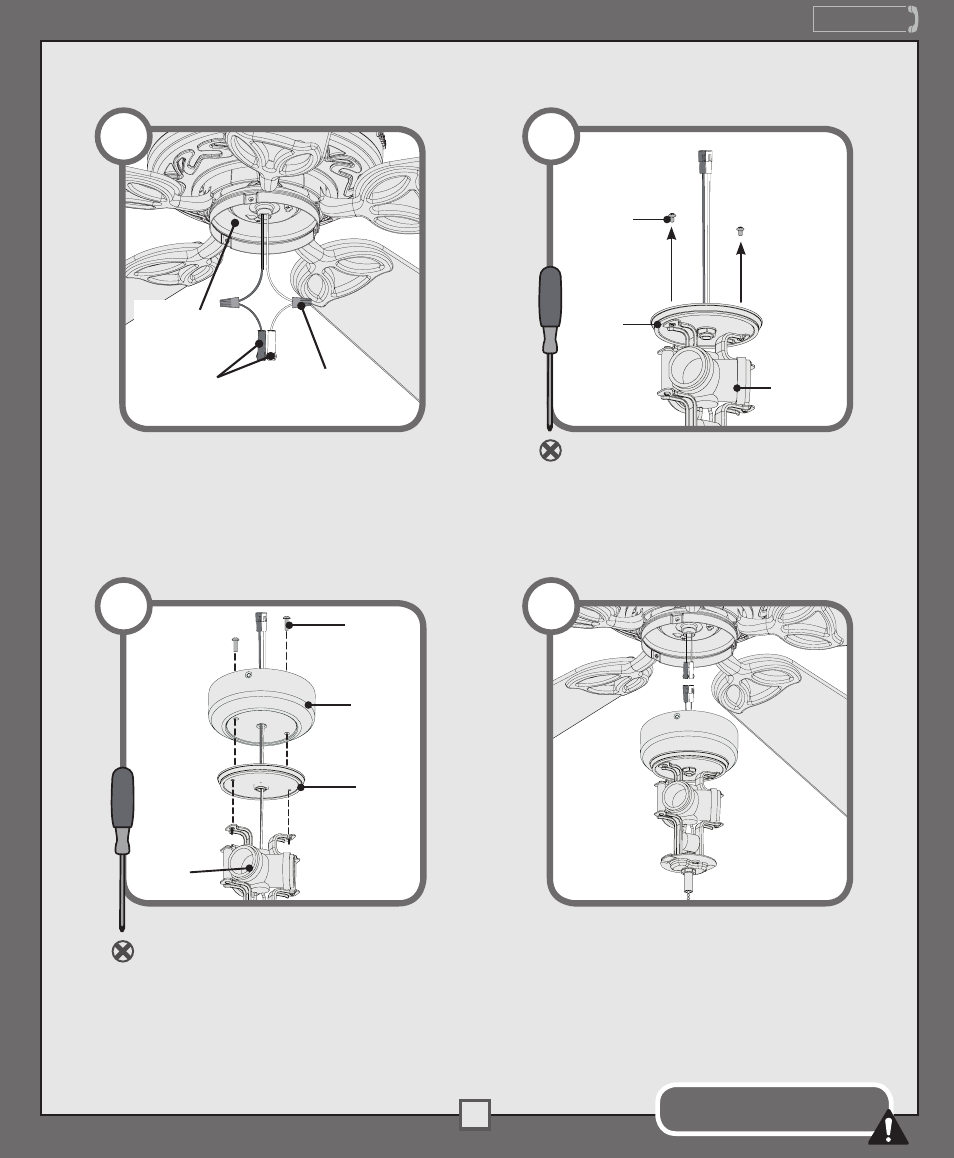

TYPE-A ASSEMBLY INSTRUCTIONS

Do not allow the light kit to hang
only by the wire connections!

If your fan does not have pin connectors on

the wires coming from the switch housing,

install the wiring harness provided. Using

the provided wire connectors connect the

white wire from the fan to the white wire

from the wire harness and connect the

black or blue wire from the fan to the black

wire from the wire harness.

Wire

Connector

Switch

Housing

1

Using the single pin connectors, connect

the black or blue wire from the fan to the

black wire from the light kit. Connect the

white wire from the fan to the white wire

from the light kit.

4

Remove the screws attaching the light

kit cap to the light fixture.

Light Kit

Screw

Light

Kit Cap

2

Wiring

Harness

Feed the light kit wires through the

center hole in the switch housing. Then,

attach the switch housing to the light kit

by installing the longer light kit screws,

found in the hardware bag, through the

top of the switch housing, through the

light kit cap, and into the light fixture.

Light Kit

Screw

Switch

Housing

Light

Kit Cap

Light

Fixture

3

Light

Fixture
