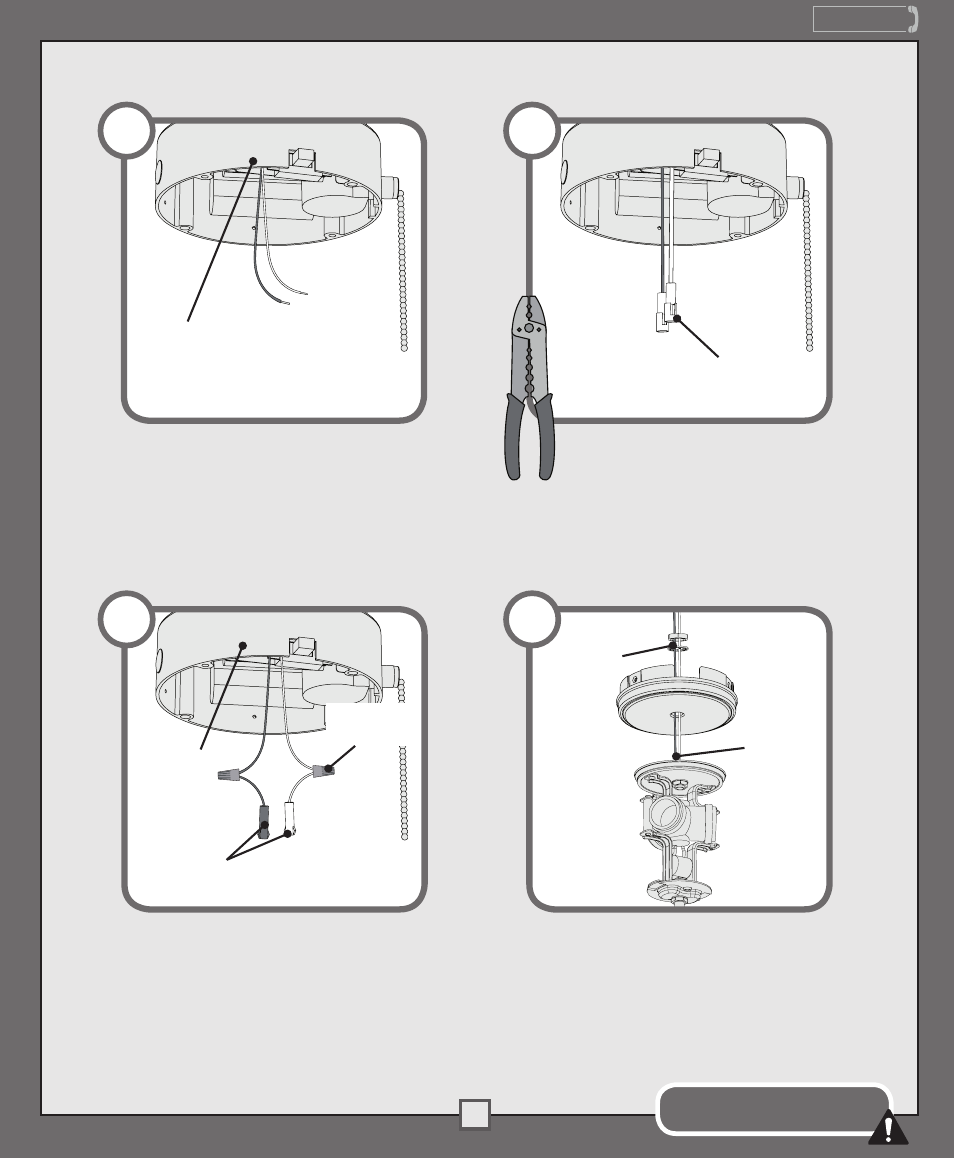

TYPE-B ASSEMBLY INSTRUCTIONS

Do not allow the light kit to hang
only by the wire connections!

Feed the wires through the switch

housing cap, washer, and nut. Then

install the switch housing cap by twisting

clockwise onto the threaded rod. Install

the washer and nut onto threaded rod

and tighten securely.

Threaded

Rod

Washer

and Nut

3

Wire

Connector

Switch

Housing

2

Using the provided wire connectors, found in

the hardware bag, connect the white wire from

the fan to the white wire from the wire harness

and connect the black or blue wire from the fan

to the black wire from the wire harness.

Wiring

Harness

If your fan does not have pin connectors on

the wires coming from the switch housing,

go to step 2.

Switch

Housing

If the fan has pin connectors,

cut the wires just above the fan

pin connectors with wire cutters.

Discard the pin connectors. Go

to step 2.

Pin

Connectors

OR

1a

1b
