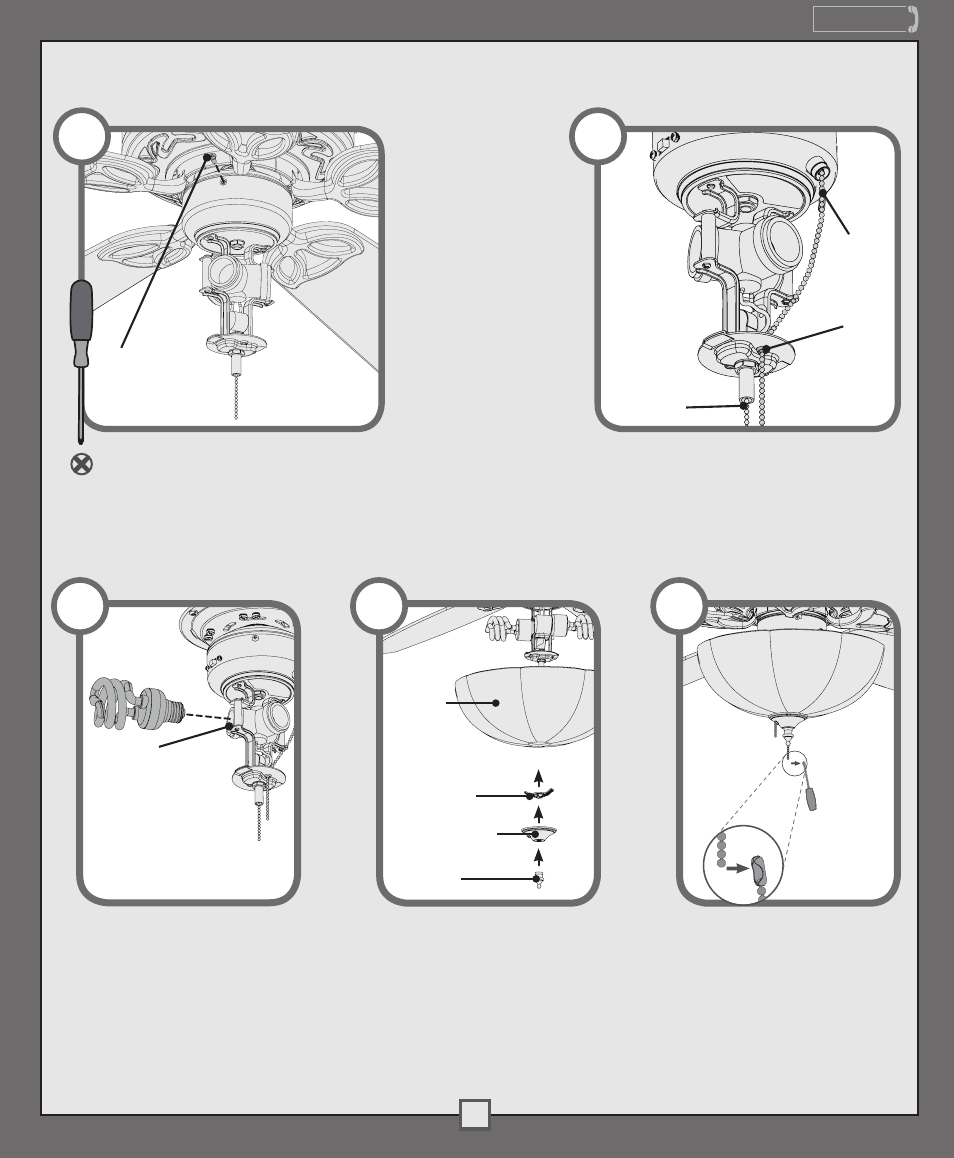

TYPE-A ASSEMBLY INSTRUCTIONS (CONTINUED)

Installing the Pull chain

pendant - Attach the pull

chain pendants to the end

of the short chains coming

from the switch housing and

the light kit. Turn on power.

Your installation is complete!

9

Installing the globe - Press the globe and

globe keeper flush against the metal plate.

Thread the light pull chain through the hole

in the center of the finial cap and thread

the fan pull chain through the hole in the

side of the cap. Finally, thread only the light

pull chain through the hole in the finial and

screw the finial onto the threaded rod.

Globe

Globe

Keeper

Finial Cap

Finial

8

Installing the bulb - Install

a bulb into each socket.

When necessary, replace

bulbs with bulbs of same

type and wattage.

Socket

7

If necessary, attach the extension chain

provided to the fan pull chain coming

from the switch housing. Then feed the

end of the extension chain through the

grommeted hole in the light kit.

Grommeted

Hole

Light Pull

Chain

Fan Pull

Chain

6

Lift the light kit assembly up so that

the screw holes in the lower switch

housing line up with the holes in the

upper switch housing. Install the switch

housing screws and tighten securely.

Switch

Housing

Screw

5
